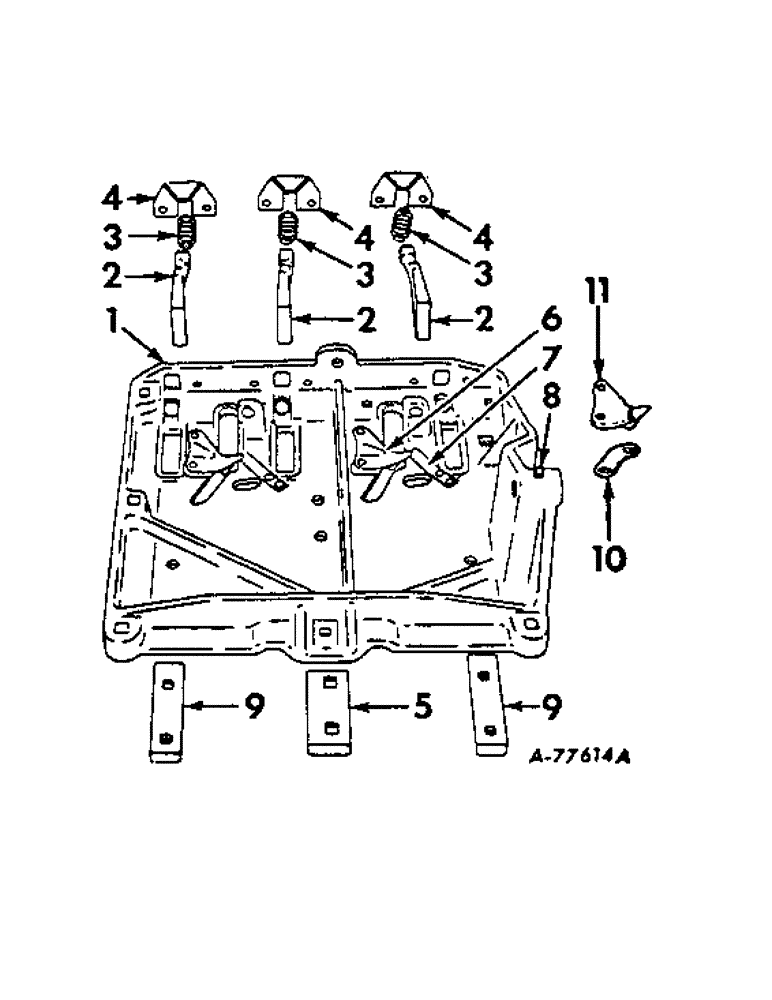

Запчасти Case IH 57 (A-31) - KNOTTER BASE PLATE

1

666658R1

PLATE, knotter base

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

4шт.

BOLT, 1/2-13 x 1-1/2 No. 3 plow

1шт.

BOLT, 1/2-13 x 2-1/4 No. 3 plow

4шт.

NUT, 3/8-16 hex.

4шт.

NUT, 1/2-13 hex.

5шт.

WASHER, 3/8 med lock

4шт.

WASHER, 1/2 med lock

5шт.

2

666659R1

RETAINER, top hay

3шт.

PIN, 1/8 x 3/4 cot.

3шт.

Q3534

HEADED PIN,9.53mm OD x 38.1mm L

PIN, 3/8 x 1-1/2 std-hd

3шт.

3

665192R1

SPRING

top hay retainer

3шт.

4

663578R91

BRACKET ASSY, top hay retainer

3шт.

BOLT, 3/8-16 x 3/4 hex-hd mach

6шт.

WASHER, 3/8 med lock

6шт.

5

495930R1

WEDGE

hay retainer broad

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16-14 x 1-1/4 znd short sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

6

495412R91

FINGER W/RIVETS, breast plate

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.

7

662112R1

SPRING

twine retainer

2шт.

104166

SCREW

RIVET, 1/4 x 5/8 csk-hd

4шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tap. str lub

1шт.

9

495929R2

WEDGE

hay retainer upper

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 znd short sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

668974R1

REINFORCEMENT

STRIP, base plate wear, see Note A

2шт.

113225

RIVET,Csk, 3/16" x 9/16"

3/16 x 9/16 90 deg csk-hd

4шт.

11

668975R12

GUIDE

FINGER ASSY, breast plate, see Note A

2шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.
