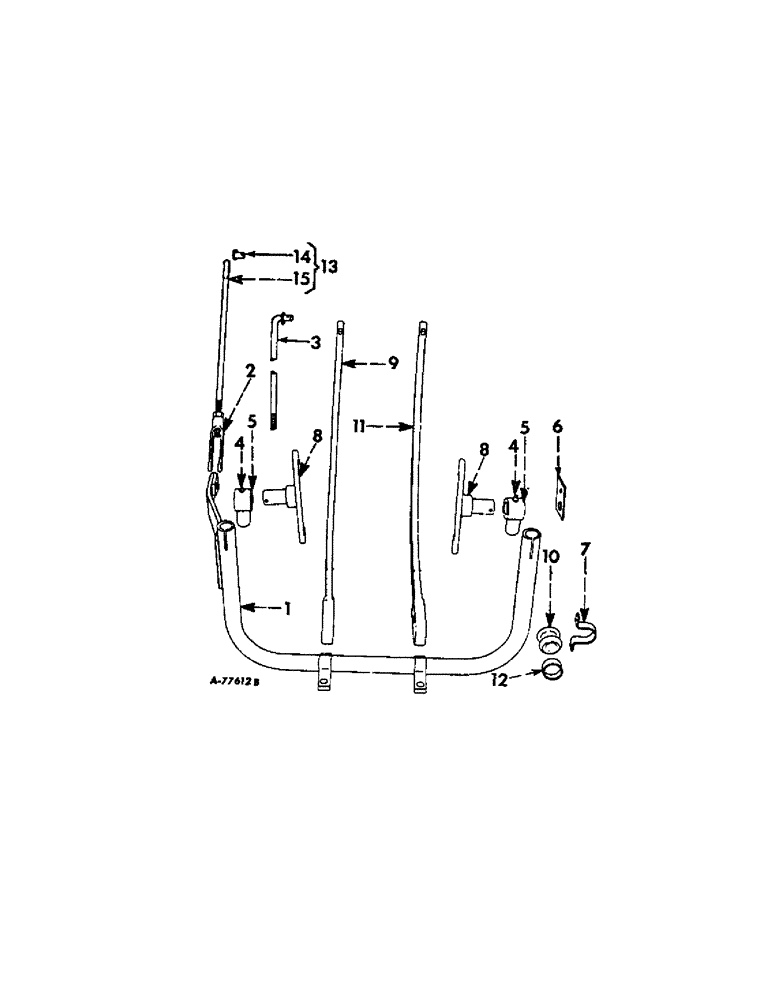

Запчасти Case IH 57 (A-30) - TWINE NEEDLES AND NEEDLE PITMAN

1

663581R92

PIPE ASSY, needle tie

1шт.

2

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8-18 x 4-15/16 hv adj rod end

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, , Rod end 5/8" x 1.844"

1шт.

3

662282R1

PITMAN

needle, 004394 and below

1шт.

NUT, 5/8-18 hex.

1шт.

PIN, 3/16 x 1 cot.

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

4

271284

YOKE

1/8-27 65 deg angle lub

2шт.

5

662029R1

PIVOT

BEARING, needle pivot

2шт.

BOLT, 3/8-16 x 1-3/4 hex-hd mach

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

6

663718R1

CLIP, bale counter

1шт.

7

11792P

HOLDER

twine guide

2шт.

BOLT, 1/4-20 x 3/4 hex-hd mach

2шт.

BOLT, 1/4-20 x 2 hex-hd mach

2шт.

NUT, 1/4-20 hex.

4шт.

WASHER, 1/4 med lock

4шт.

8

668723R1

PIVOT, needle

2шт.

BOLT, 7/16-14 x 1-1/4 short sq-nk crg

4шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 lock

4шт.

PIN, 3/16 x 1-3/4 cot.

2шт.

WASHER, 7/16 med lock

4шт.

F18476

WASHER

1-9/32 x 1-3/4 x 16 ga, (or as required)

4шт.

9

663187R2

NEEDLE BEARING CAGE

NEEDLE, left twine

1шт.

SCREW, 1/2-13 x 1-1/2 hex-hd cap

2шт.

WASHER, 1/2 med lock

2шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

10

11833PB

GUIDE

twine

4шт.

11

665719R91

NEEDLE, right twine

1шт.

179887

CABLE

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

455150R1

WASHER

17/32 x 1-1/4 x 1/4

4шт.

12

668944R1

BAND, twine guide

1шт.

13

201667C91

PITMAN

ROD ASSY, needle Pitman, 004395 and up

1шт.

121358

YOKE

5/8-18 znd hex.

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

201669C1

PIN

needle Pitman, 004395 and up

1шт.

15

(Not serviced separately), order 201667C91

1шт.
