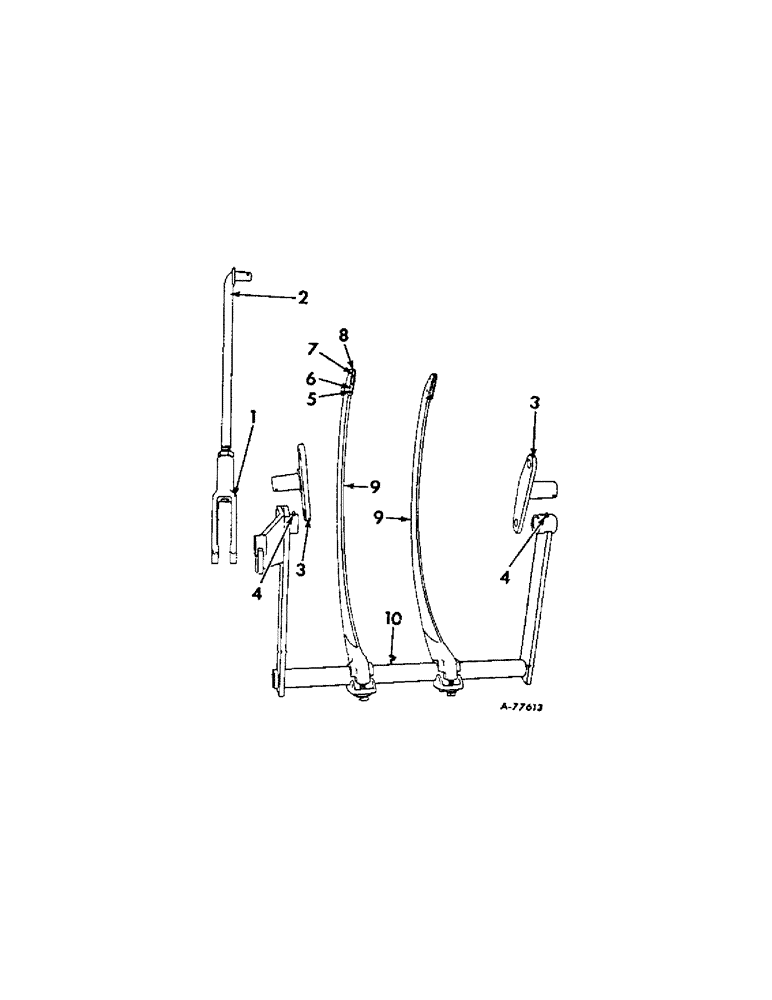

Запчасти Case IH 57 (A-30[A]) - WIRE NEEDLES AND NEEDLE PITMAN

1

662032R2

CONNECTOR, ELEC

CONNECTOR, needle Pitman

1шт.

PIN, 3/16 x 1-1/4 cot.

1шт.

663047R2

PIN

3/4 x 2-5/32 rod end

1шт.

2

663430R1

ROD, needle Pitman

1шт.

218443

NUT

3/4-10 hex. jam

1шт.

PIN, 3/16 x 1-1/4 cot.

1шт.

3

668724R1

PIVOT, needle

2шт.

BOLT, 7/16-14 x 1-1/4 short sq-nk cr

4шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 lock

4шт.

PIN, 3/16 x 1-3/4 cot.

2шт.

WASHER, 7/16 med lock

4шт.

F18476

WASHER

1-9/32 x 1-3/4 x 16 ga (or as required)

4шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

2шт.

5

667415R1

BUSHING

needle sheave

2шт.

46-413

RIVET,Csk, 1/4" x 3/4"

1/4 x 13/16 90 deg csk-hd

2шт.

6

667412R1

ROLL

SHEAVE, needle

2шт.

7

667414R1

BUSHING

needle tip

2шт.

102688

RIVET,Csk, 3/16" x 13/16"

3/16 x 13/16 csk-hd

2шт.

8

667413R1

SPACER

PIECE, needle tip wearing

2шт.

9

667437R11

NEEDLE BEARING CAGE

NEEDLE ASSY, wire

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

10

664537R91

PIPE ASSY, needle tie

1шт.
