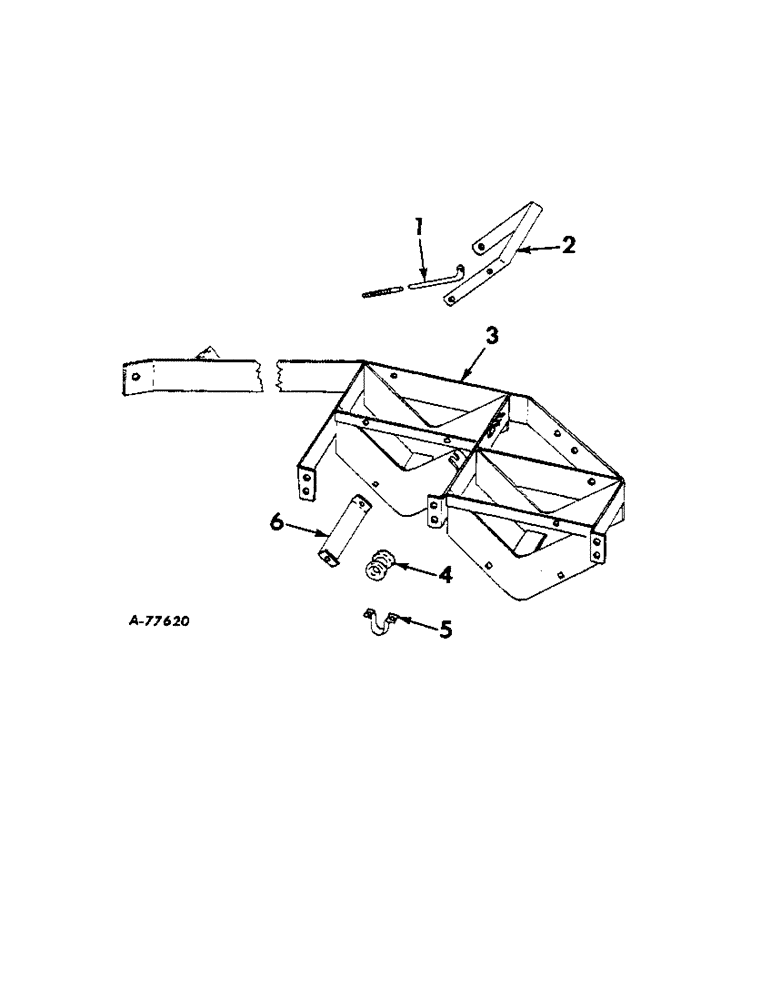

Запчасти Case IH 57 (A-28) - TWO COIL WIRE CAN

1

667858R1

ROD

retainer

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 Type A wing

2шт.

PIN, 3/32 x 3/4 cot.

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

2

667879R1

STRAP

retainer

2шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

4шт.

625891R1

PIN,1/4" x 5/8"

1/4 x 5/8 std-hd

4шт.

97865H

WASHER

9/32 x 7/8 x 16 ga

5шт.

3

668669R91

CONTAINER ASSY, two coil wire

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

6шт.

NUT, 3/8-16 hex.

6шт.

WASHER, 3/8 med lock

6шт.

4

11833PB

GUIDE

wire

1шт.

5

11792P

HOLDER

wire guide

1шт.

BOLT, 1/4-20 x 3/4 hex-hd mach

2шт.

NUT, 1/4-20 hex.

2шт.

WASHER, 1/4 med lock

2шт.

6

667859R1

PLATE

coil support

4шт.

BOLT, 3/8-16 x 3/4 short sq-nk crg

8шт.

NUT, 3/8-16 hex.

8шт.

WASHER, 3/8 med lock

8шт.
