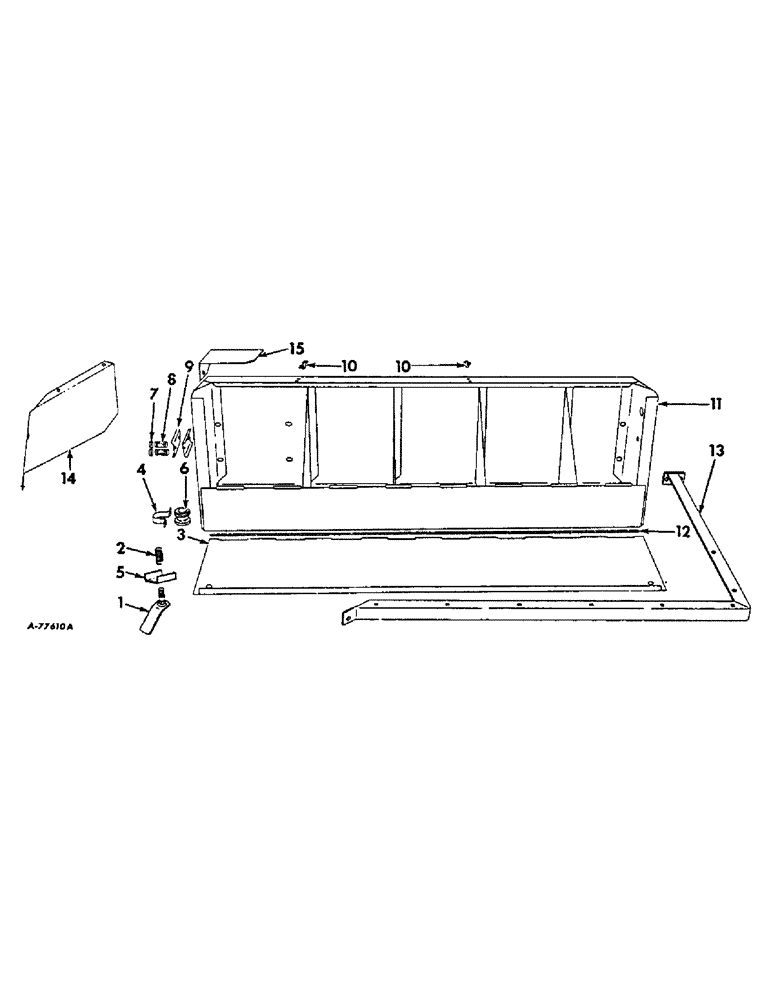

Запчасти Case IH 57 (A-27) - TWINE CHEST AND SUPPORT

1

668035R11

LATCH

ASSY, twine can door

2шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

2шт.

2

354746R1

SPRING

twine can fastener

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 lock

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

3

663508R1

DOOR, twine can

1шт.

4

11792P

HOLDER

twine guide

1шт.

BOLT, 1/4-20 x 3/4 hex-hd mach

2шт.

NUT, 1/4-20 hex.

2шт.

WASHER, 1/4 med lock

2шт.

5

668036R1

PAWL

twine can fastener

2шт.

6

11833PB

GUIDE

twine

1шт.

7

B32120

WASHER

twine roller spring cup

2шт.

665621R1

NUT, 1/4-20 wing

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

495058R1

BOLT (SPREADER)

BOLT, 1/4 x 3 znd sq-nk crg

2шт.

8

76DS

SPRING

twine tension roller

2шт.

9

662380R1

GUIDE

PLATE, twine tension

2шт.

10

655108R2

GUIDE

twine

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 znd short sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

8шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

125681

SCREW, 5/16-18 x 5/8 cd-pltd truss hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

663719R92

CONTAINER ASSY, twine

1шт.

12

662409R1

ROD

twine can door pivot

1шт.

PIN, 3/32 x 1/2 cot

2шт.

WASHER, 9/32 x 5/8 x 16 ga

2шт.

13

663513R91

FRAME ASSY, twine container

1шт.

BOLT, 5/16-18 x 1 cd-pltd hex-hd mach

1шт.

BOLT, 3/8-16 x 1 cd-pltd hex-hd mach

2шт.

NUT, 5/16-18 cd-pltd hex.

1шт.

NUT, 3/8-16 cd-pltd hex.

2шт.

WASHER, 5/64 med lock

1шт.

WASHER, 3/8 med lock

2шт.

14

664543R1

SHIELD, twine can

1шт.

NUT, 5/16-18 hex.

2шт.

125678

BOLT

SCREW, 5/16-18 x 5/8 truss-hd mach

2шт.

WASHER, 5/16 med lock

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

15

668988R1

SHIELD, auger drive coupling

1шт.
