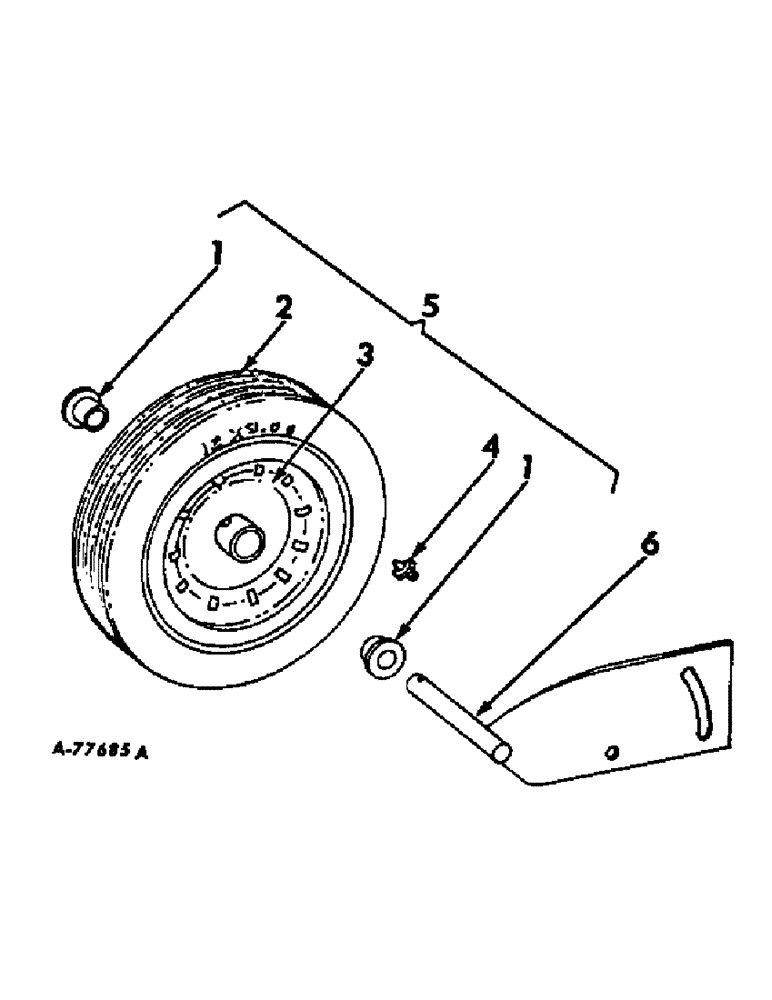

Запчасти Case IH 57 (A-26) - PICKUP WHEEL, RUBBER, WHEN ORDERED

1

669006R1

BUSHING

BEARING, pickup wheel

2шт.

2

669005R1

TYRE/TIRE

TIRE, pickup wheel semi-pneumatic

1шт.

3

669004R91

WHEEL

ASSY, pickup

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, .191 str drive type lub, used with Ohio Rubber Co. and Geneva Wheel Co. only

1шт.

4

20691R1

FITTING,3/16" x .47" lg, Drive

.191 str drive type lub, used with Dico Wheel Co. only

1шт.

5

669003R91

WHEEL

W/SEMI-PNEUMATIC TIRE, pickup

1шт.

6

669020R91

BRACKET ASSY, pickup wheel

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 cd-pltd hex-hd mach

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

178375

WASHER, 25/32 x 1-1/4 x 16 ga C-Z

1шт.

131017

WASHER

13/16 x 1-1/2 x 10 ga C-Z

1шт.
