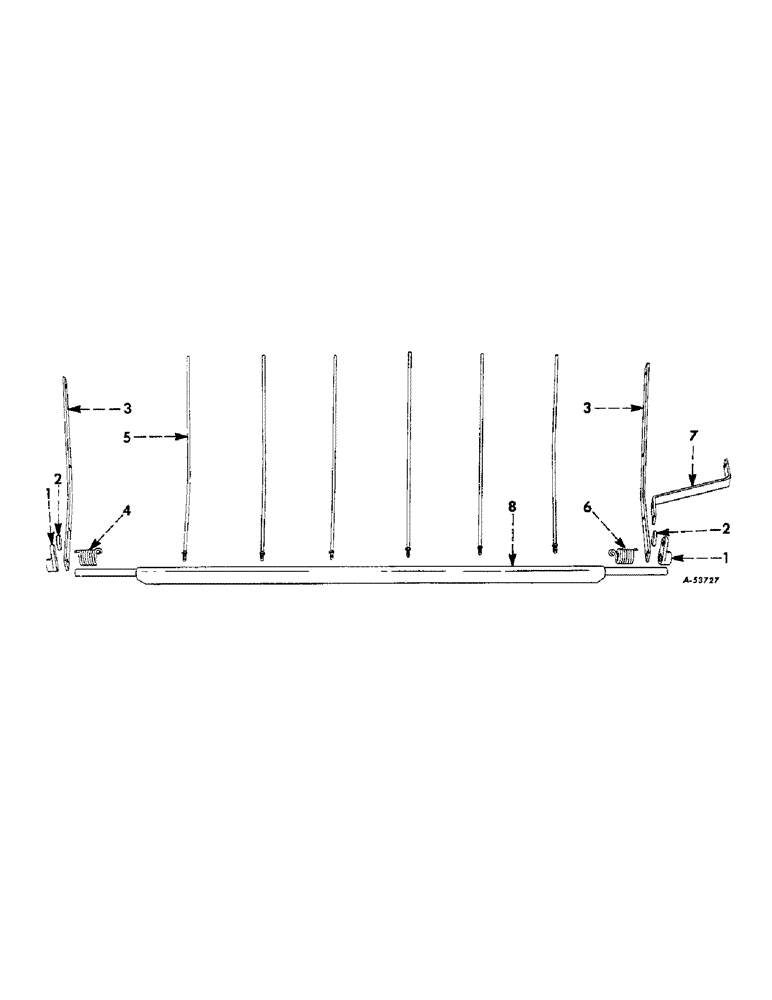

Запчасти Case IH 57 (A-25) - PICKUP COVER

1

659842R1

STOP, pickup cover sheet

2шт.

PIN, 1/8 x 3/4 cot.

2шт.

1380S

PIN

5/16 x 1-3/4 std-hd

2шт.

2

659843R1

WASHER, pickup cover adjusting

2шт.

BOLT, 3/8-16 x 1-1/4 hex-hd mach

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

3

663475R1

ARM, pickup cover sheet

2шт.

BOLT, 5/16-18 x 3/4 cd-pltd short sq-nk crg

4шт.

NUT, 5/16-18 cd-pltd hex.

4шт.

WASHER, 5/16 cd-pltd med lock

4шт.

4

659846R1

SPRING, pickup cover left

1шт.

BOLT, 5/16-18 x 1-1/2 hex-hd mach

2шт.

NUT, 5/16-18 hex.

2шт.

WASHER, 5/16 med lock

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

5

662394R1

FINGER

TINE, pickup cover

6шт.

NUT, 3/8-16 hex.

6шт.

WASHER, 3/8 med lock

6шт.

6

659845R1

SPRING, pickup cover right

1шт.

7

663465R1

BRACE, feed opening front sheet

1шт.

BOLT, 5/16-18 x 1 cd-pltd short sq-nk crg

1шт.

NUT, 5/16-18 cd-pltd hex.

1шт.

WASHER, 5/16 cd-pltd med lock

1шт.

8

663523R91

BRACKET ASSY, pickup cover tine

1шт.
