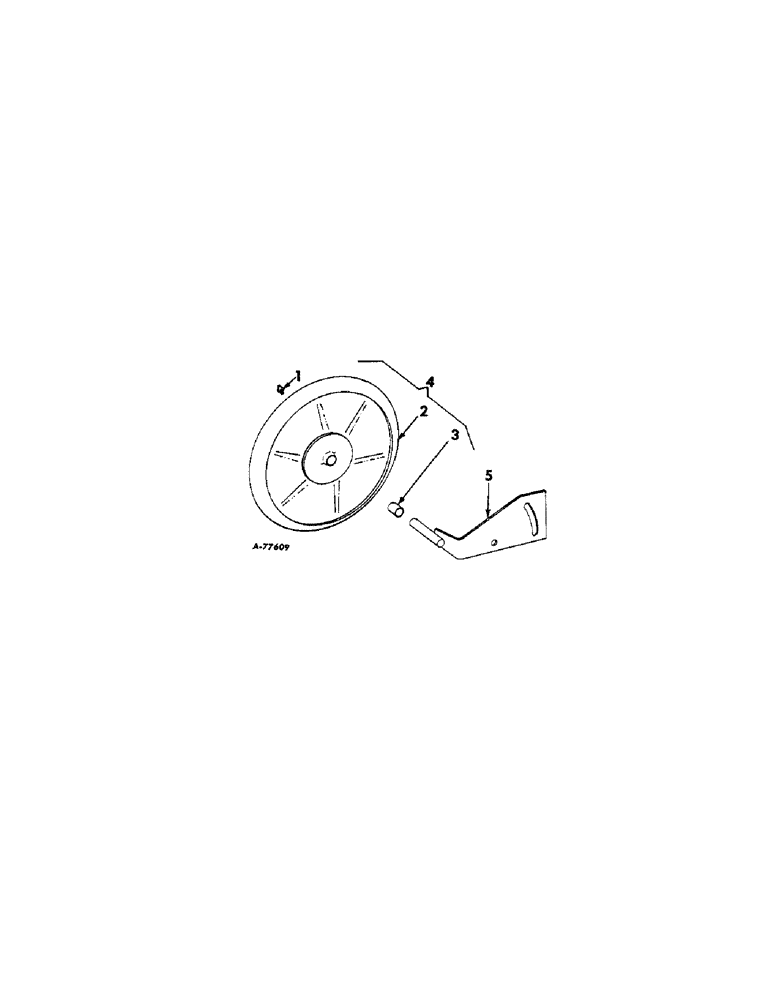

Запчасти Case IH 57 (A-25[A]) - PICKUP WHEEL, STEEL

1

274508

LUBE NIPPLE

FITTING, 1/4-28 NS 45 deg angle lub

1шт.

2

(Not serviced separately) order pickup wheel assy

1шт.

3

659918R1

BUSHING

pickup wheel

1шт.

4

659917R91

WHEEL ASSY, pickup

1шт.

5

667723R91

BRACKET ASSY, pickup wheel

1шт.

BOLT, 7/16-14 x 1 cd-pltd hex-hd mach

2шт.

PIN, 3/16 x 1-1/4 cot.

1шт.

WASHER, 7/16 cd-pltd med lock

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

WASHER, 13/16 x 1-1/2 x 10 ga

1шт.
