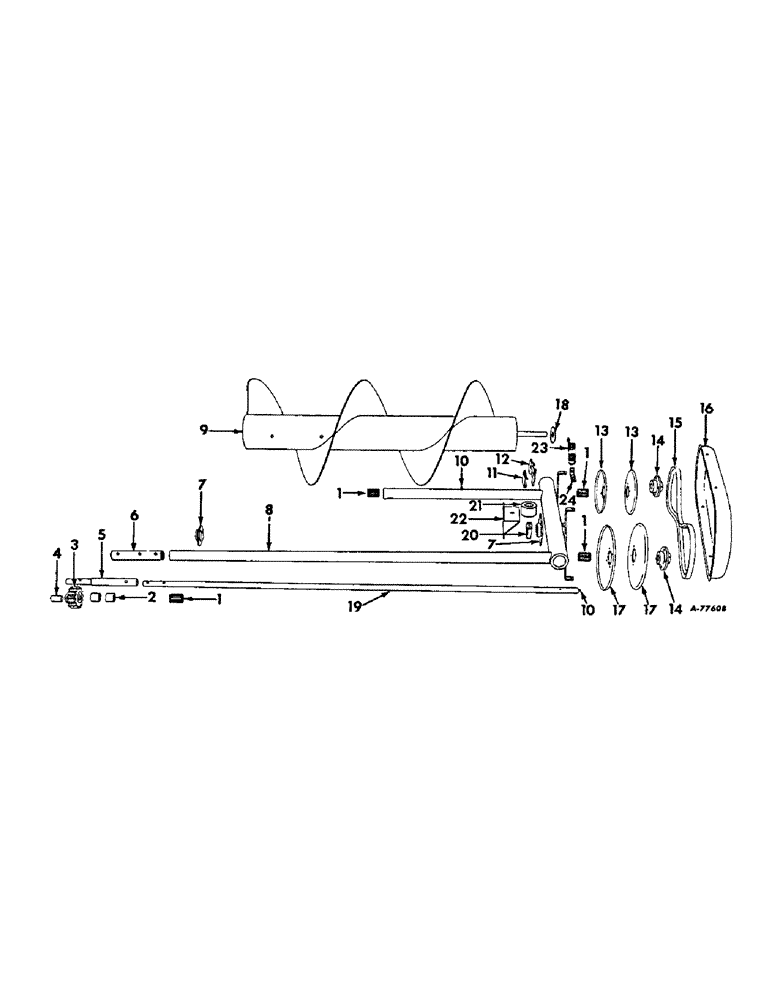

Запчасти Case IH 57 (A-21) - AUGER AND AUGER DRIVE

1

ST1300

BEARING

ASSY, auger core & drive

4шт.

2

663362R1

BUSHING

auger drive shaft outer

2шт.

3

657082R4

GEAR

PINION, auger drive

1шт.

120502

STOP

3/16 x 7/8 Woodruff No. 11

1шт.

142535

GROOVED PIN,5/16" x 2", Type A

Pin, Grooved, 5/16" x 2", Type A

1шт.

4

663363R1

BUSHING

auger drive shaft

1шт.

5

663413R1

SHAFT

auger drive pinion

1шт.

VC649

WASHER

29/32 x 1-3/4 x 16 ga

1шт.

552455R1

WASHER, 1-1/16 x 1-3/4 x 22 ga

1шт.

6

663429R1

COUPLING, auger drive shaft

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

3шт.

U5350

PIN, 5/16 x 1-11/16 std-hd

2шт.

W6571

PIN, 3/8 x 1-11/16 std-hd

1шт.

7

657191R1

BUSHING, auger relief

2шт.

BOLT, 3/8-16 x 3/4 short sq-nk crg

4шт.

NUT, 3/8-16 hex.

4шт.

WASHER, 3/8 med lock

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

8

663520R93

SUPPORT ASSY, auger

1шт.

VC649

WASHER

29/32 x 1-3/4 x 16 ga

3шт.

615325R1

WASHER, 1-11/16 x 2-1/4 x 16 ga

1шт.

9

663515R93

AUGER ASSY, hay

1шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

11

655727R1

STOP, auger

1шт.

12

655726R1

HOLDER, auger stop

1шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

2шт.

BOLT, 5/16-18 x 1 short sq-nk crg

1шт.

NUT, 5/16-18 hex.

3шт.

13

657160R1

PULLEY

SHEAVE, auger drive rear

2шт.

14

657079R1

HUB, V-sheave

2шт.

BOLT, 5/16-18 x 1-1/2 hex-hd mach

8шт.

Q3915

KEY,Gib, 1/4" Sq x 1 5/8"

1/4 x 1-5/8 gib

2шт.

NUT, 5/16-18 hex.

8шт.

WASHER, 5/16 med lock

8шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

32шт.

15

663480R1

V-BELT, Auger drive

1шт.

16

657150R11

SHIELD W/PRODUCT GRAPHIC, auger drive

1шт.

BOLT, 5/16-18 x 1/2 cd-pltd hex-hd mach

4шт.

WASHER, 5/16 med lock

4шт.

17

495480R1

PULLEY

SHEAVE, auger drive front

2шт.

18

665187R1

THRUST WASHER

auger thrust

1шт.

19

668608R1

SHAFT, auger drive

1шт.

20

1904B

COLLAR, auger stop

1шт.

272120

CONNECTING LINK

7/16-14 hex. jam

1шт.

102962

SCREW, 7/16-14 x 1 sq-hd cone-pt set

1шт.

21

660115R1

INSULATOR BLOCK

BUMPER, auger

1шт.

BOLT, 3/8-16 x 1-1/4 hex-hd mach

1шт.

NUT, 3/8-16 hex.

1шт.

WASHER, 3/8 med lock

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga

1шт.

22

663445R1

BRACKET, auger bumper

1шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

4шт.

NUT, 5/16-18 hex.

4шт.

WASHER, 5/16 med lock

4шт.

23

662632R1

SPRING

auger helper

1шт.

24

662387R1

ANCHOR

auger helper spring

1шт.
