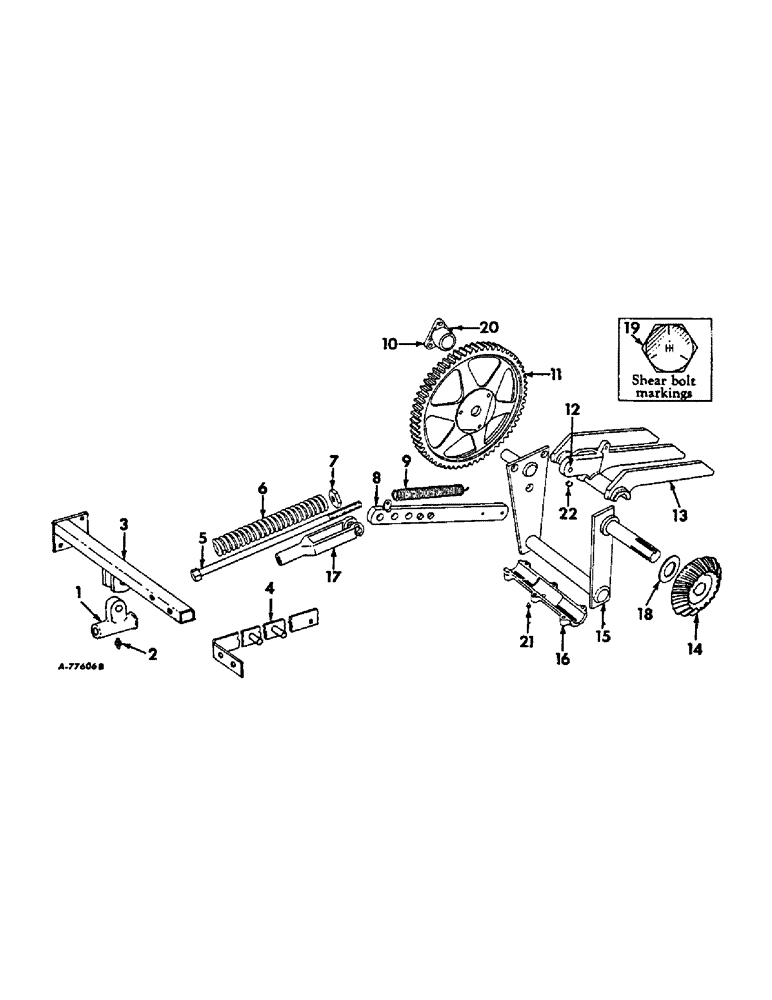

Запчасти Case IH 57 (A-19) - PACKER CRANK, FINGERS AND RELIEF

1

668627R1

TRUNNION, packer relief

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

3

668622R91

ANCHOR ASSY, packer relief

1шт.

BOLT, 3/8-16 x 1 short sq-nk crg

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

4

668626R11

SUPPORT ASSY, packer relief

1шт.

BOLT, 3/8-16 x 2-3/4 sq-nk crg

2шт.

BOLT, 5/16-18 x 1 short sq-nk crg

1шт.

NUT, 3/8-16 hex.

2шт.

NUT, 5/16-18 hex.

1шт.

WASHER, 3/8 med lock

2шт.

WASHER, 5/16 med lock

1шт.

5

663903R1

BOLT, packer finger guide

1шт.

6

663902R1

VALVE SPRING

SPRING, packer finger relief

1шт.

7

663904R1

NUT, packer relief guide

1шт.

8

669641R1

SUPPORT, packer finger

1шт.

PIN, 3/16 x 1-1/8 cot.

1шт.

C351

AXLE PIN

PIN, 1/2 x 2-3/8 std-hd

1шт.

9

662632R1

SPRING

packer, 501G thru 1599H

1шт.

9

69983D

SPRING

packer, 1600K up

1шт.

10

663154R1

BUSHING

BEARING, packer crank front

1шт.

BOLT, 7/16-14 x 1-1/4 hex-hd mach

3шт.

NUT, 7/16-14 hex.

3шт.

WASHER, 7/16 med lock

3шт.

11

663152R2

GEAR, packer crank

1шт.

12

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

packer finger

1шт.

13

663176R11

FINGERS W/BUSHINGS, packer

1шт.

14

668618R1

GEAR, knotter & twister drive pinion

1шт.

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4 gib

1шт.

Q275

WASHER

1-13/32 x 2 x 20 ga

5шт.

15

663222R92

CRANK ASSY, packer

1шт.

BOLT, 1/2-13 x 2 sq-nk crg

3шт.

NUT, 1/2-13 hex.

3шт.

Q121

WASHER

1-9/32 x 2 x 16 ga

2шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga

4шт.

Q275

WASHER

1-13/32 x 2 x 20 ga, (or as required)

2шт.

16

663142R1

CAP, packer finger bearing

1шт.

BOLT, 3/8-16 x 1-3/4 hex-hd mach

6шт.

WASHER, 3/8 med lock

6шт.

17

662032R2

CONNECTOR, ELEC

CONNECTOR, packer finger relief

1шт.

663047R2

PIN

3/4 x 2-5/32 rod end

2шт.

664840R1

RING

PIN, 3/16 quick attachable

1шт.

PIN, 7/32 x 2-3/4 cot.

1шт.

18

667439R1

SHIM

knotter & twister drive pinion .005, (or as required)

4шт.

18

667438R1

SHIM

knotter & twister drive pinion .020, (or as required)

6шт.

19

181348

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 5

SHEAR BOLT, 5/16-24 x 2-1/4 hex-hd cap screw

1шт.

NUT, 5/16-24 hex.

1шт.

WASHER, 5/16 med lock

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 45 deg angle lub

1шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

22

673878R1

RETAINER, packer finger shear bolt

1шт.
