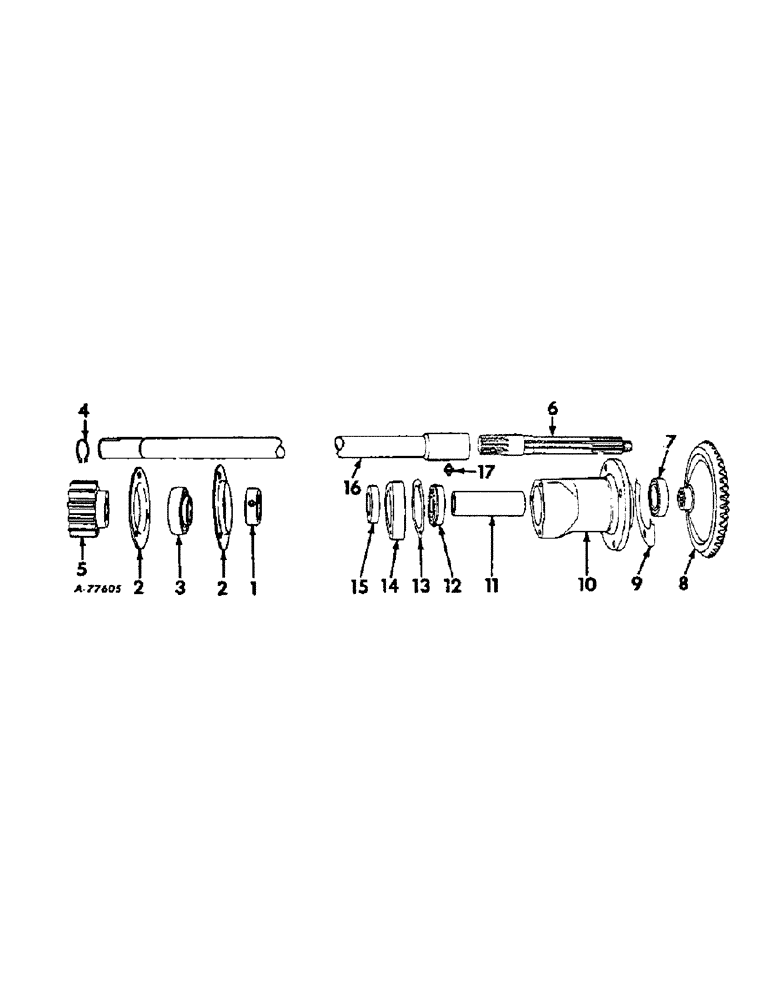

Запчасти Case IH 57 (A-18) - PACKER DRIVE

1

517645R11

COLLAR

bearing locking

1шт.

2

617863R1

FLANGED BEARING

packer drive shaft bearing

2шт.

3

571588R91

BALL BEARING

BEARING ASSY, packer drive

1шт.

4

659380R1

SNAP RING,#137, Ext

Ring, Snap, , packer drive shaft #137, Ext

2шт.

5

668896R1

PINION, packer crank

1шт.

452563

KEY

5/16 x 2-1/8 Woodruff 128

1шт.

6

664533R2

SHAFT, packer drive front

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

1шт.

Q3775

WASHER

25/32 x 2 x 16 ga

1шт.

7

ST568

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING ASSY, packer drive shaft inner

1шт.

8

663230R1

GEAR, packer drive bevel

1шт.

9

663341R1

SHIM, packer drive shaft .010

4шт.

9

663342R1

SHIM, packer drive shaft .005

8шт.

9

663343R1

SHIM, packer drive shaft .007

6шт.

10

663147R1

HOUSING, packer crankshaft

1шт.

SCREW, 3/8-16 x 1-1/4 hex-hd cap

4шт.

WASHER, 3/8 med lock

4шт.

11

663359R1

SPACER, packer drive bearing

1шт.

12

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING ASSY, packer drive shaft outer

1шт.

13

663358R1

GASKET, packer drive bearing cap

1шт.

14

663145R1

CAP, packer drive bearing

1шт.

BOLT, 3/8-16 x 1-1/2 hex-hd mach

3шт.

WASHER, 3/8 med lock

3шт.

15

663886R91

SEAL, packer drive bearing oil

1шт.

16

668894R11

SHAFT ASSY, packer drive rear

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga, (or as required)

3шт.

17

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tap. str lub

1шт.
