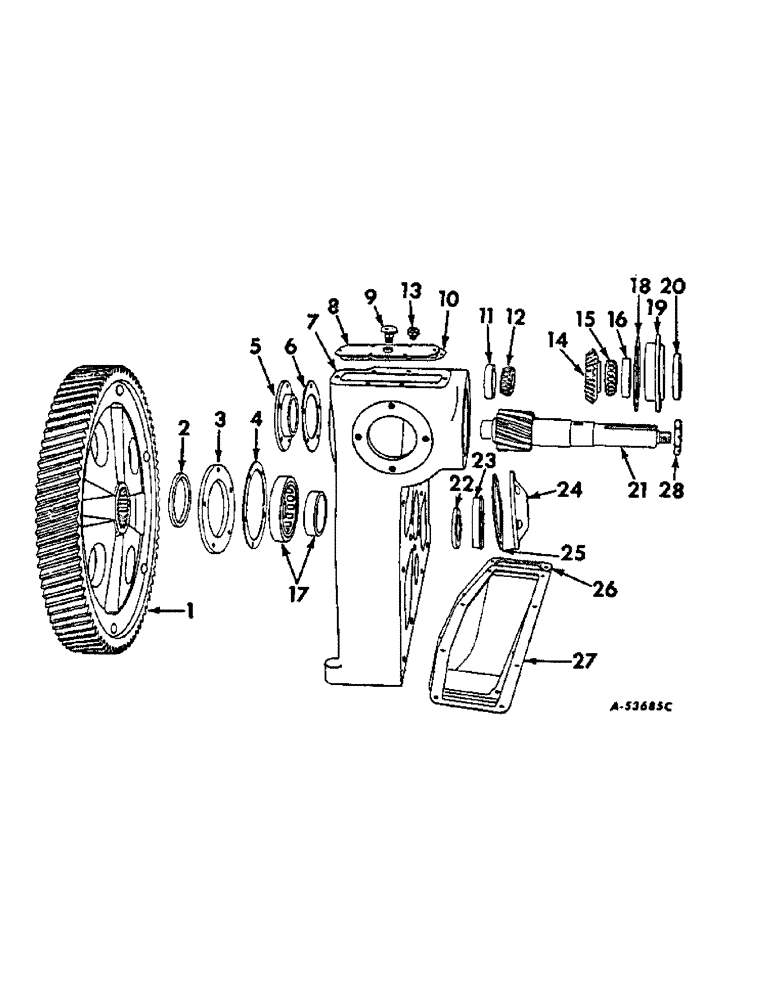

Запчасти Case IH 57 (A-17) - MAIN DRIVE

1

958810R91

GEAR ASSY, main drive

1шт.

105514

RIVET, 1/2 x 2-1/4 button hd

8шт.

114-719

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

SCREW, 3/4-16 x 3-1/2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

663567R91

SEAL, center brg oil

1шт.

3

663143R1

RETAINER, plunger crank bearing

1шт.

SCREW, 3/8-16 x 1-1/4 hex-hd cap

5шт.

WASHER, 3/8 med lock

5шт.

4

663401R1

GASKET, plunger crank bearing retainer

1шт.

5

663168R1

CAGE, pinion shaft left brg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd mach

5шт.

WASHER, 3/8 med lock

5шт.

6

663403R1

SHIM, pinion shaft left brg. 005

3шт.

6

663404R1

SHIM, pinion shaft left brg .007

2шт.

6

663437R1

SHIM, pinion shaft left brg. 020

3шт.

7

663150R2

CASE, main drive gear

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 hex-hd cap

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

8

663405R1

COVER, gear case

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 C-z hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

152127H1

BREATHER,1/8"-27, Short

main drive gear case, replaces 663002R91

1шт.

10

663406R1

GASKET, gear case cover

1шт.

11

130503H

BEARING CUP

BEARING, flywheel & pinion shaft cup

1шт.

12

62923R91

ROLLER BEARING

ASSY, flywheel & pinion shaft cone

1шт.

13

119932

BUSHING, 3/8 x 1/8 reducing pipe

1шт.

14

663229R1

PINION, packer drive bevel

1шт.

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, 1/4 x 7/8 Woodruff A

1шт.

15

659458R91

ROLLER BEARING

BEARING ASSY, pinion shaft right cone

1шт.

16

659459R1

BEARING, CUP

BEARING, pinion shaft right cup

1шт.

17

663565R91

BEARING

ASSY, crank center

1шт.

18

663440R1

SHIM, pinion shaft right brg cage .005

1шт.

18

663441R1

SHIM, pinion shaft right brg cage .007

2шт.

18

663442R1

SHIM, pinion shaft right brg cage .020

2шт.

19

663148R1

CAGE, pinion shaft right brg

1шт.

SCREW, 3/8-16 x 1-1/4 hex-hd cap

5шт.

WASHER, 3/8 med lock

5шт.

20

11848P

SEAL, pinion shaft oil

1шт.

21

663541R1

PINION, main drive

1шт.

Q93

KEY, 1/2 x 3 sq parallel 1/2" Sq x 3", Par

1шт.

17233R1

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

22

663344R1

SPACER, plunger crank bearing

1шт.

23

ST270A

BALL BEARING,60 mm ID x 110 mm OD x 22 mm

BEARING ASSY, crank right

1шт.

24

663165R1

RETAINER, plunger crank right brg

1шт.

SCREW, 3/8-16 x 1-1/4 hex-hd cap

5шт.

WASHER, 3/8 med lock

5шт.

25

663447R1

GASKET, plunger crank bearing

1шт.

26

663146R1

PAN, main drive gear case

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 C-Z hex-hd cap

8шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

SCREW, 5/16-18 x 2-3/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

27

663466R1

GASKET, gear case pan

1шт.

28

670372R1

NUT, flywheel slotted jam

1шт.
