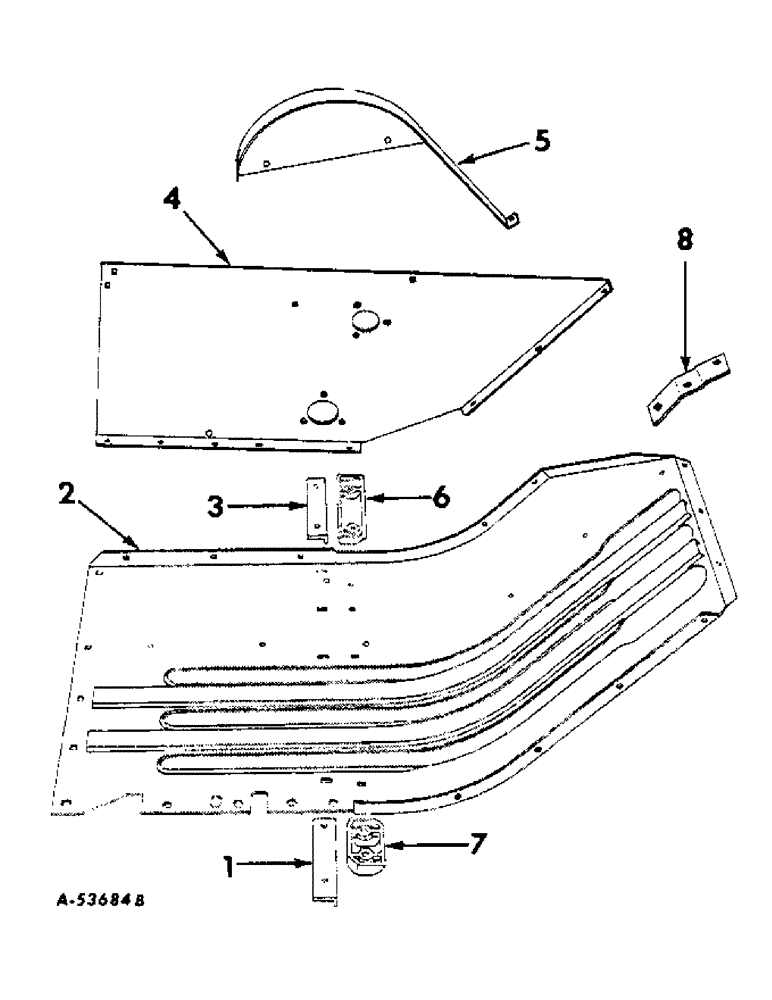

Запчасти Case IH 57 (A-16) - FEED OPENING TOP SHEET

1

663181R1

GUIDE, feed opening top sheet rear

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

1шт.

BOLT, 3/8-16 x 1-1/4 No. 3 plow

1шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

2

663245R93

SHEET ASSY, feed opening top

1шт.

BOLT, 5/16-18 x 1 hex-hd mach

1шт.

BOLT, 3/8-16 x 3/4 No. 3 plow

1шт.

NUT, 5/16-18 hex.

1шт.

NUT, 3/8-16 hex.

1шт.

WASHER, 5/16 med lock

1шт.

WASHER, 3/8 med lock

1шт.

3

663180R1

GUIDE, feed opening top sheet front

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

4

663488R3

SUPPORT, packer crank front

1шт.

BOLT, 5/16-18 x 3/4 No. 3 plow

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

1шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

4шт.

BOLT, 3/8-16 x 1 short sq-nk crg

3шт.

NUT, 5/16-18 hex.

5шт.

NUT, 3/8-16 hex.

4шт.

WASHER, 5/16 med lock

5шт.

WASHER, 3/8 med lock

4шт.

5

663267R91

SHIELD ASSY, packer gear

1шт.

BOLT, 3/8-16 x 3/4 short sq-nk crg

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

6

663183R1

DEFLECTOR, feed opening front

1шт.

BOLT, 3/8-16 x 1-1/4 short sq-nk crg

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

7

663182R1

DEFLECTOR, feed opening rear

1шт.

BOLT, 3/8-16 x 1-1/4 short sq-nk crg

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

8

664575R1

STRAP, feed opening top sheet tie

1шт.

BOLT, 5/16-18 x 1 short sq-nk crg

1шт.

NUT, 5/16-18 hex.

3шт.

125681

SCREW, 5/16-18 x 5/8 cd-pltd slt truss-hd mach

2шт.

WASHER, 5/16 med lock

3шт.
