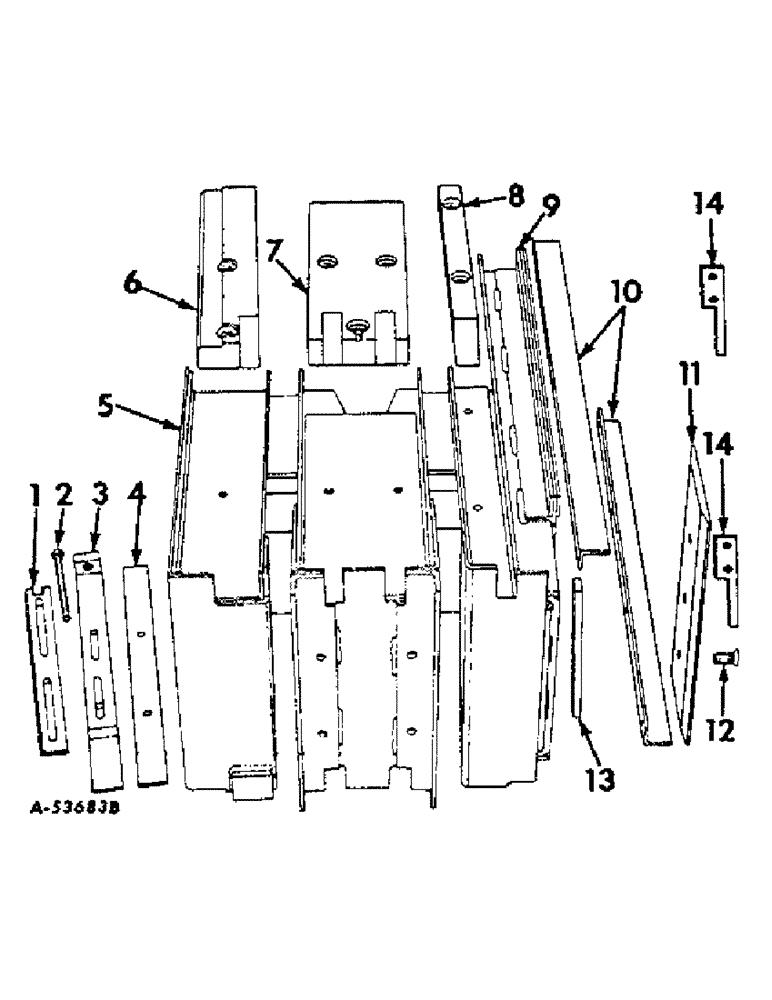

Запчасти Case IH 57 (A-15) - PLUNGER

1

663141R1

RUNNER, plunger adjustment

1шт.

2

663396R1

BOLT, plunger adjustment

1шт.

NUT, 1/2-13 hex.

1шт.

3

663140R1

SLIDE, plunger adjustment

1шт.

4

663400R1

RUNNER

plunger left

1шт.

BOLT, 3/8-16 x 2-1/2 No. 3 plow

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

5

665188R92

PLUNGER ASSY, see Note A

1шт.

5

663197R93

PLUNGER ASSY, see Note B

1шт.

6

663408R1

BLOCK

plunger upper left

1шт.

BOLT, 3/8-16 x 1-1/4 short sq-nk crg

1шт.

BOLT, 3/8-16 x 2-1/2 sq-nk crg

1шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

7

663464R2

BLOCK

plunger upper center

1шт.

BOLT, 3/8-16 x 2-1/4 sq-nk crg

3шт.

NUT, 3/8-16 hex.

3шт.

WASHER, 3/8 med lock

3шт.

8

663407R2

BLOCK

plunger upper right

1шт.

BOLT, 3/8-16 x 2-1/4 sq-nk crg

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

9

663216R1

RUNNER, upper & lower plunger thrust

4шт.

104166

SCREW

RIVET, 1/4 x 5/8 csk-hd solid

8шт.

10

663418R2

ANGLE

plunger runner right

2шт.

SCREW, 3/8-24 x 1/2 hex-hd cap

8шт.

WASHER, 3/8 med lock

8шт.

11

663354R1

KNIFE ASSY

KNIFE, hay

1шт.

12

663728R1

BOLT (SPREADER)

BOLT, hay knife

3шт.

13

663727R1

HOLDER, hay knife

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

104166

SCREW

RIVET, 1/4 x 5/8 90 deg csk-hd solid

8шт.

14

664338R1

STRIPPER

SCRAPER, plunger guide front

1шт.

14

664339R1

SCRAPER, plunger guide rear

1шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

4шт.

NUT, 5/16-18 hex.

4шт.

WASHER, 5/16 med lock

4шт.

WASHER, 11/32 x 11/16 x 16 ga

4шт.
