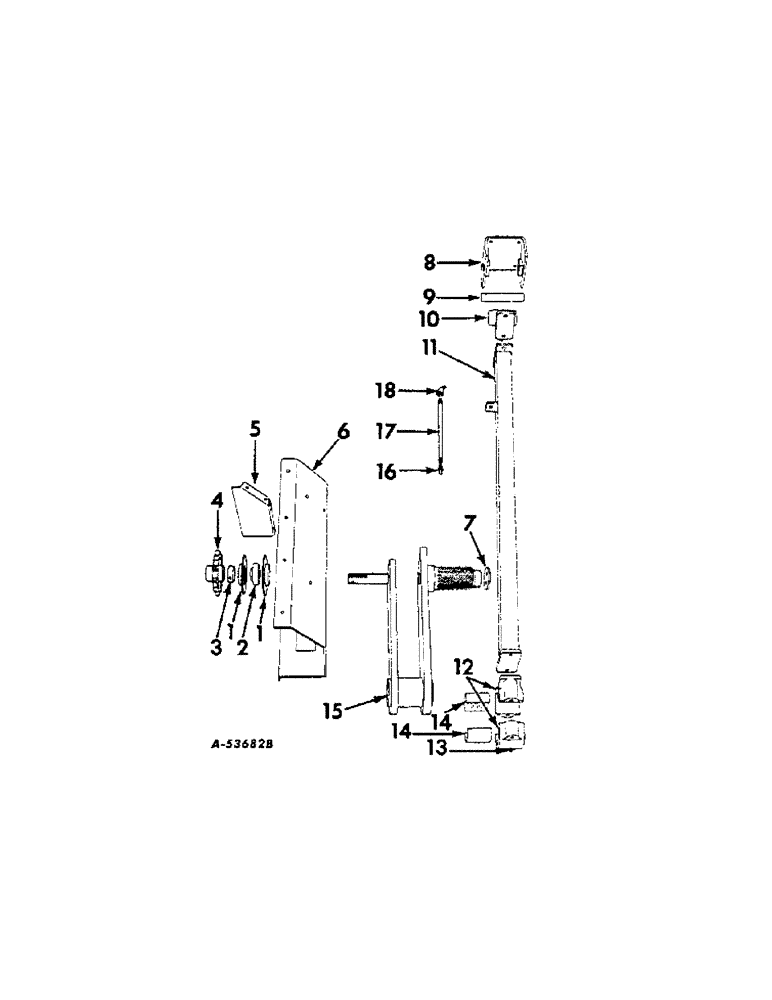

Запчасти Case IH 57 (A-14[A]) - CRANKSHAFT AND PITMAN

1

618029R1

BEARING

FLANGE, left crank bearing

2шт.

BOLT, 1/2-13 x 1 short sq-nk crg

4шт.

NUT, 1/2-13 hex.

4шт.

WASHER, 1/2 med lock

4шт.

2

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

ASSY, crank left

1шт.

3

664598R11

COLLAR

crank left brg

1шт.

4

663151R1

SPROCKET, pickup drive

1шт.

BOLT, 7/16-14 x 3 hex-hd mach

1шт.

Q55

KEY,3/8" Sq x 2", Par

3/8 x 2 sq parallel

1шт.

NUT, 7/16-14 hex.

1шт.

WASHER, 7/16 med lock

1шт.

5

663411R1

GUSSET, left crank bearing support

1шт.

BOLT, 3/8-16 x 3/4 hex-hd mach

6шт.

NUT, 3/8-16 hex.

6шт.

WASHER, 3/8 med lock

6шт.

6

663487R2

SUPPORT, left crank bearing

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

4шт.

BOLT, 7/16-14 x 1 hex-hd mach

4шт.

NUT, 3/8-16 hex.

4шт.

NUT, 7/16-14 hex.

4шт.

WASHER, 3/8 med lock

4шт.

WASHER, 7/16 med lock

4шт.

7

495919R2

WASHER, thrust

1шт.

495949R1

BOLT, 3/8-24 x 1 hex-hd special

2шт.

WASHER, 3/8 med lock

2шт.

8

663259R93

SUPPORT ASSY, plunger Pitman

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

4шт.

NUT, 3/8-16 hex.

4шт.

NUT, 5/8-11 hex.

4шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

WASHER, 3/8 med lock

4шт.

9

663399R1

AXLE PIN

PIN, plunger

1шт.

PIN, 1/8 x 2-1/2 cot.

1шт.

657196R1

PIN

1/4 x 2 roll spring

1шт.

WASHER, 9/64 x 7/16 x 18 ga

1шт.

10

663156R1

BEARING

Pitman, rear

1шт.

BOLT, 5/8 x 2 hex-hd mach

2шт.

NUT, 5/8-11 slt-hex.

2шт.

PIN, 1/8 x 1-1/4 cot

2шт.

WASHER, 5/8 med lock

2шт.

11

663218R91

PITMAN ASSY, plunger

1шт.

12

663160R21

BEARING W/CAP, Pitman front

1шт.

BOLT, 5/8-11 x 6 hex-hd mach

2шт.

NUT, 5/8-11 slt-hex

2шт.

PIN, 1/8 x 1-1/4 cot.

2шт.

WASHER, 5/8 med lock

2шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

14

663427R1

BEARING LINER,3" OD x 4.04"

Pitman box

2шт.

15

663493R93

CRANKSHAFT ASSY, plunger

1шт.

16

273350

PANEL

FITTING, 1/8-27 PTF str special short

1шт.

17

219320

TUBE, plunger lubrication, replaces 665729R1 Nipple, 1/8" NPT x 12"

1шт.

18

106649

ELBOW,45 Degree, 1/8" NPT Street

1/8 x 45 deg street

1шт.

665728R1

SEAL

SEAL, plunger crank Neoprene

4шт.
