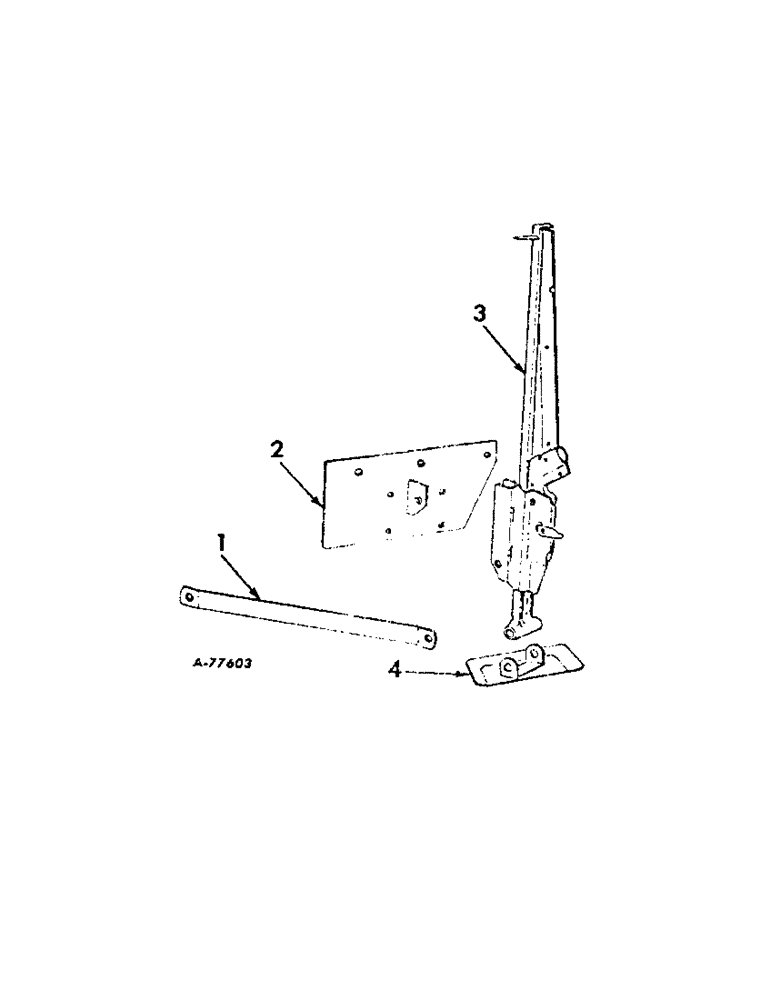

Запчасти Case IH 57 (A-12) - LIFTING JACK

1

668583R1

BRACE, jackstand

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd lock

2шт.

SCREW, 1/2-13 x 1-3/8 C-Z hex-hd cap

2шт.

22656R1

WASHER

17/32 x 1-1/16 x 16 ga CDP

2шт.

2

668584R91

LUG ASSY, jack mount

1шт.

SCREW, 7/16-14 x 1-1/4 hex-hd cap

4шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 lock

4шт.

WASHER, 7/16 med lock

4шт.

3

668581R91

JACK ASSY, lifting, for service replacement of 668581R91 order jack, 665067R91, pivot, 665068R91, snap ring, 665071R1

1шт.

PIN, 3/16 x 1-1/4 cot.

1шт.

671034R1

PIN

1/2 x 1-1/2 C-Z std-hd

1шт.

4

668582R91

PAD ASSY, jack

1шт.

PIN, 3/16 x 1-1/4 cot.

1шт.

671035R1

PIN, 1/2 x 3-3/4 C-Z std-hd

1шт.
