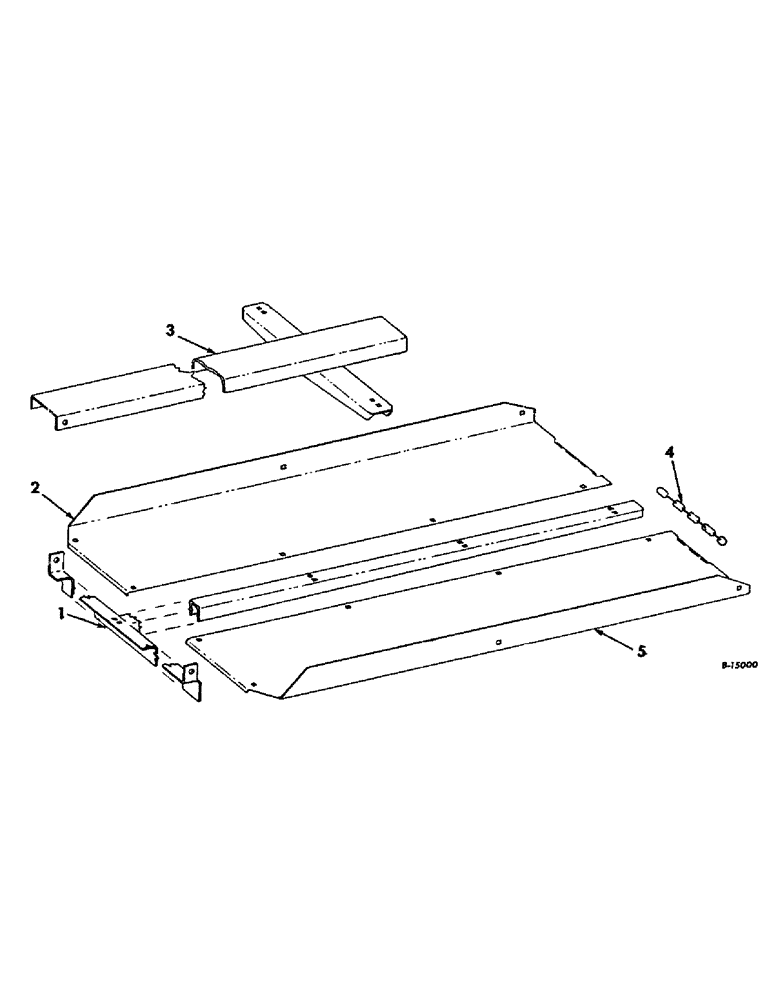

Запчасти Case IH 57 (A-11) - LOWER TENSION CHANNEL AND BALE CHAMBER EXTENSION

1

668586R91

PIVOT ASSY, bale chamber extension

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 lock

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

2

668580R1

EXTENSION, bale chamber right

1шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

7шт.

NUT, 5/16-18 hex.

7шт.

WASHER, 5/16 med lock

7шт.

3

663254R92

CHANNEL ASSY, lower tension

1шт.

PIN, 3/16 x 1-1/8 cot.

1шт.

Q625

PIN, 1/2 x 5-7/8 std-hd

1шт.

4

495526R1

CHAIN (AG)

CHAIN ASSY, bale chamber extension holdup

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 short sq-nk crg, type 2

2шт.

BOLT, 7/16-14 x 1-1/2 short sq-nk crg

2шт.

NUT, 5/16-18 hex.

2шт.

NUT, 7/16-14 hex.

2шт.

657803R1

NUT, 5/16-18 wing

2шт.

WASHER, 5/16 med lock

2шт.

WASHER, 7/16 med lock

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

Q5028

WASHER

15/32 x 1 x 11 ga

2шт.

5

668579R1

EXTENSION, bale chamber left

1шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

7шт.

NUT, 5/16-18 hex.

7шт.

WASHER, 5/16 med lock

7шт.

1

663402R1

SHIELD, needle arm BALE COUNTER

1шт.

BOLT, 3/8-16 x 3/4 BALE COUNTER

2шт.

NUT, 3/8-16 hex. BALE COUNTER

2шт.

WASHER, 3/8 med lock BALE COUNTER

2шт.

2

495046R92

COUNTER

W/ATTACHING HARDWARE, bale BALE COUNTER

1шт.

142862

SCREW,Type U Metallic, Rnd Hd, #4 x 1/4"

No. 4 x 1/4 drive BALE COUNTER

2шт.

3

656707R91

ARM

ASSY, bale counter

1шт.

4

495525R1

SPRING

bale counter

1шт.

PIN, 1/8 x 1 cot. BALE COUNTER

1шт.
