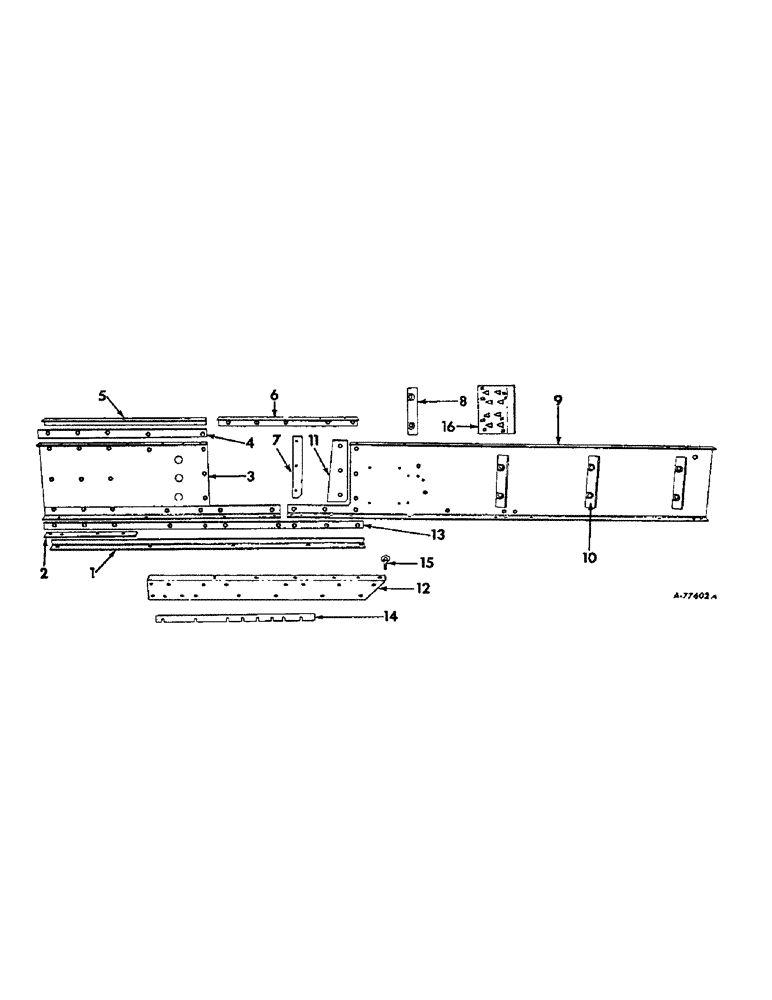

Запчасти Case IH 57 (A-10) - RIGHT BALE CHAMBER SIDE

1

664534R2

RUNNER

plunger guide lower right

1шт.

BOLT, 3/8-16 x 1-1/2 No. 3 plow

4шт.

BOLT, 3/8-16 x 2 No. 3 plow

2шт.

NUT, 3/8-16 hex.

6шт.

WASHER, 3/8 med lock

6шт.

Q1505

WASHER

13/32 x 1 x 16 ga

6шт.

2

663423R1

EXTENSION, bottom plate right

1шт.

BOLT, 3/8-16 x 1-1/4 No. 3 plow

3шт.

NUT, 3/8-16 hex.

3шт.

3

663336R2

SIDE, bale chamber right front

1шт.

4

663435R1

GUIDE, plunger upper right

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

2шт.

BOLT, 7/16-14 x 1-1/4 No. 3 plow

1шт.

BOLT, 7/16-14 x 1-1/2 No. 3 plow

2шт.

NUT, 3/8-16 hex.

2шт.

NUT, 7/16-14 hex.

3шт.

WASHER, 3/8 med lock

2шт.

WASHER, 7/16 med lock

3шт.

5

663425R2

GUIDE, plunger upper

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

4шт.

BOLT, 3/8-16 x 1-1/4 No. 3 plow

3шт.

NUT, 3/8-16 hex.

7шт.

WASHER, 3/8 med lock

7шт.

Q1505

WASHER

13/32 x 1 x 16 ga

6шт.

6

663473R2

ANGLE, lower right support

1шт.

BOLT, 3/8-16 x 1 short sq-nk crg

3шт.

BOLT, 7/16-14 x 1-1/2 short sq-nk crg

2шт.

NUT, 3/8-16 hex.

3шт.

NUT, 7/16-14 hex.

2шт.

WASHER, 3/8 med lock

3шт.

WASHER, 7/16 med lock

2шт.

615063R1

WASHER

15/32 x 7/8 x 16 ga

2шт.

7

668576R1

SHIM, stationary knife

1шт.

BOLT, 7/16-14 x 1-1/2 No. 3 plow

3шт.

NUT, 7/16-14 hex.

3шт.

WASHER, 7/16 med lock

3шт.

8

665347R1

WEDGE

hay retainer long, 3744M and below

2шт.

BOLT, 3/8-16 x 3/4 short sq-nk crg

4шт.

NUT, 3/8-16 hex.

4шт.

WASHER, 3/8 med lock

4шт.

BOLT, 7/16-14 x 1-1/4 short sq-nk crg

1шт.

NUT, 7/16-14 hex.

1шт.

WASHER, 7/16 med lock

1шт.

9

663337R3

SIDE, bale chamber right rear

1шт.

10

656917R1

WEDGE, hay retainer

3шт.

BOLT, 3/8-16 x 1 short sq-nk crg

6шт.

WASHER, 3/8 med lock

6шт.

11

663419R1

KNIFE ASSY

KNIFE, stationary shear

1шт.

12

668602R91

CHANNEL ASSY, feed opening sill

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

5шт.

NUT, 3/8-16 hex.

5шт.

WASHER, 3/8 med lock

5шт.

13

663424R2

GUIDE

plunger lower right

1шт.

BOLT, 3/8-16 x 1-1/4 No. 3 plow

6шт.

BOLT, 3/8-16 x 1-1/2 No. 3 plow

2шт.

BOLT, 7/16-14 x 1-1/4 No. 3 plow

2шт.

BOLT, 7/16-14 x 1-1/2 No. 3 plow

1шт.

NUT, 3/8-16 hex.

8шт.

NUT, 7/16-14 hex.

3шт.

WASHER, 7/16 med lock

3шт.

14

664545R1

SHIM, plunger thrust spacer lower

1шт.

15

667934R1

BOLT (SPREADER)

BOLT, plunger guide eye

2шт.

NUT, 3/8-16 hex.

4шт.

557950R1

WASHER

13/32 x 1 x 7 ga

3шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

16

674705R1

PLATE, hay retainer, 3745N and up

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15040R1

BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2"

7/16-14 x 1-1/2 sq-nk crg

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.
