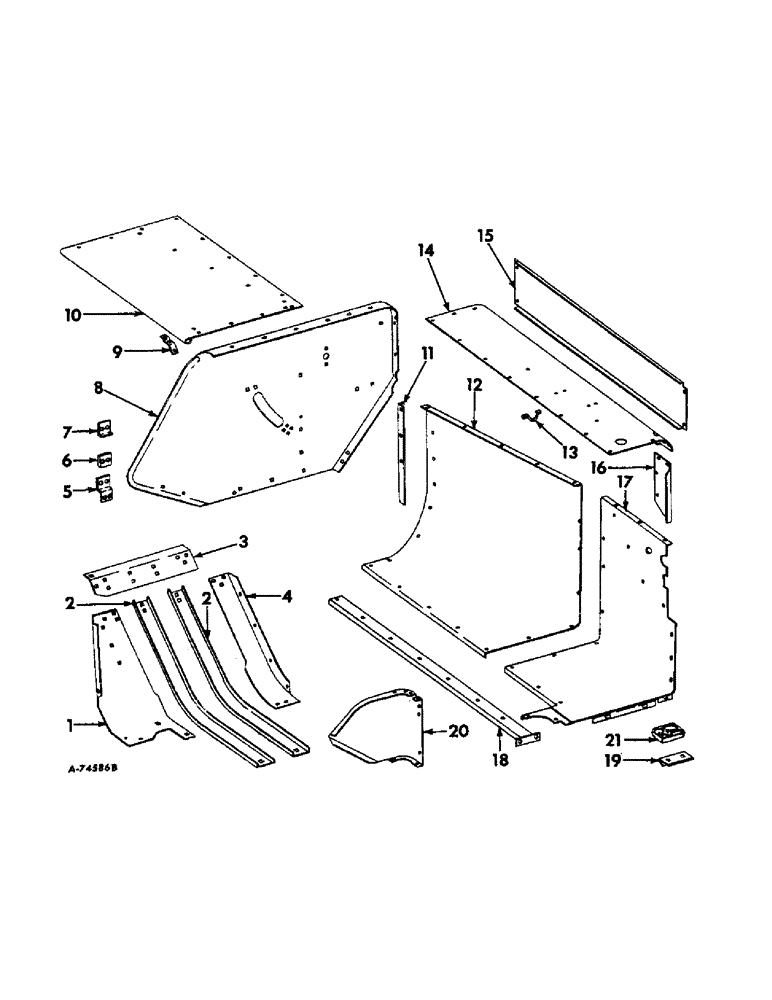

Запчасти Case IH 47 (B-12) - CROSS CONVEYOR AND FEED OPENING

1

667743R1

SHEET

TOP SHEET, right front

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

670866R1

NO LONGER SERVICED

CHANNEL, feed opening

2шт.

14995R1

BOLT

cge. 3/8 x 3/4

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge, 3/8 x 1

2шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

667745R1

SHEET

TOP SHEET, right center

1шт.

137352

SCREW, tr. hd. sl. 1/4 x 5/8

3шт.

109084

NUT,1/4"-20, G5

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

667746R1

SHEET

TOP SHEET, right rear

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

137352

SCREW, tr. hd. sl. 1/4 x 5/8

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

665437R1

HOLDER, auger stop lower

1шт.

14986R1

BOLT, cge. 5/16 x 1/2

2шт.

15053R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

cge. 5/16 x 1-3/4

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

662135R1

STOP

auger

3шт.

7

662239R1

BRACKET

HOLDER, auger stop upper

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

cge. 5/16 x 1-1/4

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

662408R2

SHEET, cross conveyor side

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach, 3/8 x 1-1/4

1шт.

14995R1

BOLT

cge, 3/8 x 3/4

3шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

667742R1

STRAP

feed opening tie

1шт.

14995R1

BOLT

cge, 3/8 x 3/4

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

667731R1

COVER, cross conveyor

1шт.

137352

SCREW. tr. hd. sl. 1/4 x 5/8

13шт.

109084

NUT,1/4"-20, G5

13шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

13шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

4шт.

11

662151R1

BRACE

cross, conveyor platform

1шт.

14995R1

BOLT

cge., 3/8 x 3/4

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

662357R1

PLATFORM

cross conveyor

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

137352

SCREW, tr. hd. sl. 1/4 x 5/8

5шт.

NLS

NO LONGER SERVICED

SCREW, fl. hd. sl. 1/4 x 3/4

5шт.

109084

NUT,1/4"-20, G5

10шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

5шт.

13

655108R2

GUIDE

twine, 2 for 37T and 47T Balers

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

14

662383R31

TOP, twine can, for twine Balers

1шт.

137352

SCREW, 1/4 x 5/8 slt-hd truss, 5 for wire Balers, 7 for 37T and 47T Balers

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

109084

NUT,1/4"-20, G5

5 for wire Balers, 7 for 37T and 47T Balers 1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , 7 for wire Balers, 9 for 37T and 47T Balers 1/4"

1шт.

Q392

WASHER

9/32 x 3/4 x 18 ga

2шт.

15

664813R1

SHEET, cross conveyor back, for wire Balers

1шт.

137352

SCREW, tr. hd. sl. 1/4 x 5/8

5шт.

109084

NUT,1/4"-20, G5

5шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

16

667738R1

SHEET, rear filler, for 37T and 47T Balers

1шт.

16

667739R1

FILLER SHEET, rear, for wire Balers

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

137352

SCREW, tr. hd. sl. 1/4 x 5/8

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

3шт.

109084

NUT,1/4"-20, G5

2шт.

17

662399R93

SHEET, feed opening cpt.

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow 3/8 x 1

2шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

3/8-16 x 1-1/2 plow

1шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

tr. hd. sl. 5/16 x 3/4

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

NLS

NO LONGER SERVICED

SCREW, fl. hd. sl. 1/4 x 3/4

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

plain, 9/32 x 5/8 x .065

2шт.

18

662236R91

CHANNEL, cross conveyor support, cpt.

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach. 3/8 x 1

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

667740R1

KNIFE GUIDE, feed opening top sheet

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8 x 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga.

2шт.

20

662248R2

OPENING, front feed

1шт.

137352

SCREW, tr. hd. sl. 1/4 x 5/8

5шт.

120572

SCREW, tr. hd. sl. 1/4 x 3/4

1шт.

109084

NUT,1/4"-20, G5

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

127507H

WASHER

13/32 x 7/8 x 7 ga.

1шт.

21

672150R1

DEFLECTOR

feed opening

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
