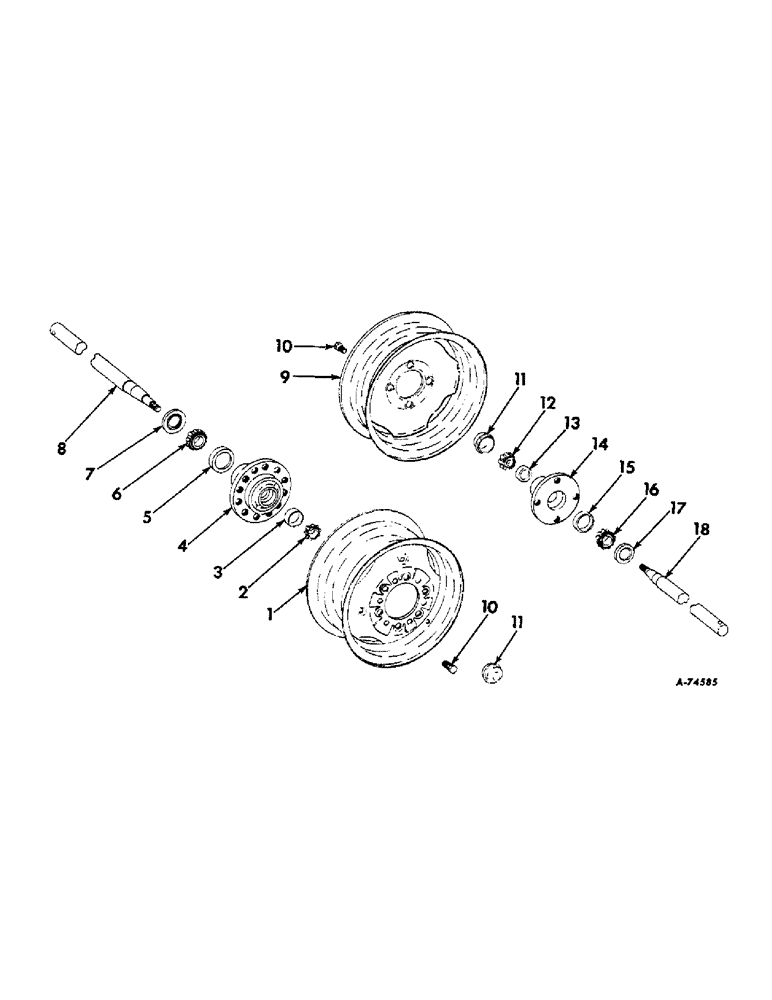

Запчасти Case IH 47 (B-11) - WHEELS AND AXLES
№
Артикул
Название
Примечание
Количество
1
518823R91
WHEEL
DISK AND RIM, left wheel
1шт.
2
519467R91
BEARING ASSY,0.8125" ID x 1.939" OD x 0.848"
CONE, left wheel bearing outer
1шт.
3
M32951
BEARING CUP,0.75" ID x 1.938" OD x 0.78125"
CUP, left wheel bearing outer
1шт.
4
662993R11
HUB
W/BEARING CUPS & BOLTS, L. wheel
1шт.
5
54628H
BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"
CUP, left wheel bearing inner
1шт.
6
453279R91
ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"
CONE, left wheel bearing inner
1шт.
7
661876R91
OIL SEAL
SEAL, left wheel bearing
1шт.
8
668738R1
SPINDLE
L. wheel
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
SCREW, 1/2-13 x 2-3/4 cd-pltd hex-hd cap
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
427639
SLOTTED NUT,3/4"-16, G5
NUT, slotted 3/4 NF
1шт.
615168R1
WASHER
25/32 x 1-1/2 x 11 ga.
1шт.
103397
COTTER PIN,5/32" x 1 1/4"
Pin, Split (Cotter), 5/32" x 1 1/4"
1шт.
9
662994R91
WHEEL
DISC & RIM RIGHT WHEEL
1шт.
10
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
wheel
10шт.
11
651194R1
CAP
hub
2шт.
12
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
CONE, right wheel bearing outer
1шт.
12
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
13
651814R1
BEARING CUP
CUP, right wheel bearing outer
1шт.
14
663054R91
HUB
W/BEARING & CUPS AND BOLTS
1шт.
15
651817R1GV
BEARING CUP
Value, Bearing Cup
1шт.
17
663004R91
OIL SEAL
right wheel bearing
1шт.
18
662981R1
SPINDLE
R. wheel
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
SCREW, 1/2-13 x 2-3/4 cd-pltd hex-hd cap
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
21/32 x 1-5/16 x .095
1шт.
103396
PIN, SPLIT (COTTER),5/32" x 1"
5/32" x 1"
1шт.
Выбрано товаров: 32
