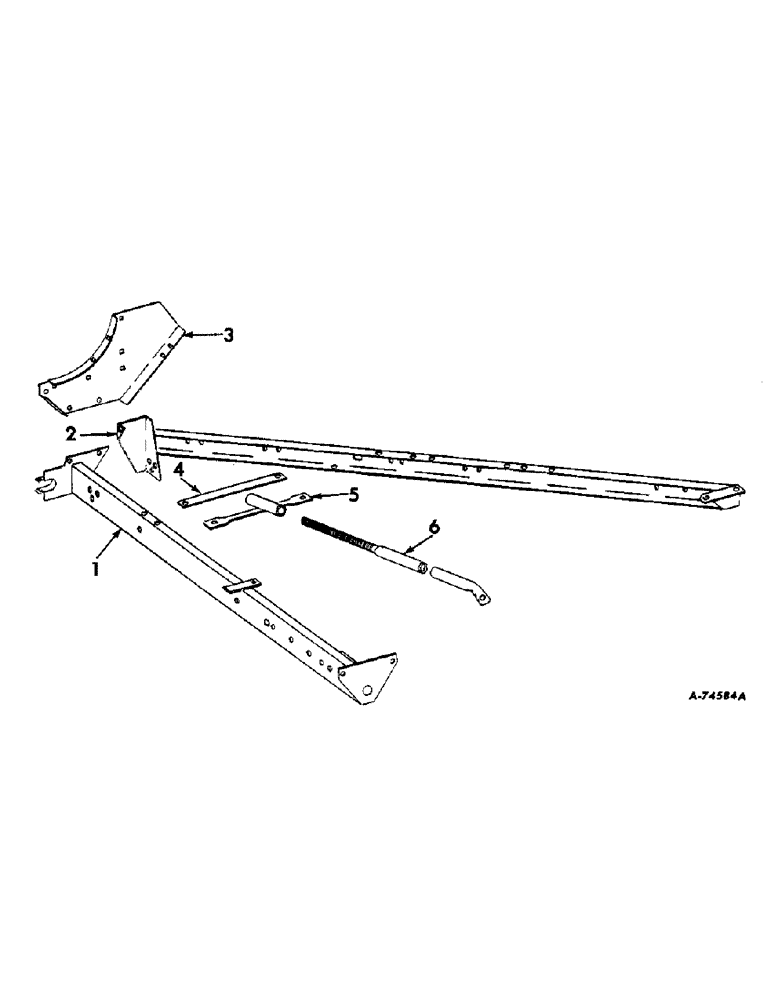

Запчасти Case IH 47 (B-10) - MAIN FRAME

1

662988R95

AXLE

1шт.

17427R1

BOLT, mach, 7/16 x 1

2шт.

NLS

NO LONGER SERVICED

7/16

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

662358R94

BRACE, diagonal

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge, 3/8 x 1

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17427R1

BOLT, mach, 7/16 x 1

2шт.

NLS

NO LONGER SERVICED

7/16

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

662148R1

GUSSET

axle R.

1шт.

17427R1

BOLT, mach, 7/16 x 1

2шт.

NLS

NO LONGER SERVICED

7/16

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

665582R1

STRAP, diagonal brace stiffener, 37 Baler 501G thru 7454 K, 47 Baler 501G thru 8820 K

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

671627R91

TIE ASSY, main frame, 37 Baler 7455L up, 47 Baler 8821L up

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

671725R91

SUPPORT ASSY, bale chamber, 37 Baler 7455L up, 47 Baler 8821L up

1шт.

220081

NUT

3/4-10 hex.

2шт.
