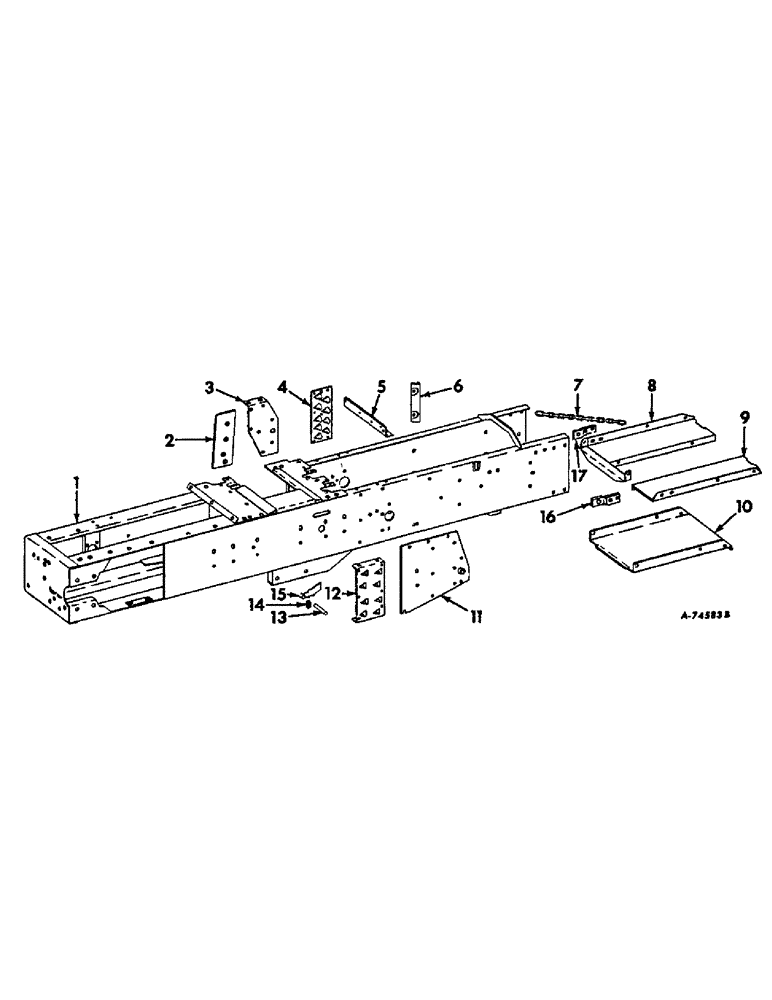

Запчасти Case IH 47 (B-08) - BALE CHAMBER

1

667636R92

CHAMBER BALE CPT.

1шт.

2

667684R2

KNIFE

hay

1шт.

15588R1

PLOW BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, PLOW, , Repair Hd 5/8"-11 x 1 1/2", G2, Full Thd

3шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

667683R11

SUPPORT

twister right, for wire Balers

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

662294R3

PLATE

hay retainer R.

1шт.

14995R1

BOLT

cge. 3/8 x 3/4, for wine Balers, 3 for twine Balers

1шт.

102635

NUT,3/8"-16, G5

For wire Balers, 3 for twine Balers 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , For Wire Balers, 3 for Twine Balers 3/8"

1шт.

5

662147R2

ANGLE

ANCHOR, bale chamber tension, for 37T and 47T Balers

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach. 3/8 x 1

4шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

2шт.

6

5179PA

WEDGE

hay retainer, for wire Balers

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

495526R1

CHAIN (AG)

CHAIN BALE CHAMBER EXTENSION HOLDUP, regular for 47 baler, special for 37 Baler

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 short-sq-nk

2шт.

657803R1

NUT, wing 5/16

2шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga cd-pltd

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, cge. 7/16 x 1-1/4

2шт.

NLS

NO LONGER SERVICED

7/16

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

8

667689R92

EXTENSION, bale chamber right, regular for 47 Baler, special for 37 Baler

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga.

2шт.

9

667692R2

EXTENSION, bale chamber left, regular for 47 Baler, special for 37 Baler

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach. 3/8 x 3/4

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

667693R1

EXTENSION

bale chamber, special for 37 Baler

1шт.

14996R1

BOLT, cge. 7/16 x 3/4

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

11

667681R11

SUPPORT, twister left, for wire Balers

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

6шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach. 3/8 x 1

1шт.

102635

NUT,3/8"-16, G5

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

12

662215R4

PLATE

hay retainer LH

1шт.

14995R1

BOLT

3/8 x 3/4 crg, 6 for 37T and 47T Balers

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 plow

2шт.

102635

NUT,3/8"-16, G5

8 for 37T and 47T Balers, 2 for 37W and 47W Balers 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 8 for 37T and 47T Balers; 2 for 37W and 47W Balers 3/8"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

13

667685R1

PIN

hay retainer

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

14

668869R1

SPRING

hay retainer

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 short sq-nk crg type 2 C-Z, for twin Balers

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 short sq-nk crg type 2 C-Z, for wire Balers

1шт.

15543R1

BOLT

plow, 3/8 x 3/4

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

102635

NUT,3/8"-16, G5

3шт.

15

662007R2

RETAINER

hay, for 47 Balers

2шт.

16

669645R1

BRACKET, bale chamber extension LH, for 47 Balers

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

669646R1

BRACKET, bale chamber extension RH, for 47 Balers

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
