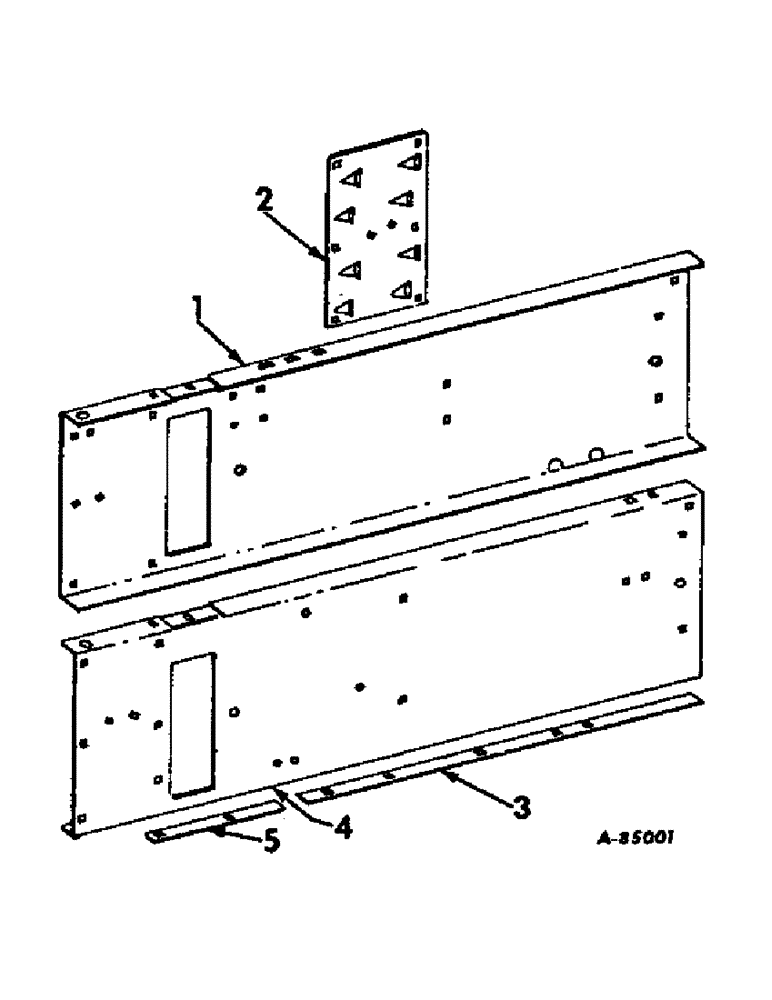

Запчасти Case IH 47 (B-67) - HEAVY DUTY BALE CHAMBER ATTACHMENT

1

671954R91

STIFFENER ASSY, bale chamber RH

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

10шт.

15039R1

BOLT

3/8 x 1-1/2 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

2

671960R2

PLATE

hay retainer LH

1шт.

3

671959R1

FILLER, bale chamber stiffener rear

2шт.

4

671953R91

STIFFENER ASSY, bale chamber LH

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

8шт.

15039R1

BOLT

3/8 x 1-1/2 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

5

671958R1

FILLER, bale chamber stiffener front

2шт.
