Запчасти Case IH 47 (B-07) - HITCH

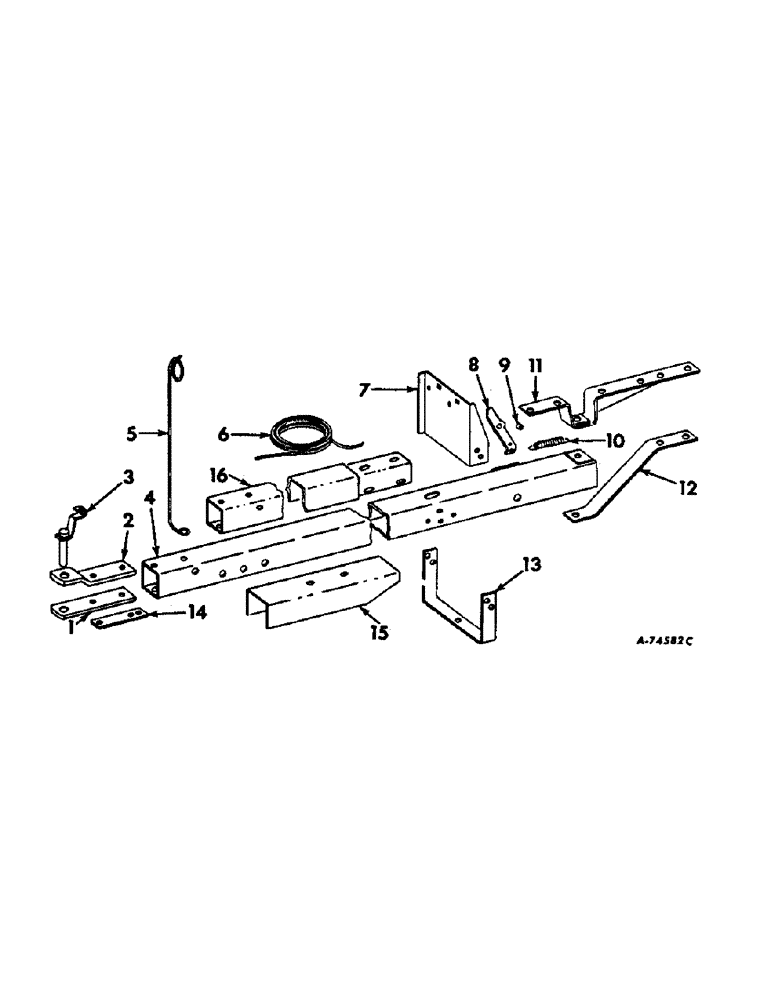

Схема запчастей Case IH 47 - (B-07) - HITCH

Артикул

Название

Примечание

Количество

1

662144R1

STRAP

hitch clevis upper

1шт.

2

662145R1

STRAP

hitch clevis lower

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cd-pltd hex. lock

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 cd-pltd hex-hd cap, for 47 Baler

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 cd-pltd hex-hd cap, for 37 Baler

2шт.

3

668406R91

PIN, hitch cpt., for 37 Baler

1шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable, for 37 Baler

1шт.

Q1238

HEADED PIN,3/4" x 3 1/2"

PIN, 3/4 x 3-1/2 std-hd, for 37 Baler

1шт.

4

667608R92

SPARE PART

HITCH, 47 Baler

1шт.

4

667611R92

HITCH, 37 Baler

1шт.

5

668037R1

SUPPORT

STAND, hitch and pickup rope, for 47 Baler, used with P.T.O. drive parts completing package

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

6

ROPE, hitch latch, purchase locally, 3/8 in. x 13 ft. hemp rope

1шт.

7

667614R91

PLATE, hitch support, for 37 and 47 Balers w/3 knuckle drive shaft

1шт.

7

667617R91

PLATE, hitch support, for 37 Baler w/2 knuckle drive shaft and engine drive

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, cge, 1/2 x 1

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

667622R2

LEVER

hitch

1шт.

9

667623R1

BUSHING

PIVOT, hitch lever

1шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

mach, 1/2 x 4-1/2

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga.

2шт.

10

165

SPRING

hitch lever

1шт.

132-347

COTTER PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

667625R91

PIVOT, hitch, cpt.

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cpa, 7/16 x 1-1/4

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

2шт.

662560R1

BOLT,Hex, 1" - 14 x 6 1/2"

hitch anchor, 1 NF x 6-1/2 cd-pltd

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 C-Z hex.

1шт.

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

12

667628R1

ANGLE

STRAP, anchor hitch pivot

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

667621R1

BRACKET

hitch support, for 37 and 47 Balers w/3 knuckle drive shaft

1шт.

13

667620R1

BRACKET

hitch support, for 37 Baler w/2 knuckle drive shaft and engine drive

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 hex-hd mach

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 cd-pltd lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

668758R1

SPACER

hitch plate

1шт.

15

673164R1

EXTENSION

SECTION ASSY, hitch extension, for 37 Baler w/3 knuckle drive shaft

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

550832R1

WASHER

21/32 x 2 x 11 ga

2шт.

16

671095R91

CHANNEL

ASSY, hitch extension, for 37 Baler w/3 knuckle drive shaft

1шт.

Выбрано товаров: 58
