Запчасти Case IH 47 (B-60[B]) - LIFTING JACK ATTACHMENT, 1963 THRU 1967

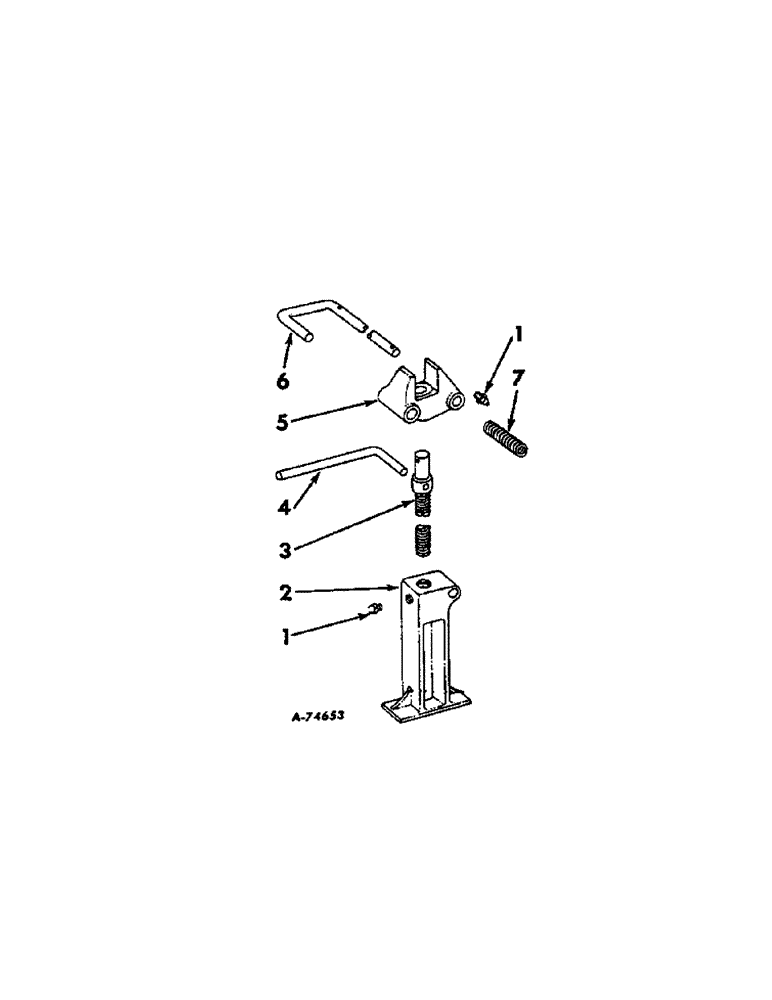

Схема запчастей Case IH 47 - (B-60[B]) - LIFTING JACK ATTACHMENT, 1963 THRU 1967

Артикул

Название

Примечание

Количество

1

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub

2шт.

2

667552R1

STEM, lower jack

1шт.

3

662328R91

SCREW, jackstem cpt.

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga.

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

4

662326R1

HANDLE, jackscrew

1шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga.

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

662052R1

BLOCK, jackstand

1шт.

6

662327R1

ROD

PIN, jackstand lock

1шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga.

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

T249

SPRING

jackstand pivot pin

1шт.

Выбрано товаров: 14
