Запчасти Case IH 47 (B-59[B]) - FLYWHEEL AND BELT SHIELD WHEN ORDERED

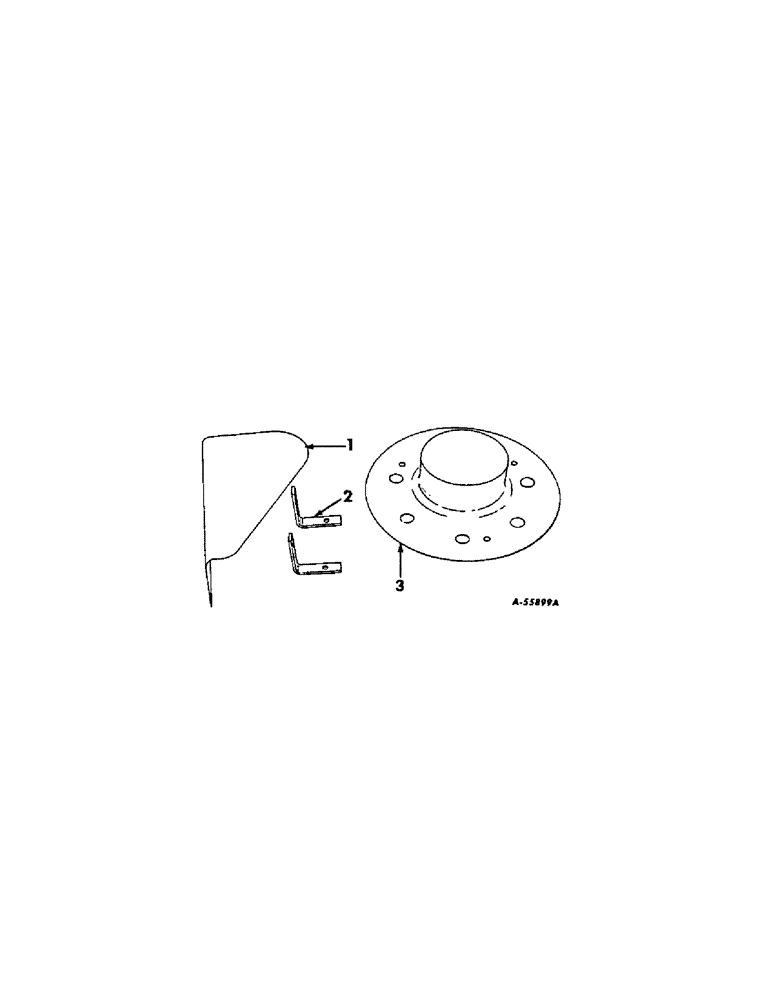

Схема запчастей Case IH 47 - (B-59[B]) - FLYWHEEL AND BELT SHIELD WHEN ORDERED

Артикул

Название

Примечание

Количество

1

671124R91

SHIELD W/PRODUCT GRAPHIC, belt

1шт.

2

663663R1

BRACKET, shield support

2шт.

14995R1

BOLT

cge. 3/8 x 3/4

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach. 3/8 x 1

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

663662R2

SHIELD, flywheel

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach. 3/8 x 3/4

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Выбрано товаров: 9
