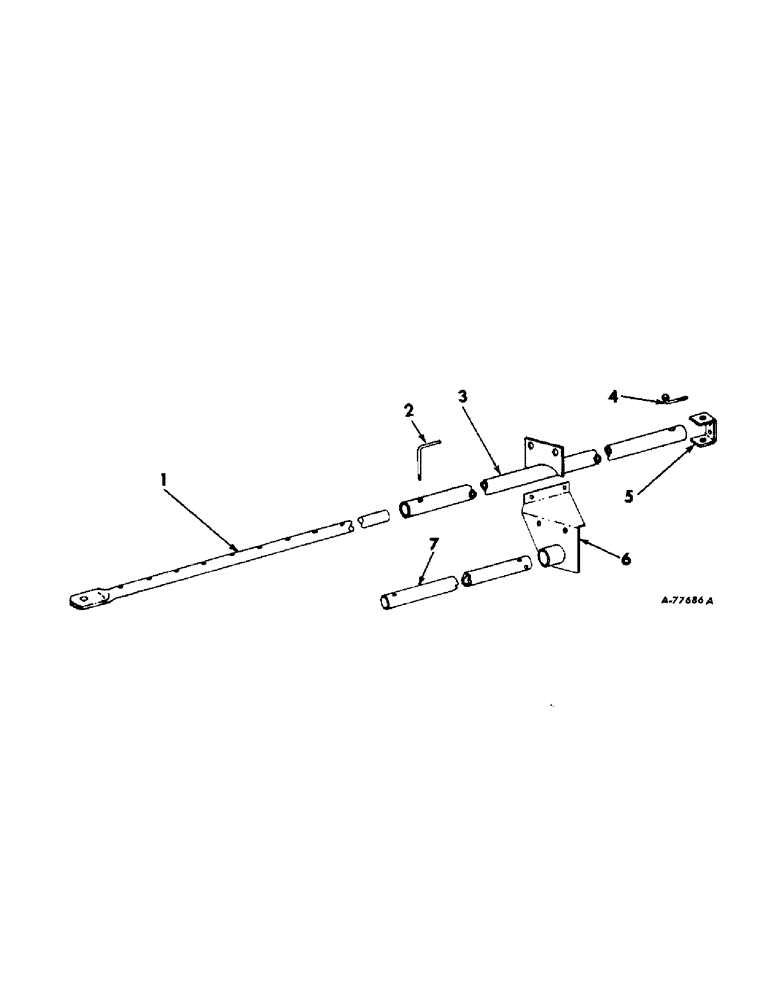

Запчасти Case IH 47 (B-58) - TRAILER HITCH ATTACHMENT, WHEN ORDERED

1

669018R1

BAR

trailer hitch adjusting

1шт.

2

662438R1

PIN

trailer hitch adjusting

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

662435R92

PIPE, trailer hitch, 1963 thru 1965

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 hex. lock

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cd-pltd hex. lock

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

662439R1

BOLT,Hex, 7/16" - 14 x 3", Bent

trailer hitch pipe anchor, 1963

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 hex. lock

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

5

669015R2

ANCHOR

trailer hitch

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

670998R91

PLATE ASSY, trailer hitch, 1966 up

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 hex. lock

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 cd-pltd hex. lock

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

662437R2

PIPE

trailer hitch, 1966 up

1шт.
