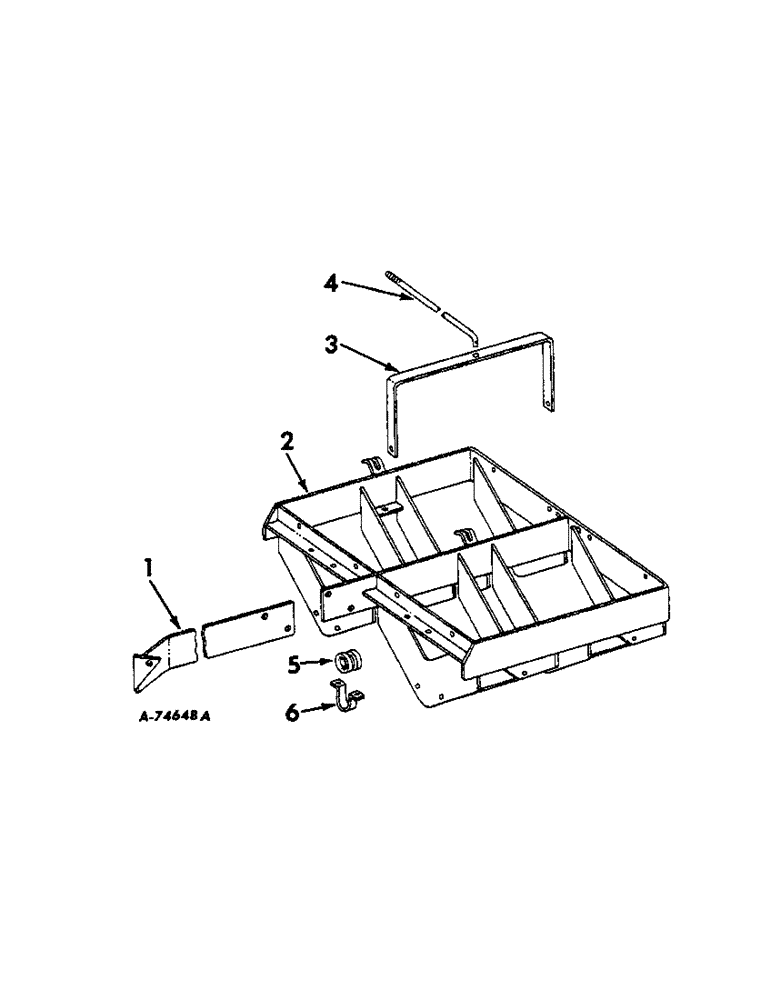

Запчасти Case IH 47 (B-56[A]) - FOUR COIL WIRE CONTAINER FOR WIRE BALERS WHEN ORDERED

1

667854R91

STABILIZER, wire container cpt.

1шт.

17448R1

BOLT (SPREADER)

BOLT, mach. 1/2 x 1-1/4

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15606R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, pl. rep. hd. 5/8 x 1-3/4

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

667845R91

NO LONGER SERVICED

CONTAINER WIRE 4 COIL CPT.

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

667857R1

STRAP

retainer

2шт.

625891R1

PIN,1/4" x 5/8"

std. hd. 1/4 x 5/8

4шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

4шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga

2шт.

4

667858R1

ROD

retainer

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

129-419

WING NUT,5/16"-18

NUT, wing 5/16

2шт.

5

11833PB

GUIDE

wire

2шт.

6

11792P

HOLDER

BRACKET, wire guide

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

mach. 1/4 x 3/4

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
