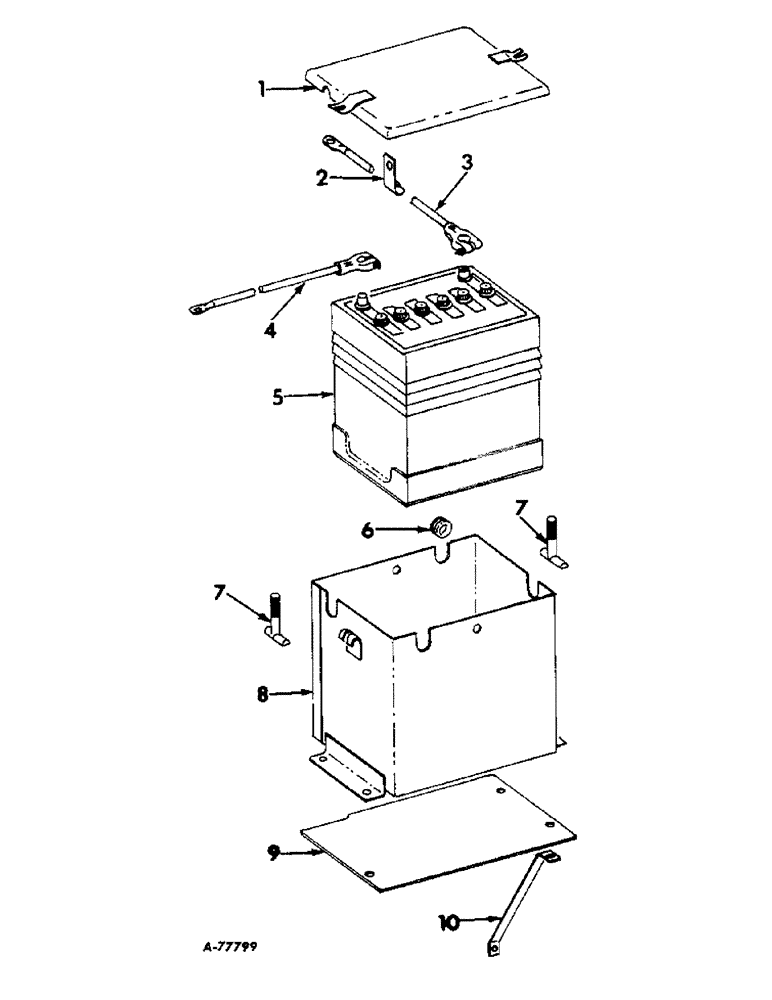

Запчасти Case IH 47 (B-55) - WISCONSIN ENGINE ATTACHMENT ELECTRICAL SYSTEM, 12 VOLT

1

671087R91

COVER ASSY, battery box, units C, D, and E

1шт.

2

56277D

CLIP, cable, units C, D, and E

1шт.

3

672143R91

CABLE, battery to starter, units C, D, and E

1шт.

4

672144R91

CABLE ASSY, battery to ground, units C, D, and E

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

387258R91

BATTERY, Prestolite 2005X, 12 volt, units C, D and E, not a part of engine attachment

1шт.

6

52118D

GROMMET

battery box, units C, D, and E

1шт.

7

50939DA

SPECIAL BOLT,1/4" - 20 x 2 1/4"

battery box cover holddown, units C, D, and E

2шт.

665621R1

NUT, 1/4-20 wing

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

2шт.

8

671086R91

BODY ASSY, battery box, units C, D, and E

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

672145R1

PLATE, battery support, units C, D, and E

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

672146R1

BRACE, battery support plate, units C, D, and E

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
