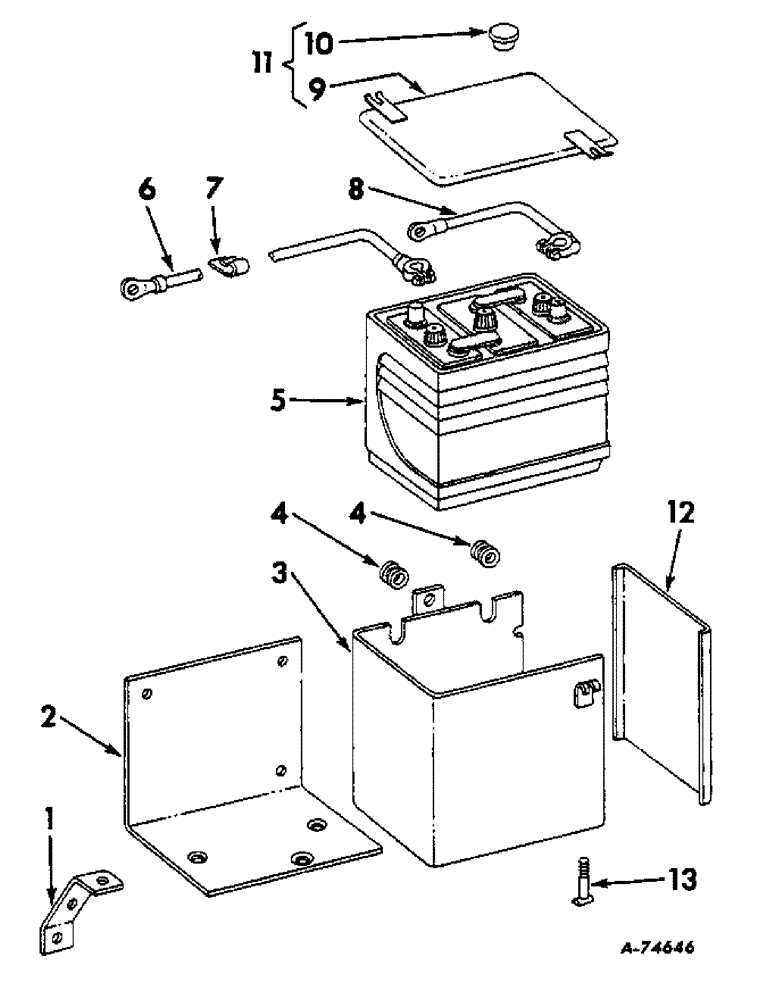

Запчасти Case IH 47 (B-54) - WISCONSIN ENGINE ATTACHMENT ELECTRICAL SYSTEM, 6 VOLT

1

662345R1

BRACKET, battery support rear, units C, D, and E

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 cd-pltd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

662347R2

PLATE, battery support, units C, D, and E

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 cd-pltd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

133901

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

3/8 x 1 cd-pltd slt-fil-hd

2шт.

437690

SCREW, 7/16 x 3/4 cd-pltd slt-fil-hd

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 cd-pltd hex.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

661232R91

BODY, battery box, units C, D, and E

1шт.

4

52118D

GROMMET

battery box, 2 for units C, D, and E

1шт.

5

355192R92

BATTERY, IHPRT, 6 volt, units C, E, not a part of engine attachment

1шт.

6

663457R91

CABLE, battery to starting switch, units C, D, and E

1шт.

7

56277D

CLIP, cable, units C, D, and E

1шт.

8

69510DA

CABLE

battery to ground, units C, D, and E

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 cd-pltd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

(Not serviced separately), order 661226R91

1шт.

10

51690D

RUBBER, battery hold down, 2 for units C, D, and E

1шт.

11

661226R91

COVER, battery box, units C, D, and E

1шт.

12

661236R1

BOX, battery front, units C, D, and E

1шт.

13

50939DA

SPECIAL BOLT,1/4" - 20 x 2 1/4"

battery box cover hold down, 2 for units C, D, and E

1шт.

665621R1

NUT, 1/4 wing

2шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

2шт.
