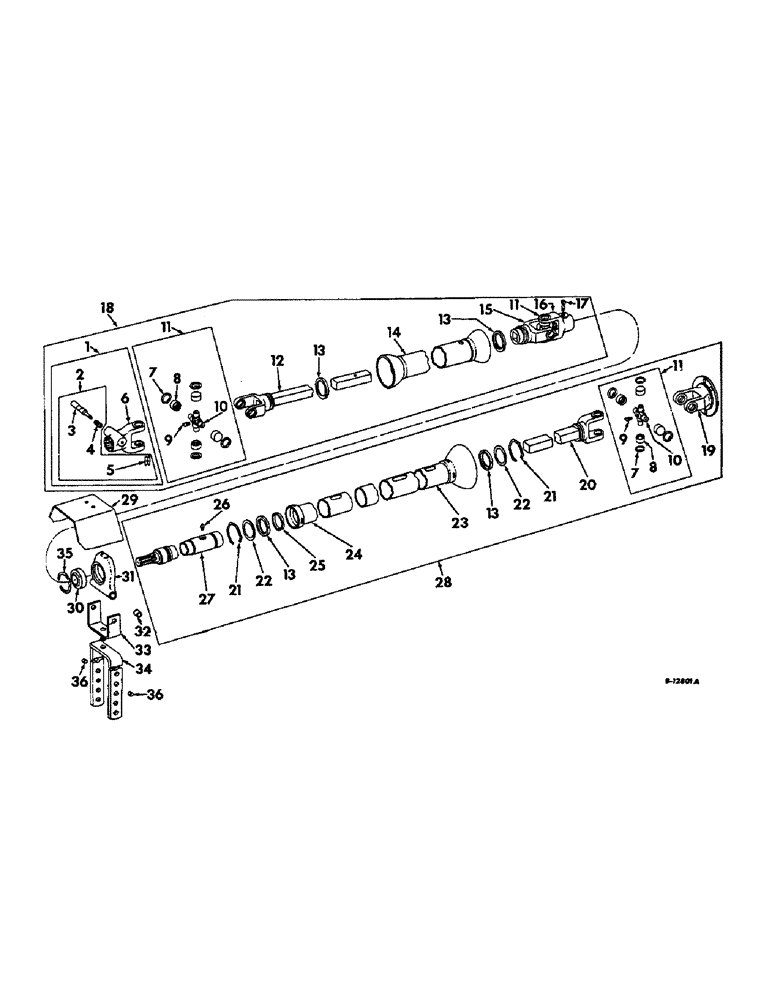

Запчасти Case IH 47 (B-48) - POWER TAKE-OFF DRIVE SHAFTS, THREE KNUCKLE

1

568100R92

YOKE

W/LOCK PIN

1шт.

1

660484R21

FORK

YOKE W/LOCK PIN, for heavy duty three-knuckle drive shaft

1шт.

2

455346R21

PIN

lock

1шт.

3

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 568100R92 or 660484R21

1шт.

4

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

5

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock

1шт.

6

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 568100R92 or 660484R21

1шт.

7

576420R1

RING

snap

12шт.

7

495962R1

RING

snap, for heavy duty three-knuckle drive shaft

12шт.

8

569044R91

BEARING ASSY

needle

12шт.

8

661671R91

JOINT

BEARING, needle, for heavy duty three-knuckle drive shaft

12шт.

9

271284

YOKE

1/8-27 65 deg, replaces 109460

3шт.

10

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 569047R91 or 660116R91

1шт.

11

569047R91

REPAIR KIT

KIT, cross repair

3шт.

11

660116R91

NUT

KIT, cross repair, for heavy duty three-knuckle drive shaft

3шт.

12

666734R91

YOKE

AND SHAFT

1шт.

12

666741R91

YOKE

AND SHAFT, for heavy duty three-knuckle drive shaft

1шт.

22970R1

LOCK PIN,3/8" x 2", Slotted

Pin, , replaces 577247R1 3/8" x 2", Slotted

1шт.

13

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

4шт.

14

666735R91

SHIELD

1шт.

14

666742R91

SHIELD, for heavy duty three-knuckle drive shaft

1шт.

15

666736R1

YOKE

1шт.

15

666743R1

YOKE

for heavy duty three-knuckle drive shaft

1шт.

16

576433R2

YOKE

splined, Replaces 573433R1

1шт.

16

660489R1

YOKE

splined, for heavy duty three-knuckle drive shaft

1шт.

17

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, set

1шт.

124934

HOSE

1/2-20 znd hex. jam

1шт.

18

666729R91

SHAFT, front half

1шт.

18

666731R91

GASKET

SHAFT, front half, for heavy duty three-knuckle drive shaft

1шт.

19

663101R91

YOKE

flanged

1шт.

19

674862R1

YOKE

flanged, for heavy duty three-knuckle drive shaft

1шт.

20

666737R91

YOKE

AND SHAFT

1шт.

20

666744R91

YOKE

AND SHAFT, for heavy duty three-knuckle drive shaft

1шт.

21

613436R1

CLAMP

SNAP RING

2шт.

22

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

23

666739R91

SHIELD, outer

1шт.

23

666745R91

SHIELD, outer, for heavy duty three-knuckle drive shaft

1шт.

24

666738R91

SHIELD, inner

1шт.

24

666746R91

RETAINER

SHIELD, inner, for heavy duty three-knuckle drive shaft

1шт.

25

613439R1

BRACKET

BEARING, inner shield

1шт.

26

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lubrication

1шт.

26

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str self-tap. lub, for heavy duty three-knuckle drive shaft

1шт.

27

666740R91

SHAFT

TUBE AND SLEEVE

1шт.

27

666747R91

TUBE ASSY.,2.125" OD, 24.625" Length

TUBE AND SLEEVE, for heavy duty three-knuckle drive shaft

1шт.

28

666730R91

SHAFT, rear half

1шт.

28

674861R91

SHAFT, rear half, for heavy duty three-knuckle drive shaft

1шт.

29

667798R11

SHIELD

W/PRODUCT GRAPHIC, PTO brg box

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

ST669

BEARING ASSY,35mm ID

BEARING, power take-off shaft front

1шт.

The bearing is actually part of Ref. 31 and the bracket is not shown on the illustration. The bracket is P/N 667461R1.

1шт.

31

ST669

BEARING ASSY,35mm ID

BEARING, power take-off shaft, front

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

667460R1

BUSHING

power take-off shaft brg

1шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 hex-hd cap

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

33

667462R1

BRACKET

power take-off shaft brg pivot

1шт.

34

667790R91

BRACKET

PEDESTAL, power take-off

1шт.

662086R1

SCREW, 1/2-20 x 5-1/4 dld hex-hd cap

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 13 ga

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

35

UA20551

RING

SNAP RING, propellar shaft bearing snap

1шт.

36

674732R1

SPACER

WASHER

2шт.
