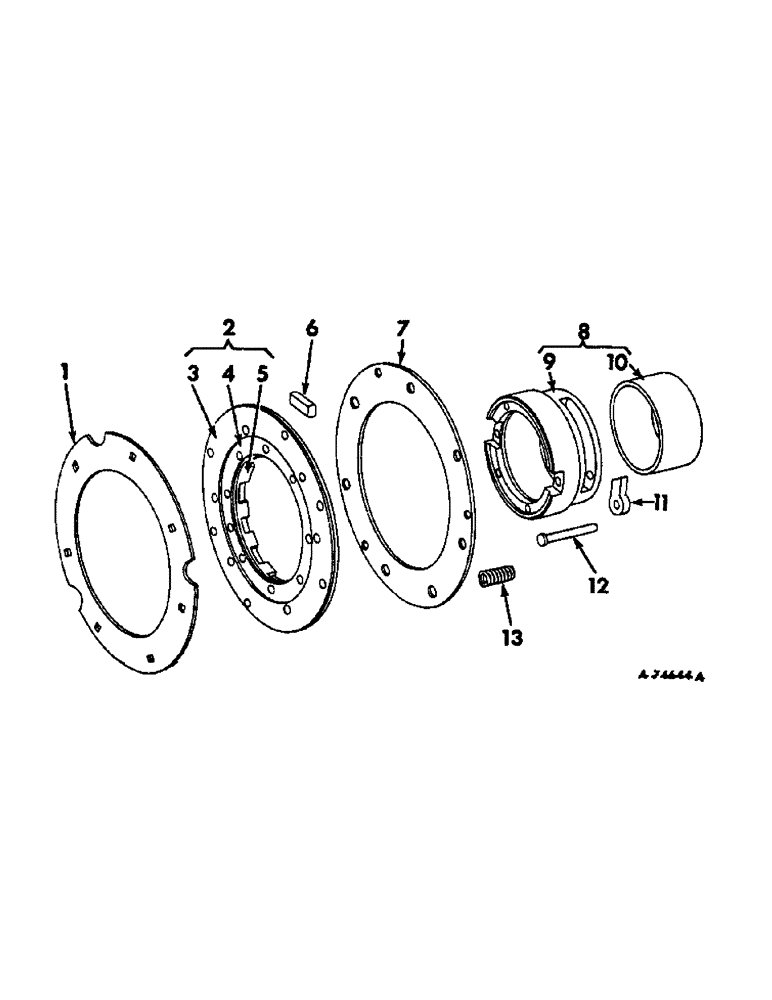

Запчасти Case IH 47 (B-47) - POWER TAKE-OFF DRIVE SHAFT CLUTCH, WHEN ORDERED

1

662270R1

PLATE

clutch pressure

1шт.

2

662043R91

DISC

clutch cpt.

1шт.

3

662045R11

FACING, CLUTCH

FACING W/RIVETS

1шт.

113342

RIVET,Tr Hd, 3/16" x 3/8", Brass

12шт.

4

662046R1

DISC, clutch

1шт.

13837R1

RIVET, csk. hd. 1/4 x 5/8

10шт.

5

662044R1

HOUSING, clutch lug

1шт.

6

664546R11

SPACER

clutch assy., set of 7

1шт.

7

662269R1

PLATE

clutch back

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach, 3/8 x 1

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

662014R11

CARRIER

CLUTCH W/BUSHING, overrunning

1шт.

9

(Not serviced separately), order 662014R11

1шт.

10

662078R1

BUSHING

overrunning clutch

1шт.

17447R1

BOLT

mach. 7/16 x 1-1/4

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

11

662241R1

RATCHET

DOG, overrunning clutch

2шт.

12

662558R1

PIN

rod end .496 x 1-7/8

2шт.

13

M1015

SPRING

clutch

7шт.

15144R1

BOLT

1/2 x sq-nk crg

7шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 hex. lock

7шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

7шт.
