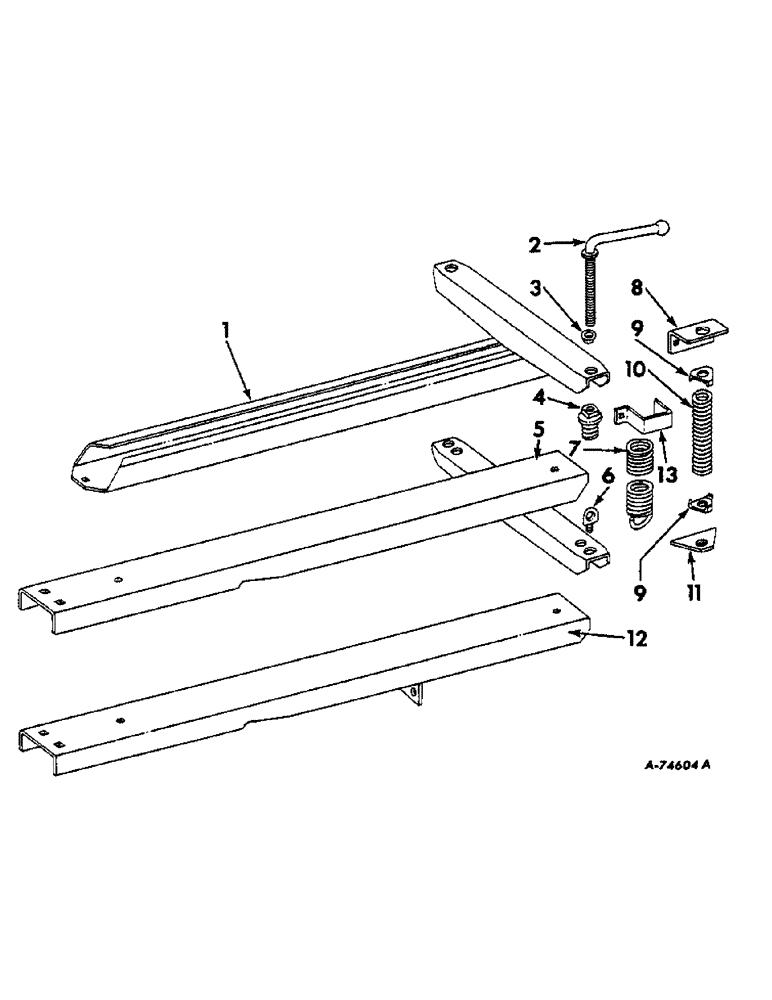

Запчасти Case IH 47 (B-42) - MANUAL BALE TENSION DEVICE, WHEN ORDERED

1

667829R91

CHANNEL, upper tension cpt.

1шт.

2

662385R11

SCREW, tension adjusting, for 47 Baler

2шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga.

2шт.

2

667994R11

SCREW, tension adjusting, for 37 Baler

2шт.

3

656934R1

BUSHING

PILOT, tension adj. screw

2шт.

4

662028R1

PLUG

tension spring, for 47 Baler

2шт.

5

667686R91

CHANNEL, lower tension, for 47 Baler

1шт.

6

26489B

EYEBOLT, spring anchor, for 47 Baler

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga.

2шт.

7

662384R1

SPRING

bale chamber tension, for 47 Baler

2шт.

8

667993R1

SUPPORT, upper tension channel spring, for 37 Baler

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short-sq-nk-crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

667837R1

COLLAR, manual tension spring, for 37 Baler

4шт.

10

667838R1

SPRING

manual tension, for 37 Baler

2шт.

11

667995R11

PLATE, bale chamber tension adjusting, for 37 Baler

2шт.

12

667981R91

CHANNEL, lower tension, for 37 Baler

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach.

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

668764R1

STRAP, tension spring

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 cd pltd short sq nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
