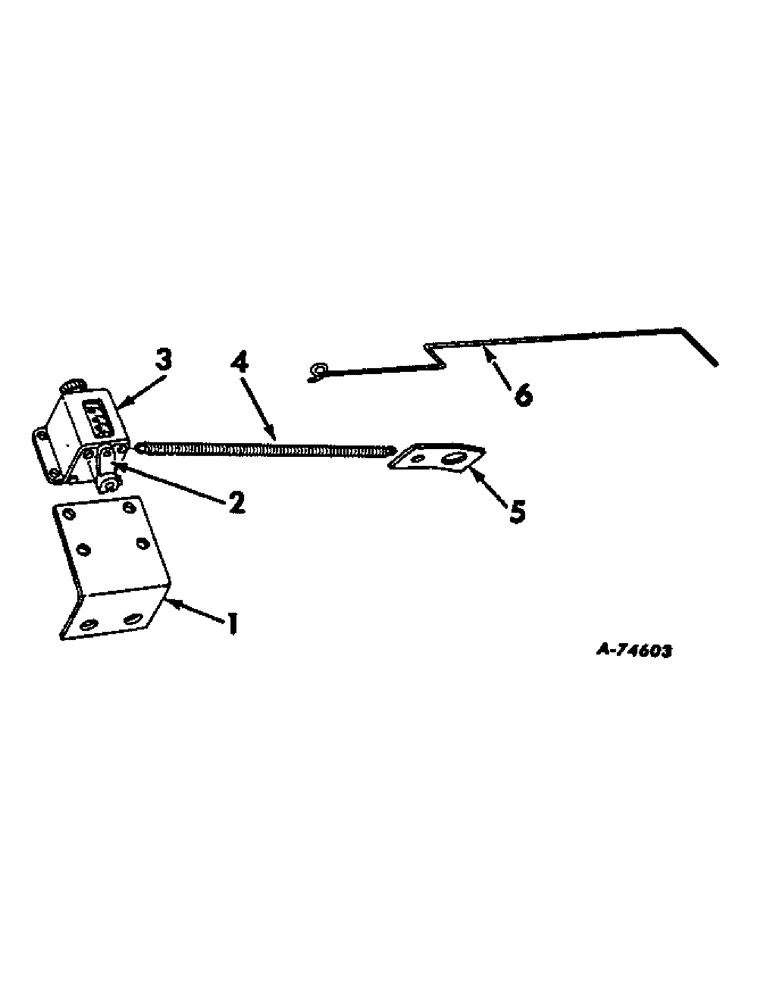

Запчасти Case IH 47 (B-41) - BALE COUNTER, REGULAR FOR 47 BALERS, SPECIAL FOR 37 BALERS, PRODUCT GRAPHICS

1

662364R1

BRACKET

MOUNT, bale counter, for twine Balers

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

rd. hd. sl. 1/4 x 5/8

2шт.

109084

NUT,1/4"-20, G5

1/2

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

656707R91

ARM

W/SET SCREW, bale counter, 47 Balers only

1шт.

3

495046R92

COUNTER

bale

1шт.

4

495525R1

SPRING

bale counter

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , For 47 Balers 1/8" x 1"

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), , For 37T Baler 1/8" x 2"

1шт.

5

663718R1

CLIP, bale counter, for twine Balers

1шт.

6

667828R1

EXTENSION

bale counter spring, for wire Balers

1шт.

668326R91

KIT, product graphic service, for 47 Baler

1шт.

668327R91

KIT

product graphic service, for 37 Baler

1шт.

2750078R1

PRODUCT GRAPHIC

IH, on both sides of rear bale chamber

2шт.

2750503R1

PRODUCT GRAPHIC

IH, for 37 Baler, on front of packer bearing shield

1шт.

2751268R1

PRODUCT GRAPHIC

INTERNATIONAL, for 37 Baler, replaces 2751049R1, on left bale chamber side

1шт.

2751271R1

PRODUCT GRAPHIC

INTERNATIONAL, 2 for 37 Baler, 1 for 47 Baler, 1 on twine can door or back sheet for 37 and 47 Balers 1 on cross conveyor side sheet for 37 Baler

1шт.
