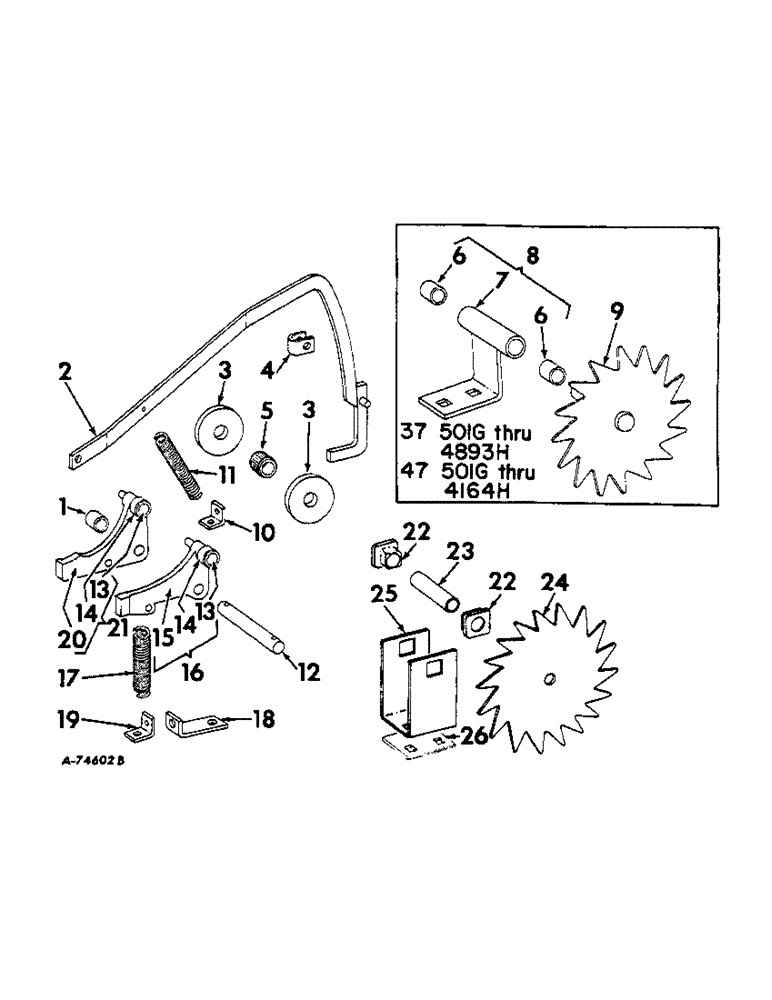

Запчасти Case IH 47 (B-40) - BALE LENGTH CONTROL

1

667788R1

SPACER, trip arm, for twine Baler

1шт.

2

662279R94

MOUNTING ROD

ROD, trip, cpt., for twine Balers, for service replacement of 662279R93 also order 670669R1, collar

1шт.

2

664779R93

ROD, trip, cpt., for wire Balers, for service replacement of 664779R92 also order 670669R1, collar

1шт.

19269R1

LOCK PIN,3/8" x 1", Slotted

PIN, 3/8" x 1", Slotted

1шт.

3

667782R1

SHEAVE

trip rod

2шт.

17845R1

BOLT, 5/8-11 x 5-1/2 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

670669R1

COLLAR

trip set, used with 1 in. trip rods

1шт.

4

666748R2

COLLAR, trip set, used with 3/4 in. trip rods

1шт.

NLS

NO LONGER SERVICED

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga.

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

5

667781R1

ROLLER

trip rod

1шт.

6

667778R1

BUSHING

trip sheave brg, 37-501G thru 4893H, 47-501G thru 4164H

2шт.

7

(Not serviced separately), order 667450R92

1шт.

8

667450R92

SUPPORT W/BUSHINGS, trip sheave brg 37-501G thru 4893H, 47-501G thru 4164H

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 crg

2шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8 x 1-3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

9

667452R91

WHEEL, meter 37-501G thru 4893H, 47-501G thru 4164H

1шт.

551659R1

WASHER

29/32 x 1-1/2 x 22 ga

4шт.

10

668082R1

ANCHOR

spring trip

1шт.

15039R1

BOLT

3/8 x 1-1/2 crg

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

3/8 x 1-1/2 plow

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

6646

SPRING

trip rod

1шт.

12

662072R1

NO LONGER SERVICED

STUD, trip arm, for twine Baler

1шт.

12

664778R1

PIN

STUD, trip arm, for wire Baler

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga. (or as req.)

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

13

662020R1

STUD

trip arm roller

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

28035K

WASHER

13/32 x 1 x 22 ga.

1шт.

14

662019R1

ROLLER,28.57mm OD x 12.7mm L

trip arm

1шт.

15

(Not serviced separately), order 663163R21

1шт.

16

663163R21

ARM

trip, for wire Baler

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

17

70733H

SPRING

trip, for wire Baler

1шт.

17

101330H

SPRING

trip, for twine Baler

1шт.

18

668329R1

ANCHOR, spring trip, for wire Baler

1шт.

19

668082R1

ANCHOR

spring trip, 2 for twine Balers, 1 for wire

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach, for twine Balers

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) For twine balers 3/8"-16 x 1 1/4", G2, Full Thd

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15039R1

BOLT

3/8 x 1-1/2 crg, for wire Balers

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

3/8 x 1-1/2 plow, for wire Balers

1шт.

20

(Not serviced separately, order 662018R11

1шт.

21

662018R11

LEVER

ARM, trip, for twine Baler

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

22

668999R1

BUSHING

meter wheel flanged, 37-4894H up, 47-4165H up

2шт.

23

669000R1

TUBE, meter wheel shaft 37-4894H up, 47-4165H up

1шт.

24

669001R1

WHEEL, bale length control 37-4894 up, 47-4165H up

1шт.

25

668998R1

BRACKET, meter wheel shaft brg, 37-4894H thru 9052L, 47-4165H thru 12029L, for service replacement of 668998R1 order 670665R1 bracket and 670670R1 spacer, also 2 each 15023R1 bolt, 102635 nut, 103321 washer

1шт.

25

670665R1

BRACKET, meter wheel shaft brg, 37-9053L, up, 4712030L, up

1шт.

26

670670R1

SPACER, meter wheel bracket, 379053L up, 4712030L up

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, cge. 3/8 x 1-1/4

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.
