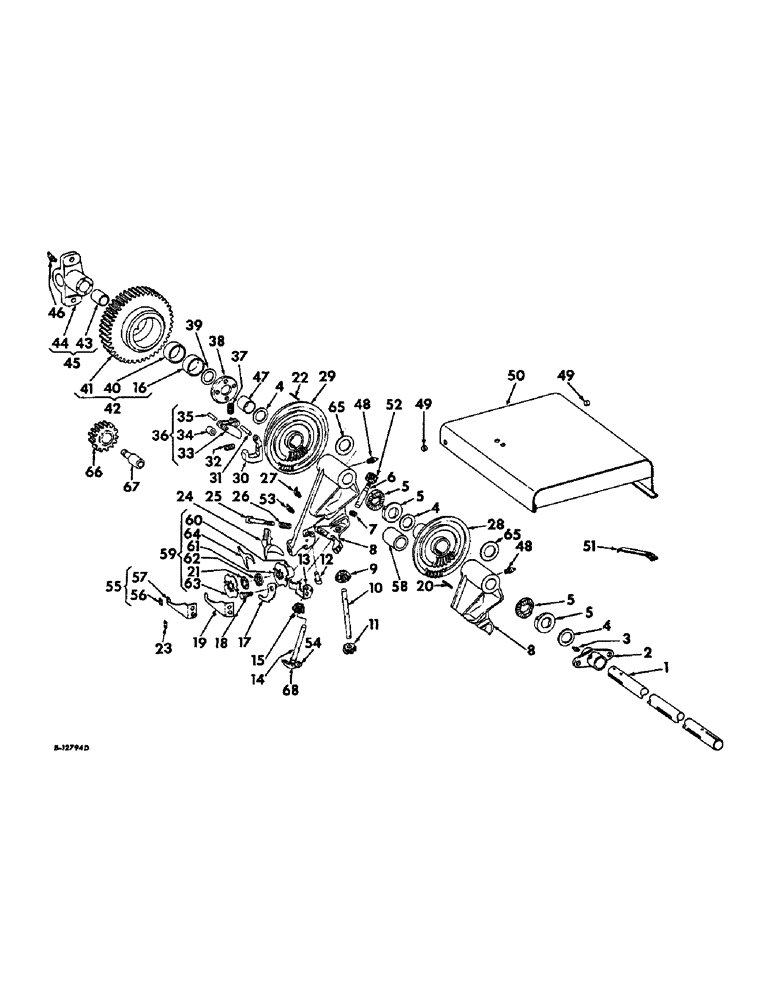

Запчасти Case IH 47 (B-33) - KNOTTER AND KNOTTER COVER, FOR TWINE BALER

1

667812R1

SHAFT

knotter

1шт.

2

667818R1

FLANGE

BEARING, knotter shaft left

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach. 3/8 x 1-1/4

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub

1шт.

4

21747R1

WASHER,1.22" ID x 2" OD x 0.07" Thk

1-7/32 x 2 x 16 ga C-Z (or as required), replaces Q140

4шт.

5

667813R1

COLLAR CLAMP

COLLAR, knotter shaft adjusting

4шт.

443100

STUD

rd. hd. drive #12

4шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

Q120

WASHER

1-7/32 x 2 x 22 ga

1шт.

615264R1

WASHER

1-7/32 x 1-3/4 x 16 ga

1шт.

Q251

WASHER

1-7/32 x 2 x 22 ga

1шт.

6

668415R1

SPINDLE

cord holder

2шт.

7

667239R1

DISC

SHIM, knotter hook shaft and cord holder spindle

10шт.

8

668956R91

KNOTTER ASSY, see Note A

2шт.

8

668957R11

FRAME W/BEARING PIECE, knotter, long wear part

2шт.

8

666510R92

KNOTTER ASSY.

KNOTTER ASSEMBLY

2шт.

8

495965R94

KNOTTER ASSY.

FRAME W/WEARING PIECE, knotter

2шт.

9

495192R3

GEAR

PINION, cord holder drive bevel

2шт.

9

668958R1

NO LONGER SERVICED

PINION, cord holder drive bevel, long wear part

2шт.

10

495433R1

SHAFT HOUSING

SHAFT, cord holder drive

2шт.

Q5066

PIN

str. 6 ga. x 31/32

4шт.

Q232

WASHER

37/64 x 15/16 x 20 ga (or as req.)

4шт.

Q3476

WASHER

37/64 x 15/16 x 22 ga. (or as req.)

4шт.

11

495425R1

GEAR

PINION, cord holder helical

2шт.

11

668960R1

GEAR

PINION, cord holder helical, long wear part

2шт.

12

V618H

SPACER

PIECE, knotter frame wearing

2шт.

117898

PIN

str 5/32 x 1-1/16

2шт.

13

667408R1

SPRING

twine end retainer

2шт.

14

666511R92

TWISTER

HOOK, knotter cpt.

2шт.

15

668959R1

GEAR

PINION, Bill Hook, long wear part

2шт.

15

495197R3

GEAR

PINION, Bill Hook

2шт.

Q3854

PIN

str. 6 ga. x 27/32

2шт.

16

667826R1

BUSHING

knotter drive gear L H, 37501G thru 6078K, 47501G thru 6213K

1шт.

16

669644R1

BUSHING

knotter drive gewar LH, 376079K up, 476214K up

1шт.

17

668963R1

HOLDER

BLADE, cord holder keeper, long wear part

2шт.

17

495474R3

SHIM

BLADE, cord holder keeper

2шт.

18

495432R1

SCREW

STUD, cord holder keeper pivot

2шт.

19

495463R4

KNIFE

twine, optional w/668961R21

2шт.

Note on part number is when replacing with 668961R21 knife, you will also have to shim with spacer 200425C1. Usually four are needed.

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 cd-pltd hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 cd or zn-pltd

12шт.

20

Q22

KEY

str. 3/8 x 1/4 x 2-1/4

1шт.

21

495504R1

SHIM

cord holder, (or as required)

6шт.

21

667238R1

SHIM

cord holder .003 (or as req.)

4шт.

21

667547R1

SHIM, cord holder .005 plastic

4шт.

22

Q3728

KEY,Gib, 3/8" Sq x 2 1/8" Tap

3/8 x 2-1/8 sq tapered

1шт.

23

200425C1

SPACER

twine knife, (or as required)

6шт.

24

667563R1

CAM

knotter jaw closing

2шт.

25

667533R1

BOLT,3/8" - 16 x 2 7/8"

special 3/8 x 2-7/8

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 lock

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga.

4шт.

17447R1

BOLT

mach. 7/16 x 1-1/4

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga.

2шт.

26

U13033

SPRING

knotter closing cam

2шт.

27

19630R91

LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive

FITTING, 1/8-27 PTF 90 deg angle self tapping lub

4шт.

28

668971R2

CAM, knotter left, long wear part

1шт.

28

667819R1

CAM

knotter left

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap. 1/2 x 3

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

29

668970R2

CARRIER

trip dog, long wear part

1шт.

29

667820R2

NO LONGER SERVICED

CARRIER, trip dog

1шт.

443057

GROOVED PIN,3/8" x 2 1/4", Type F

PIN, 3/8 x 2-1/4 groove type 3

1шт.

30

662048R2

PAWL

DOG, auxiliary trip

1шт.

30

671633R91

STRIPPER PACKAGE

PACKAGE, trip dog service, consists of 655712R11 dog w/roller, V341 roller, V690 stud V680 spring, 662048R2 dog, R1003 spring, 664947R1 pivot

1шт.

31

664947R1

PIVOT

trip dog

1шт.

Q134

WASHER, 15/32 x 13/16 x 18 ga (or as required)

1шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga (or as required)

1шт.

32

R1003

SPRING

auxiliary trip dog

1шт.

33

(Not serviced separately), order 655712R11

1шт.

34

V341

PAWL

ROLLER, trip dog

1шт.

35

V690

PIN

STUD, trip dog roller

1шт.

36

655712R11

PAWL

DOG W/ROLLER & STUD, trip

1шт.

37

V680

SPRING

trip dog

1шт.

38

666754R1

WASHER

RETAINER, drive gear

1шт.

668787R1

SCREW,Hex Soc Hd, 1/4"-20 x 1/2"

1/4 x 1/2 nylock hex-soc-hd

4шт.

39

664820R1

WASHER

drive gear (or as required)

2шт.

40

667826R1

BUSHING

knotter drive gear RH

1шт.

41

(Not serviced separately), order reference 42

1шт.

42

667825R11

GEAR W/BUSHINGS, knotter drive, 37 501G thru 6078K, 47501G thru 6213K

1шт.

42

669642R11

GEAR W/BUSHINGS, knotter drive, 37 6079K up, 476214K, up

1шт.

43

667824R1

BUSHING

knotter shaft

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

44

(Not serviced separately), order reference 45

1шт.

45

669643R11

PIVOT

SUPPORT W/BUSHING, knotter & gear insert, 376079K up, 476214K up

1шт.

45

667822R91

SUPPORT W/BUSHING, knotter and gear insert, 37501G thru 6078K, 47501G thru 6213K

1шт.

46

16964R91

FITTING

1/4-28 90 deg lub, replaces 274510

1шт.

47

667821R1

SPACER, knotter shaft right, 37501G thru 6078K, 47501G thru 6213K

1шт.

48

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 PTF str self tapping lub

6шт.

49

11309N

SPACER

knotter cover, for 47 Baler

2шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4-20 x 5/8 cd-pltd hex-hd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

2шт.

50

667784R91

NO LONGER SERVICED

COVER, knotter, for 47 Baler

1шт.

51

667787R1

SPRING

knotter cover, for 47 Baler

1шт.

110638

RIVET

button hd 3/16 x 5/16

2шт.

52

668416R1

GEAR

helical driven cord holder

2шт.

52

668978R1

GEAR

cord holder helical driven, long wear part

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 cd-pltd hex.

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 cd-pltd hex. jam

2шт.

53

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

54

666517R92

HOOK

JAW, knotter cpt.

2шт.

55

668961R21

KNIFE

ASSY, twine, long wear part, optional w/495463R4

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 cd or zn-pltd hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

56

668962R1

KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk

BLADE, twine knife, long wear part

2шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 C-Z pan-hd-slt mach

2шт.

57

(Not serviced separately), order 668961R21

1шт.

58

668972R1

SPACER, knotter cam left, long wear part

1шт.

59

495619R95

DISC

HOLDER ASSY, cord

2шт.

59

668964R92

HOLDER

ASSY, cord, long wear part

2шт.

60

668965R1

HUB

cord holder, long wear part

2шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

61

672524R2

DISC

DISK, cord holder rear, replaces 495446R2, for service replacement of 495446R2 order 672524R2, 668965R1, 668967R1, 17064R1 and six, 110532

2шт.

61

668966R2

DISC

DISK, cord holder rear, long wear part

2шт.

62

668967R1

RETAINER

SPACER, cord holder, long wear part

2шт.

63

495462R3

DISC

DISK, cord holder front

2шт.

63

668968R2

DISC

DISK, cord holder front, long wear part

2шт.

110532

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

12шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

2шт.

64

495475R3

HALF BLADE

CLEANER, cord holder

2шт.

64

668969R2

CLEANER ASSY.

CLEANER, cord, long wear part

2шт.

65

667588R1

DISC

SHIM, knotter to cam fit up (or as required)

2шт.

66

(Not used)

1шт.

67

(Not used)

1шт.

68

666515R1

PIN

knotter hook jaw

2шт.

Q3476

WASHER

37/64 x 15/16 x 24 ga C-Z

2шт.
