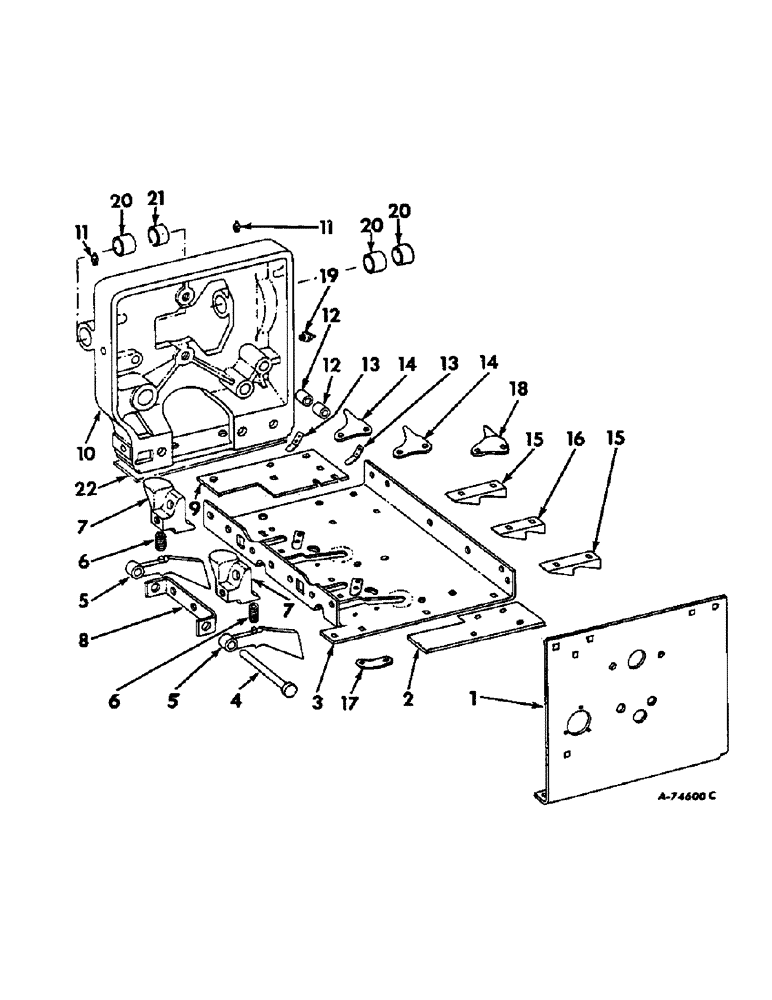

Запчасти Case IH 47 (B-31) - KNOTTER DRIVE FRAME AND BREAST PLATE, FOR TWINE BALER

1

667809R1

SUPPORT, knotter shaft bearing

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

2шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

pl. 3/8 x 1-1/2

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

662149R1

FILLER, breast plate L.

1шт.

3

667779R31

PLATE

breast cpt.

1шт.

4

665078R1

PIN,1/2" x 9 1/4"

hay retainer pivot

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

662007R2

RETAINER

hay

2шт.

6

668869R1

SPRING

ANCHOR, knotter

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow 3/8 x 1

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach 3/8 x 1

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

2шт.

7

662009R3

ANCHOR

1шт.

8

662146R1

BRACKET

hay retainer pivot upper

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach 3/8 x 1-1/4

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach 3/8 x 1

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

667780R2

STRIP, filler breast plate RH

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow 3/8 x 1

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

667810R11

NO LONGER SERVICED

FRAME W/BUSHINGS, knotter drive

1шт.

17552R1

BOLT, mach. 5/8 x 2-1/4

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8 x 2-1/2 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

mach. 3/8 x 1-1/2

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

12

667811R1

BUSHING

trip arm stud

2шт.

13

662112R1

SPRING

twine retainer

2шт.

112620

RIVET

csk-hd 1/4 x 7/16

4шт.

14995R1

BOLT

CGE. 3/8 x 3/4

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow 3/8 x 1

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

14

495412R71

NO LONGER SERVICED

FINGER W/RIVETS, breast plate

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.

104166

SCREW

RIVET, csk hd 1/4 x 5/8

4шт.

15

495929R2

WEDGE

hay retainer narrow

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, cge. 3/8 x 1

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

495930R1

WEDGE

hay retainer wide

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

17

668974R1

REINFORCEMENT

STRIP, base plate wear, see Note A

2шт.

113225

RIVET,Csk, 3/16" x 9/16"

3/16 x 9/16 90 deg csk-hd

4шт.

18

668975R12

GUIDE

FINGER ASSY, breast plate, see Note A

2шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

2шт.

104168

RIVET,Csk, 1/4" x 7/8"

4шт.

19

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap lub

1шт.
