Запчасти Case IH 47 (B-18) - PICKUP WHEEL, RUBBER, WHEN ORDERED

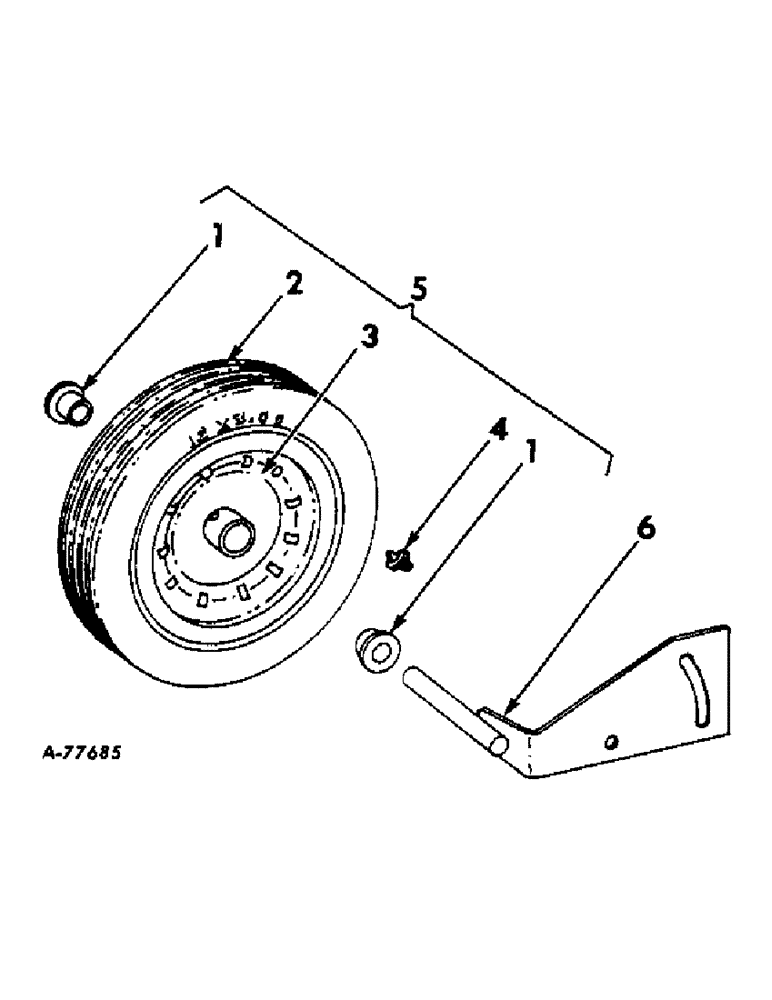

Схема запчастей Case IH 47 - (B-18) - PICKUP WHEEL, RUBBER, WHEN ORDERED

Артикул

Название

Примечание

Количество

1

669006R1

BUSHING

BEARING, pickup wheel

2шт.

2

669005R1

TYRE/TIRE

TIRE, semi-pneumatic pickup wheel

1шт.

3

669004R91

WHEEL

ASSY, pickup

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, .191 str drive type lub, above fitting used w/Ohio Rubber Co. and Geneva Wheel Co. only

1шт.

4

20691R1

FITTING,3/16" x .47" lg, Drive

.191 str drive type lub, above fitting used w/Dico Co. wheel only

1шт.

5

669003R91

WHEEL

W/TIRE ASSY, pickup

1шт.

6

669020R91

BRACKET ASSY, pickup wheel

1шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/16 x 1-1/2 x 10 ga

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 CDP hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 g

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga.

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

Выбрано товаров: 13
