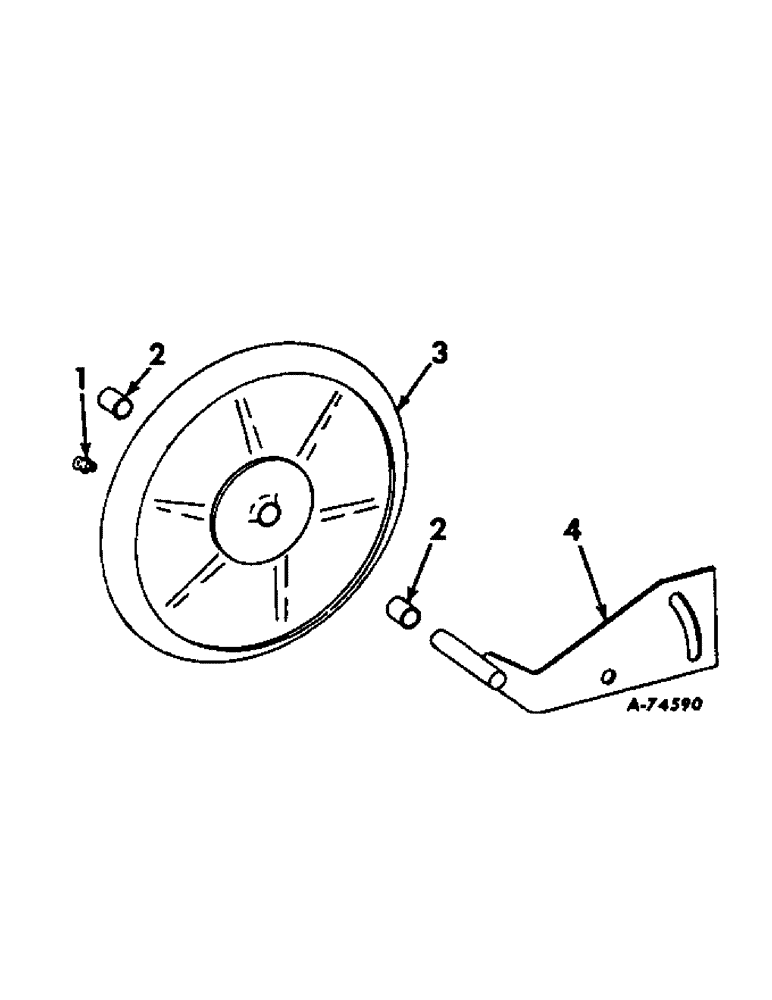

Запчасти Case IH 47 (B-17[A]) - PICKUP WHEEL STEEL, WHEN ORDERED

1

274508

LUBE NIPPLE

FITTING, 1/4-28NS 45 deg angle lub

1шт.

2

659918R1

BUSHING

pickup wheel

2шт.

3

659917R91

WHEEL, pickup

1шт.

4

667723R91

BRACKET ASSY, pickup wheel

1шт.

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x 10 ga

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 CDP hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.
