Запчасти Case IH 47 (B-15) - PICKUP CYLINDER AND DRIVE

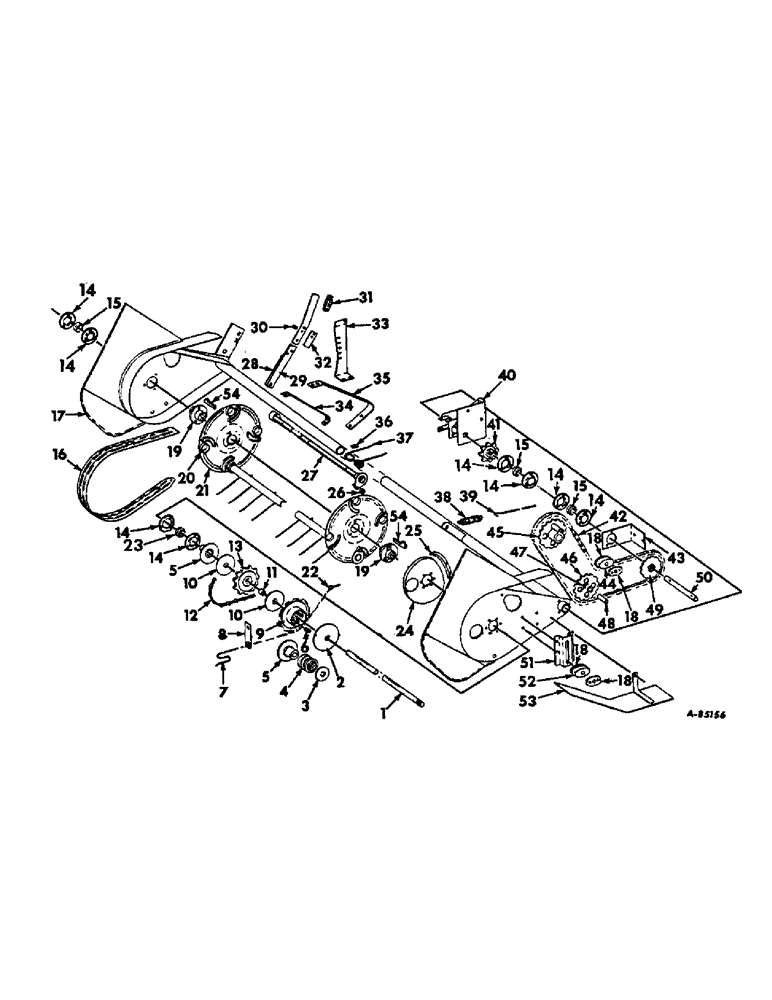

Схема запчастей Case IH 47 - (B-15) - PICKUP CYLINDER AND DRIVE

Артикул

Название

Примечание

Количество

1

662074R1

SHAFT

pickup cylinder drive

1шт.

427651

SLOTTED NUT,1"-14, G5

NUT, sl. 1 NF

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

Q114

WASHER

1-1/32 x 1-7/16 x 18 ga, (or as req)

3шт.

551855R1

WASHER

1-1/32 x 1-1/4 x 16 ga, (or as req)

1шт.

2

667712R1

WASHER, slip clutch retainer, used 47 Balers

1шт.

3

662356R1

DISC

WASHER, slip clutch retainer, used 37 Balers

1шт.

4

U13661

VALVE SPRING

SPRING, pickup slip clutch, used 37 Balers

1шт.

5

662026R2

HUB

pickup slip clutch, 1 used 37 Balers, 2 used 47 Balers

1шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, , 1 used 47 Balers, 2 used 37 Balers 5/16" x 1 5/8", Slotted

1шт.

6

T576M

SPRING

pickup slip clutch, 4 used 47 Balers

1шт.

7

ROPE, pickup lift, for 47 Baler, purchase locally, 3/8 in. x 20 ft. nylon rope

1шт.

8

667719R11

GUIDE, pickup lift rope, 2 for 47 Baler

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short-sq-nk crg

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

667711R1

HUB, pickup lift, used 47 Balers

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

used 47 Balers 5/16" x 2", Slotted

1шт.

10

662291R1

LINING

FACING, pickup drive clutch

2шт.

11

662079R1

BUSHING

pickup slip clutch sprocket

1шт.

12

CA320

SPARE PART

CHAIN, pickup drive, 28 links #55 steel chain

1шт.

13

662023R1

DRIVE SPROCKET

SPROCKET, pickup slip clutch

1шт.

14

671682R1

NO LONGER SERVICED

FLANGE, pickup cylinder bearing

8шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

9шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

12шт.

15

671681R91

BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W

pickup cylinder

3шт.

16

662316R1

STRIPPER

pickup

11шт.

14993R1

BOLT, cge, 1/4 x 3/4

22шт.

14985R1

BOLT

cge, 1/4 x 1/2

22шт.

109084

NUT,1/4"-20, G5

44шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

44шт.

17

668979R91

CYLINDER ASSY, pickup, consists of ref. Nos.1, 2, 5, 6, 9, 10, 11, 13, 15, 16, 17, 19, 20, 21, 23, 24, 25, 26, 27, 34, 35, 36, 37, 51, 54

1шт.

17

667701R91

FRAME, pickup, cpt.

1шт.

137333

PIN, cotter, plated, 5/16 x 3

2шт.

18

673666R1

CAP

block tightener end, for 37 Baler serial No. 11058M up, for 47 Baler serial No. 14214M up

1шт.

15128R1

BOLT,Sq Nk, 5/8" - 11 x 2 3/4"

5/8-11 x 2-3/4 sq-nk crg

1шт.

15162R1

BOLT, 5/8 x 3-1/4 crg

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

Q1560

WASHER, 31/32 x 1-1/2 x 9 ga

2шт.

19

659942R1

HUB

pickup cylinder driving

2шт.

VC4941/2

PIN, 5/16 x 2 std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

20

659437R1

BUSHING

pickup cylinder end

8шт.

21

667705R11

END

W/BUSHING, pickup cylinder

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

mach. 5/16 x 1

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

667720R1

EYEBOLT, pickup lift, for 47 Baler

1шт.

109084

NUT,1/4"-20, G5

2шт.

23

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

pickup cylinder drive side, (replaces 671681R91, 155264R91)

1шт.

24

662317R2

CAM

pickup tooth control

1шт.

25

662318R11

GUIDE

tooth bar roller

1шт.

114662

SCREW

fl. hd. sl. 5/16 x 5/8

1шт.

114617

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER, ctsk ex tooth lock 5/16

1шт.

26

ST543

BALL BEARING,15mm ID x 35mm OD x 11mm W

BEARING, pickup cylinder tine control

4шт.

Q366

WASHER

2-1/16 x 2-5/16 x 16 ga., (or as required)

16шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

4шт.

27

495279R93

CARRIER

BAR, pickup tooth

4шт.

28

662417R1

ARM, pickup floating lever R.

1шт.

29

662415R91

LEVER

pickup, cpt.

1шт.

104099

RIVET,But Hd, 5/16" x 1"

rd. hd. hd. 5/17 x 1

2шт.

663922R1

PIN,5/8" x 1 3/8"

std. hd. cd. pl. 5/8 x 1-3/8

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, cotter, 3/8 x 1-1/4

1шт.

30

18489D

SPRING

pickup lever clip

1шт.

U5353

DOWEL

PIN, std. hd. 5/16 x 2-3/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga.

1шт.

31

666930R1

GRIP, pickup lever, used on 47 Baler

1шт.

32

662506R1

CLIP

pickup lever

1шт.

33

662419R1

QUADRANT, pickup lever

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

128144

WASHER, 3/8 x 1-1/8 x .065

1шт.

34

662314R1

BRACE

pickup stripper

11шт.

17574R1

BOLT (SPREADER)

BOLT, mach. 3/8 x 2-1/2

11шт.

102635

NUT,3/8"-16, G5

11шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

35

662315R1

SUPPORT

pickup stripper

11шт.

36

27513K

CUP WASHER

WASHER, pickup cylinder spring tooth

24шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

24шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

24шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

37

MA74528

SPRING

pickup tooth

24шт.

38

MA731

SPRING

pickup balance

1шт.

39

665580R1

BOLT, balance spring

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

40

667714R91

BRACKET, pickup drive shaft pivot right

1шт.

17427R1

BOLT, 7/16-14 x 1 hex-hd mach

1шт.

17447R1

BOLT

7/16-14 x 1-1/4 hex-hd mach

3шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

21933K

WASHER, 15/32 x 13/16 x 16 ga

4шт.

41

662024R1

SPROCKET

pickup pivot drive shaft

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

42

CHAIN, main drive pickup, use 85 links of 1-1/4 extended pitch agricultural transmission roller chain from a 10 ft roll marked, 569089R91, 1 connecting link, 456980R91 and one offset link 456929R91

1шт.

43

667717R1

BRACKET

pickup pivot drive shaft left

1шт.

17427R1

BOLT, 7/16-14 x 1 hex-hd mach

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

44

667459R1

BLOCK

tightener

1шт.

45

662025R1

DRIVE SPROCKET

SPROCKET, pickup drive

1шт.

17648R1

BOLT, 3/8-16 x 3-1/4 hex-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

46

662575R1

GEAR

IDLER, main drive front

1шт.

47

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

48

668568R1

BUSHING

pickup idler sprocket

1шт.

17629R1

BOLT,Hex, 5/8" - 11 x 3"

5/8-11 x 3 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

1шт.

49

662003R1

SPROCKET

pickup pivot driver

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

50

667713R1

SHAFT

pickup pivot drive

1шт.

551855R1

WASHER

1-1/32 x 1-1/4 x 16 ga

1шт.

51

667718R1

BRACKET

pickup idler

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

52

668147R1

BLOCK

tightener

1шт.

53

662297R91

SHIELD

ASSY, pickup drive

1шт.

19416R1

BOLT

5/16 x 3/4 CDP sq-nk crg

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

19420R1

BOLT, 7/16 x 3/4 CDP hex-hd

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

54

Q3931

KEY,Gib, 5/16" Sq x 1 7/8"

5/16 x 1-7/8 tapered gib

2шт.

Выбрано товаров: 134
