Запчасти Case IH 47 (B-14) - AUGER AND AUGER DRIVE SUPPORT

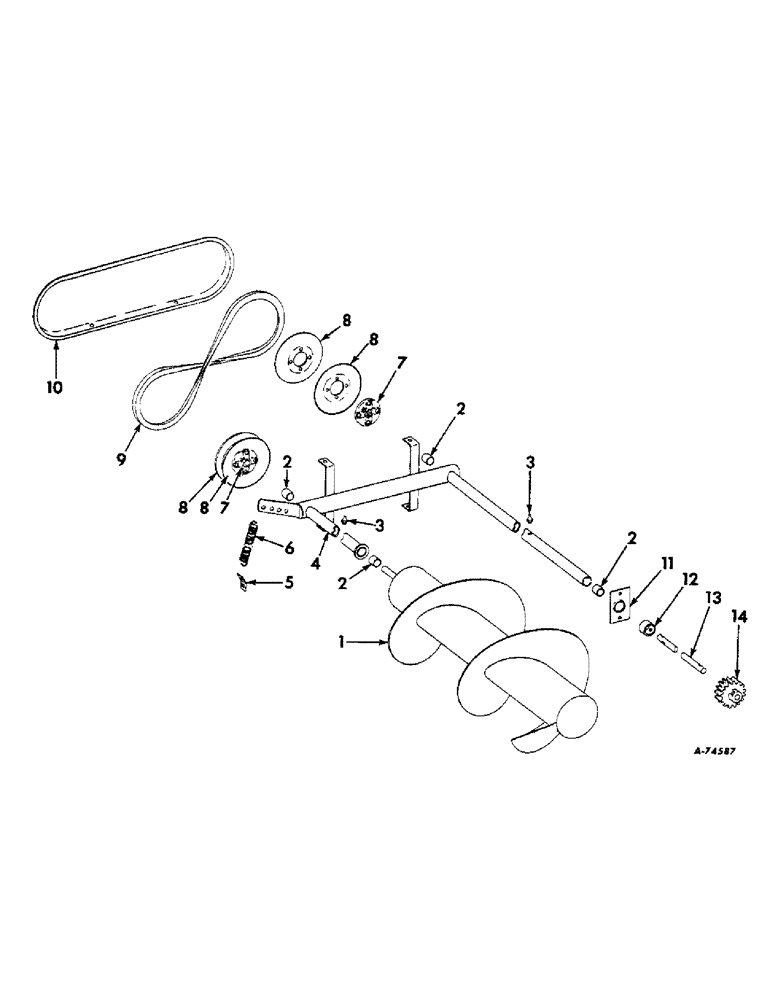

Схема запчастей Case IH 47 - (B-14) - AUGER AND AUGER DRIVE SUPPORT

Артикул

Название

Примечание

Количество

1

662176R91

AUGER

cpt.

1шт.

Q3648

PIPE

29/32 x 2 x 16 ga.

1шт.

2

495290R1

BUSHING

auger core & drive shaft

4шт.

Q3836

WASHER

1-11/32 x 2 x 11 ga.

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, lub. 1/4-28 self tapping

2шт.

4

662172R92

SUPPORT & RELIEF, auger cpt.

1шт.

5

662387R1

ANCHOR

auger relief spring

1шт.

Q2780

WASHER

pl. 29/32 x 1-11/32 x 20 ga. (or as required)

4шт.

6

450398R2

VALVE SPRING

SPRING, auger relief

1шт.

7

495170R2

HUB CAP

HUB SHEAVE V

2шт.

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

2шт.

8

495480R1

PULLEY

SHEAVE, auger drive

4шт.

17470R1

BOLT

mach. 5/16 x 1-1/2

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

32шт.

9

662213R1

V-BELT,0.88" W

Auger drive 0.88" W

1шт.

10

662258R21

SHIELD W/PRODUCT GRAPHIC, auger belt

1шт.

19419R1

BOLT, mach. cad. pl. 5/16 x 1/2

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

495473R1

BRACKET

BEARING, auger relief R.

1шт.

14995R1

BOLT

cge. 3/8 x 3/4

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

667774R1

COLLAR

auger relief pipe set

1шт.

102872

SET SCREW

sq. hd set cup point 1/4 x 3/4

1шт.

109084

NUT,1/4"-20, G5

1шт.

13

667775R1

SHAFT, auger drive

1шт.

14

667776R1

PINION, auger drive

1шт.

NLS

NO LONGER SERVICED

Pin, Grooved, 5/16" x 1 3/4", Type A

1шт.

VC649

WASHER

29/32 x 1-3/4 x 16 ga (or as required)

1шт.

Выбрано товаров: 31
