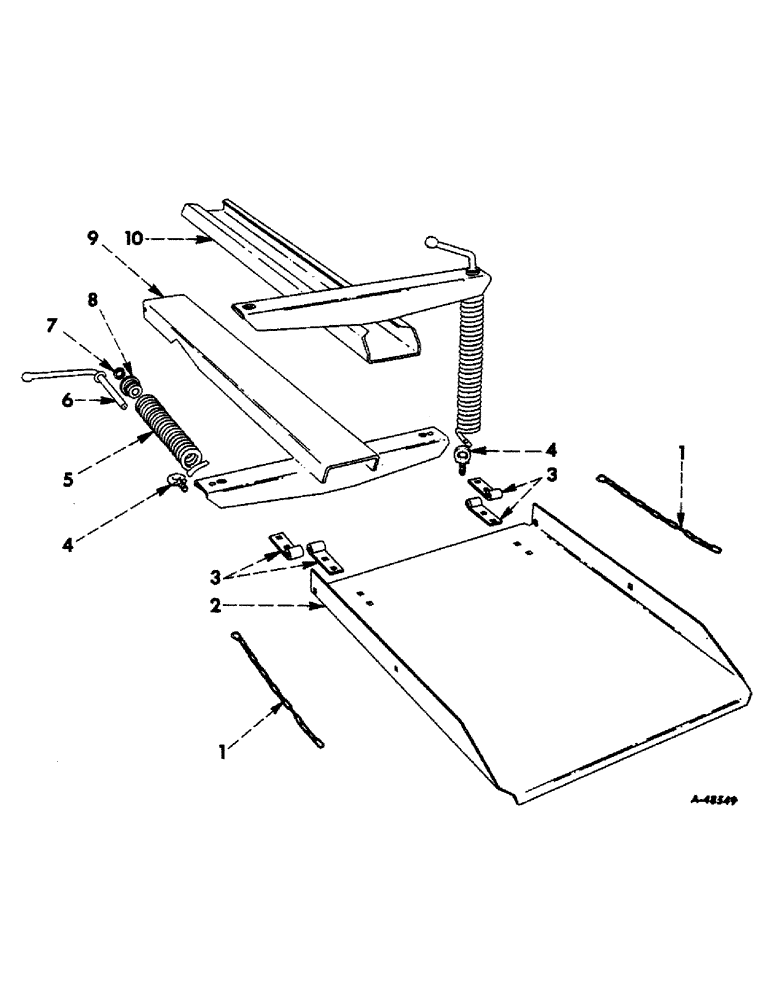

Запчасти Case IH 46 (13) - BALE CHAMBER EXTENSION AND TENSION DEVICE

1

495526R1

CHAIN (AG)

CHAIN, holdup, bale chamber extension (16 links)

2шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

carriage 5/16-18NC x 1-1/4"

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8-16NC x 1-1/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

657803R1

NUT, wing, 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q397

WASHER

plain, 11/32" ID x 3/4" OD x no. 16 ga.

4шт.

Q1505

WASHER

plain, 13/32" ID x 1" OD x no. 16 ga.

4шт.

2

662110R1

EXTENSION, bale chamber

1шт.

3

662133R1

SPRING, LEAF

STRAP, hinge, bale chamber

4шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

8шт.

102635

NUT,3/8"-16, G5

8шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q3538

PIN, std-hd., 3/8 x 4-3/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

2шт.

4

26489B

EYEBOLT, spring anchor

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16038R1

WASHER

plain, 17/32" ID x1" OD x no. 11 ga.

2шт.

5

662384R1

SPRING

tension, bale chamber

2шт.

6

662385R11

SCREW, adjusting, tension (Welded assembly)

2шт.

12258R1

WASHER

plain, 21/32" ID x 1-1/4" OD x no. 11 ga.

2шт.

7

656934R1

BUSHING

PILOT, tension adjusting screw, upper

2шт.

8

662028R1

PLUG

bale chamber tension spring

2шт.

9

662367R91

CHANNEL, tension, lower (Welded assembly)

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

1шт.

Q625

PIN, std-hd., 1/2 x 5-7/8"

1шт.

10

662377R91

CHANNEL, tension, upper (Welded assembly)

1шт.
