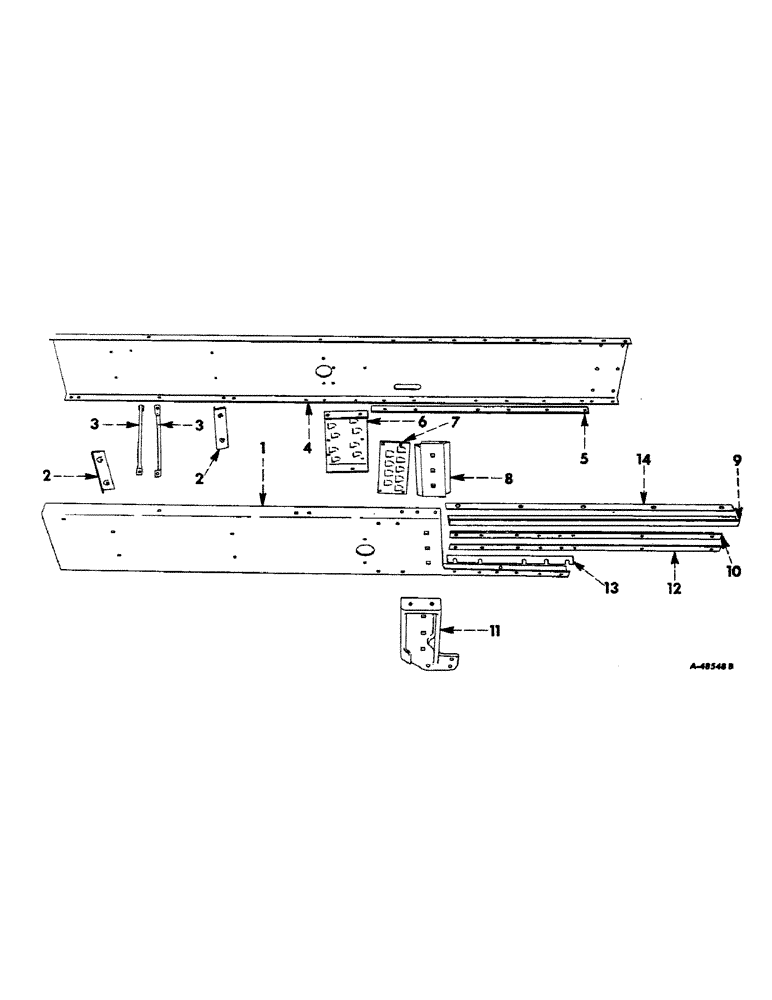

Запчасти Case IH 46 (11) - BALE CHAMBER SIDES

1

662157R2

SIDE, bale chamber, right rear

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

plow, 3/8-16 NC x 1-1/2"

3шт.

15598R1

BOLT,3/8"-16 x 1 3/4", G2

plow, 3/8-16NC x 1-3/4"

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

5179PA

WEDGE

BLOCK, wedge

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

3

662396R1

ROD

tie, bale chamber

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

662156R2

SIDE, bale chamber, left

1шт.

5

662116R1

RUNNER

bottom plate, left

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

4шт.

15598R1

BOLT,3/8"-16 x 1 3/4", G2

plow, 3/8-16NC x 1-3/4"

2шт.

102635

NUT,3/8"-16, G5

4шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16NC (Special)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

662215R3

RETAINING PLATE

PLATE, retainer, hay, left

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

6шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

1шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

662294R3

PLATE

retainer, hay, right

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

662119R2

BLADE

KNIFE, hay

1шт.

15606R1

PLOW BOLT,#3, 5/8" - 11 x 1 3/4", Gr 2

BOLT, plow, 5/8-11NC x 1-3/4" (Repair head)

3шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

662127R1

ANGLE

plunger guide, lower

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

1шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

3шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

662115R1

SPACER, thrust, plunger, lower

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

2шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

5шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

plow, 3/8-16NC x 1-1/2"

1шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

662005R1

BRACKET

squaring, bale chamber

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

mach., hex-hd., 5/8-11NC x 1-3/4"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

137352

SCREW, truss-hd., slotted, 1/4-20NC x 5/8"

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

114607

LOCK, Ext Tooth, 7/16"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x no. .065

3шт.

12

663086R1

FILLER, plunger thrust spacer, lower

1шт.

13

664542R1

SHIM

plunger thrust spacer

1шт.

14

663111R1

SHIM, plunger guide angle

1шт.
