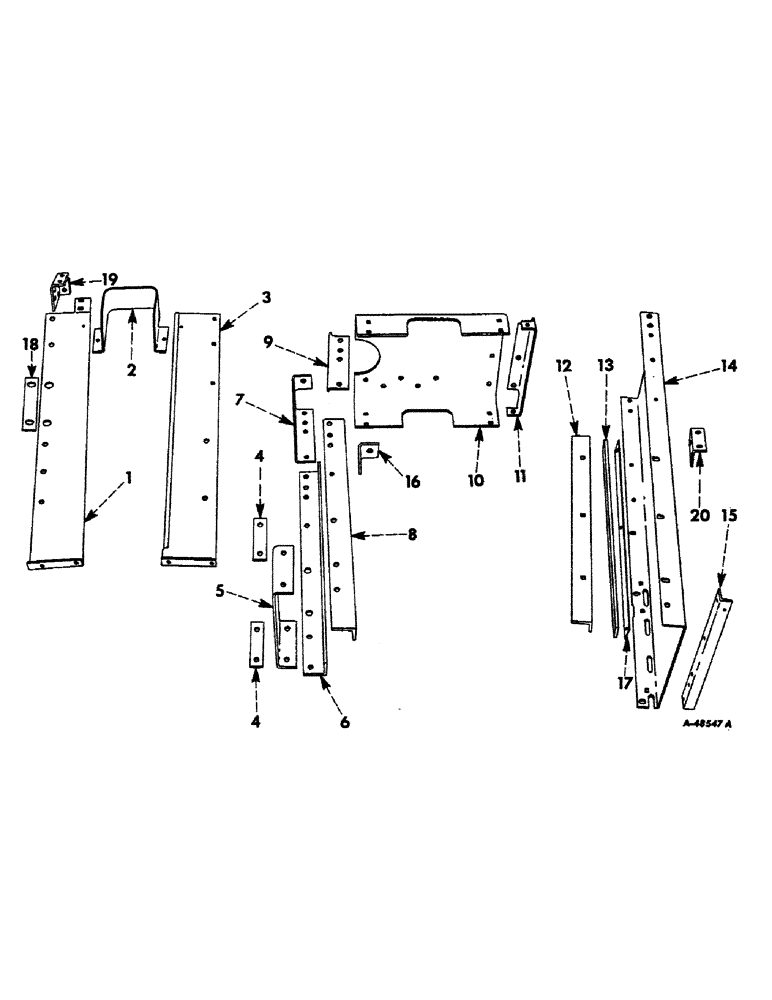

Запчасти Case IH 46 (09) - BALE CHAMBER FRONT COVERS, RIGHT FRONT SIDE AND GRILLES

1

662212R1

COVER, front bale chamber, left

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16NC x 1"

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

2шт.

102635

NUT,3/8"-16, G5

4шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14NC (Special)

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

662235R1

SHIELD, safety, crank

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

mach., hex-hd., 5/16-18NC x 1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

662534R1

COVER, front bale chamber, right

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

mach., hex-hd., 7/16-14NC x 3/4"

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

2шт.

102635

NUT,3/8"-16, G5

3шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

4

662101R1

SPACER, gear box support angle

2шт.

5

662142R1

BRACE, gear box support

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

mach., hex-hd., 3/8-16NC x 7/8"

5шт.

102635

NUT,3/8"-16, G5

5шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14NC (Special)

4шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

6

662125R1

ANGLE, gear box support, lower

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14NC (Special)

2шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

662106R1

CABLE EXTENSION

GRILLE, bale chamber, lower left

1шт.

8

662124R1

ANGLE, gear box support, upper

1шт.

9

662105R1

GRILLE, bale chamber, upper left

1шт.

10

662118R1

GRILLE, bale chamber, center

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

7шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, carriage, 7/16-14NC x 1-1/4"

2шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

15055R1

BOLT, carriage, 7/16-14NC x 1-3/4"

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, carriage, 1/2-13NC x 1-3/4"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

11шт.

102637

NUT,1/2"-13, G5

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

11шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

11

662107R1

GRILLE, bale chamber, right

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

662126R1

ANGLE

plunger guide, upper

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

662114R1

SPACER, thrust, plunger, upper

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

plow, 3/8-16NC x 1"

2шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

3шт.

102635

NUT,3/8"-16, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

14

662158R91

SIDE, bale chamber, right front (Welded assembly)

1шт.

15

662128R1

ANGLE, feed opening support

1шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16

662626R1

STRAP, tie, transmission gusset

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13NC x 1-1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

663087R1

FILLER, plunger thrust spacer lower

1шт.

18

664602R1

SPACER, transmission, upper

1шт.

19

664604R1

STRAP, transmission gusset tie, upper left

1шт.

20

664603R1

ANGLE, bale chamber upper tie, right

1шт.

17427R1

BOLT, machine, hex-hd., 7/16-14NC x 1"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
