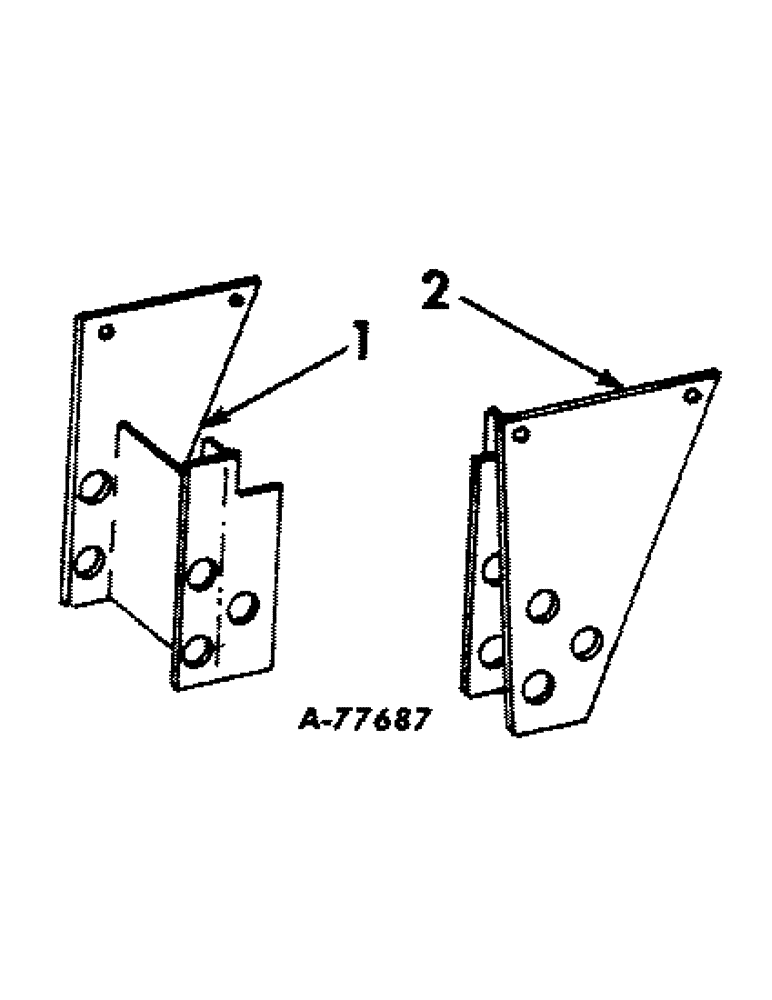

Запчасти Case IH 46 (89) - HIGH CLEARANCE ATTACHMENT, WHEN ORDERED

1

668862R91

BRACKET ASSY, right auxiliary axle

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, lock, cd or zn-pltd., 7/16"

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, lock, cd-pltd., 1/2"

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

cap, hex-hd, cd or zn-pltd., 7/16 x 1-1/4"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, cap, hex-hd, cd or zn-pltd., 1/2 x 1-1/2"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

668857R91

BRACKET ASSY, left auxiliary axle

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, lock, cd or zn-pltd, 7/16"

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, lock, cd-pltd, 1/2"

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

cap, hex-hd, cd or zn-pltd., 7/16 x 1-1/4"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, cap, hex-hd, cd or zn-pltd., 1/2 x 1-1/2"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
