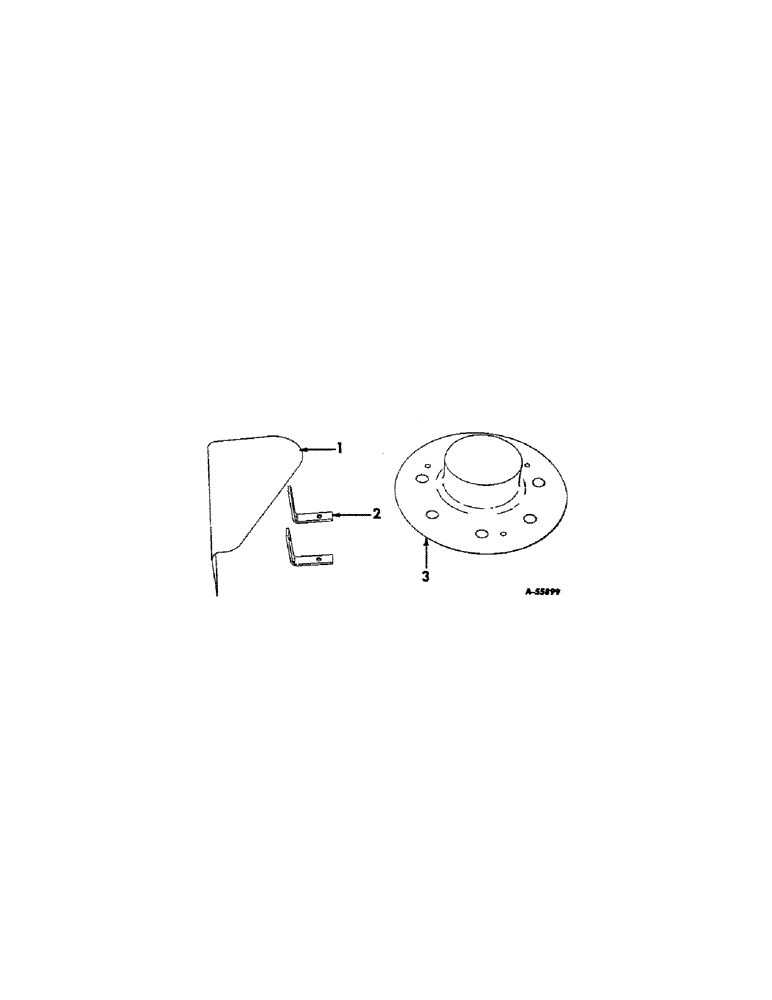

Запчасти Case IH 46 (88[B]) - FLYWHEEL AND BELT SHIELD, SPECIAL, FOR ENGINE DRIVE BALERS

663661R92

FLYWHEEL AND BELT SHIELD ATTACHMENT (For engine drive balers)

1шт.

1

11931P

SHIELD, belt

1шт.

14995R1

BOLT

mach., hex-hd., 3/8-16NC x 3/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

663663R1

BRACKET, shield support

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

mach., hex-hd., 3/8-16NC x 1"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

663662R2

SHIELD, flywheel

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

mach., hex-hd., 3/8-16NC x 3/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
