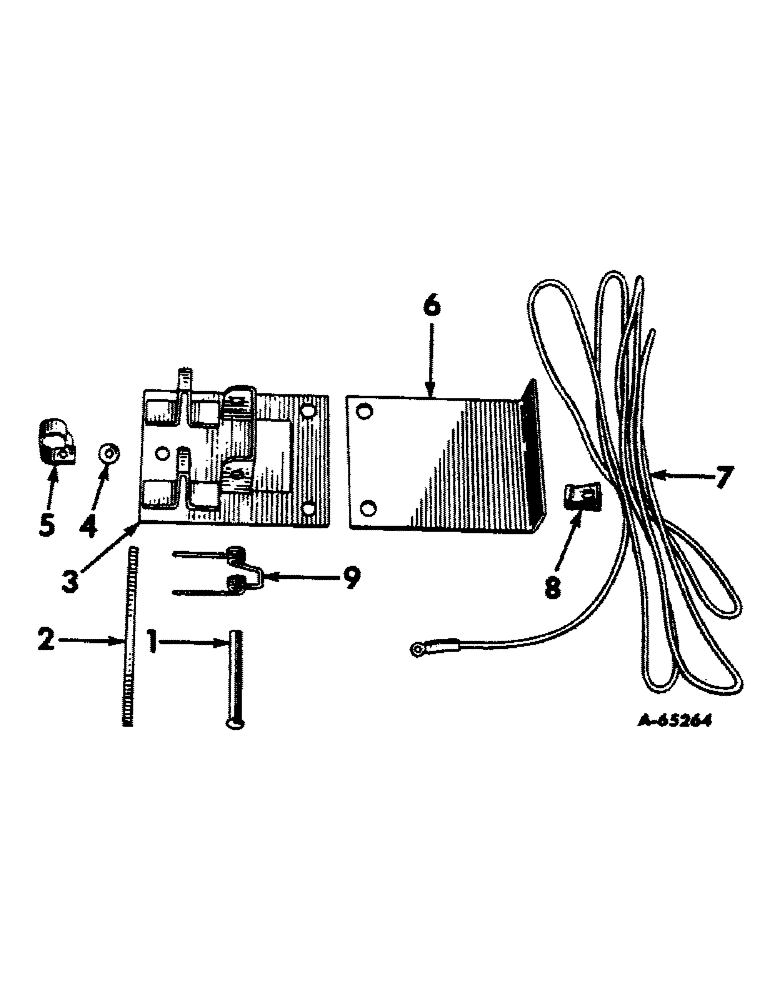

Запчасти Case IH 46 (86) - ENGINE SHUT-OFF DEVICE ATTACHMENT, SPECIAL, FOR NO. 46-W BALER

659241R93

ENGINE SHUT-OFF DEVICE ATTACHMENT, Consists of all the parts listed below

1шт.

1

Q530

HEADED PIN,7.92mm OD x 63.5mm L

PIN, straight, 5/16 x 1"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

659235R1

ACTUATOR, engine shut- off

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

slotted-hd., cd-pltd., no. 10-32 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

plain, 7/32" ID x 1/2" OD x no. 18 ga.

1шт.

3

659229R91

BASE, engine shut-off (Welded assembly)

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

mach., hex-hd., 5/16-18NC x 1"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

659236R1

WASHER, engine shut-off spring

2шт.

5

659233R1

SPRING, contact, engine shut-off

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

slotted-hd., cd-pltd., no. 10-32 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

plain, 7/32" ID x 1/2" OD x no. 18 ga.

1шт.

6

665186R1

SUPPORT, engine shut-off

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach., hex-hd., 5/16-18NC x 3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

664547R91

LEAD, assembly

2шт.

8

140568

CLAMP

CLIP, cable

3шт.

9

659234R1

SPRING, engine shut-off actuator

1шт.
