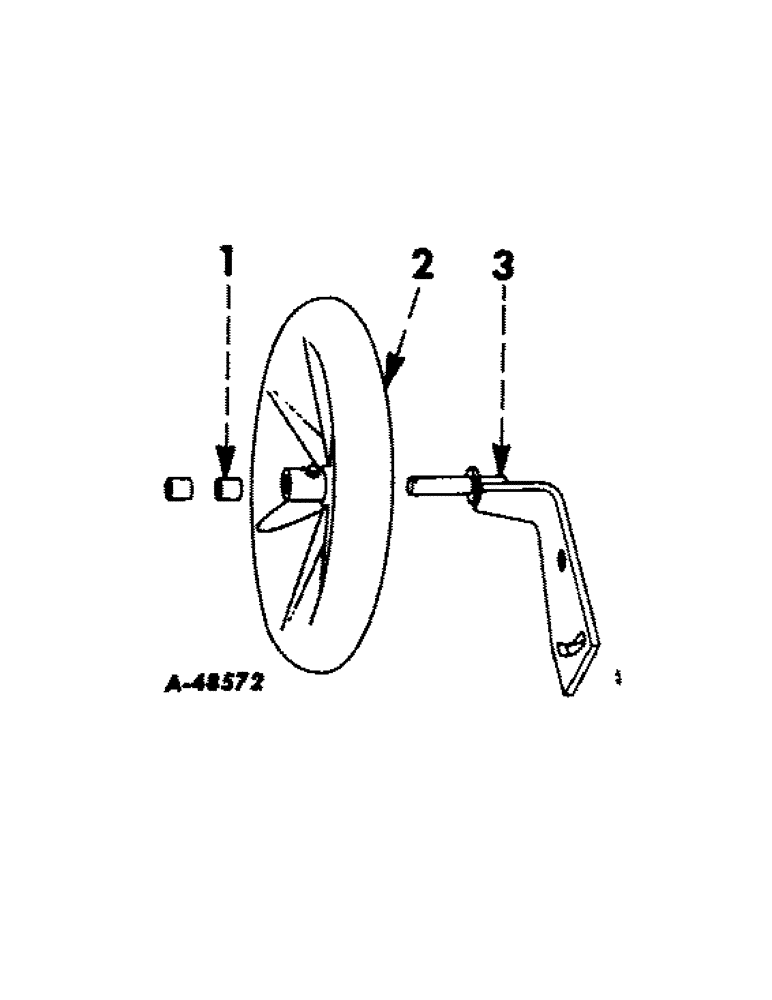

Запчасти Case IH 46 (85) - FLOATING PICKUP WHEEL ATTACHMENT, SPECIAL

662423R92

FLOATING PICKUP WHEEL (Machine attachment), Consists of all the parts listed below

1шт.

1

659918R1

BUSHING

wheel

2шт.

2

659917R91

WHEEL, pickup

1шт.

3

667723R91

BRACKET, pickup wheel (Welded assembly)

1шт.

17427R1

BOLT, mach., hex-hd., 7/16-14NC x 1"

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

plain, 15/32" ID x 1" OD x no. 16 ga.

1шт.

Q3501

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 16 ga.

2шт.
