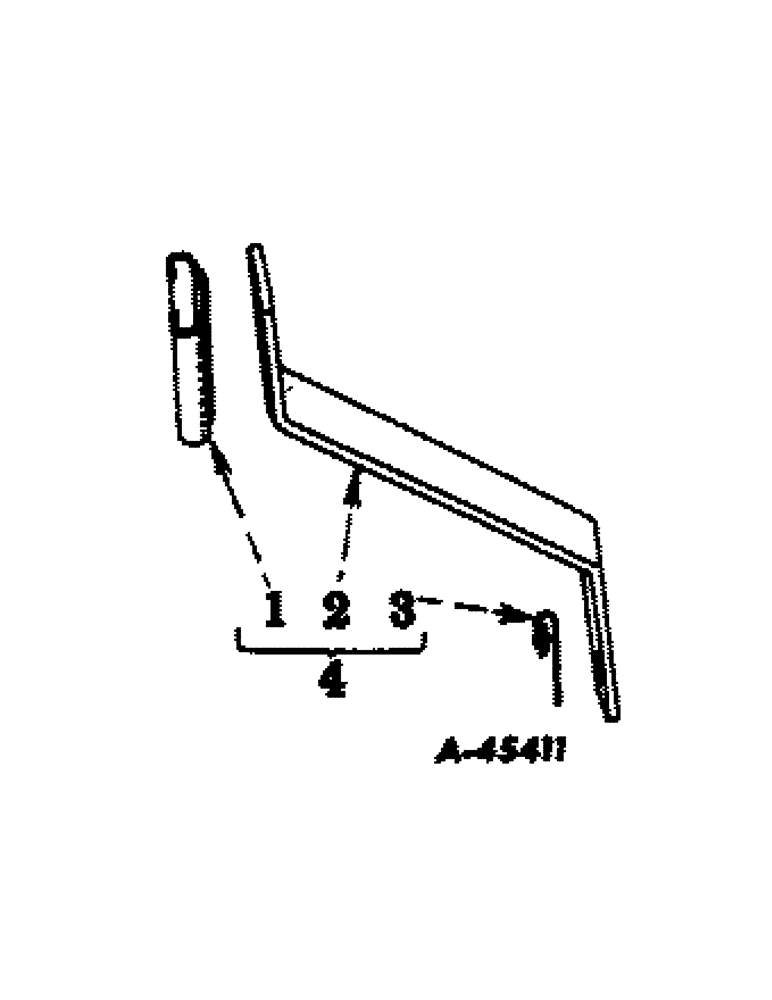

Запчасти Case IH 46 (08) - WARNING LAMP BRACKET AND SOCKET

1

624341R1

SOCKET

lamp

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

plain, 11/32" ID x 3/4" OD x no. 16 ga.

2шт.

2

660510R1

BRACKET, warning lamp

2шт.

14995R1

BOLT

carriage, 3/8-16NC x 3/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

660508R1

CLIP, cable

6шт.

4

660512R91

BRACKET AND SOCKET, warning lamp, w/clips

1шт.

624342R91

REFLECTIVE TAPE PACKAGE (Consists of two 2 x 8" strips of Scotchlight tape, or equivalent)

1шт.
