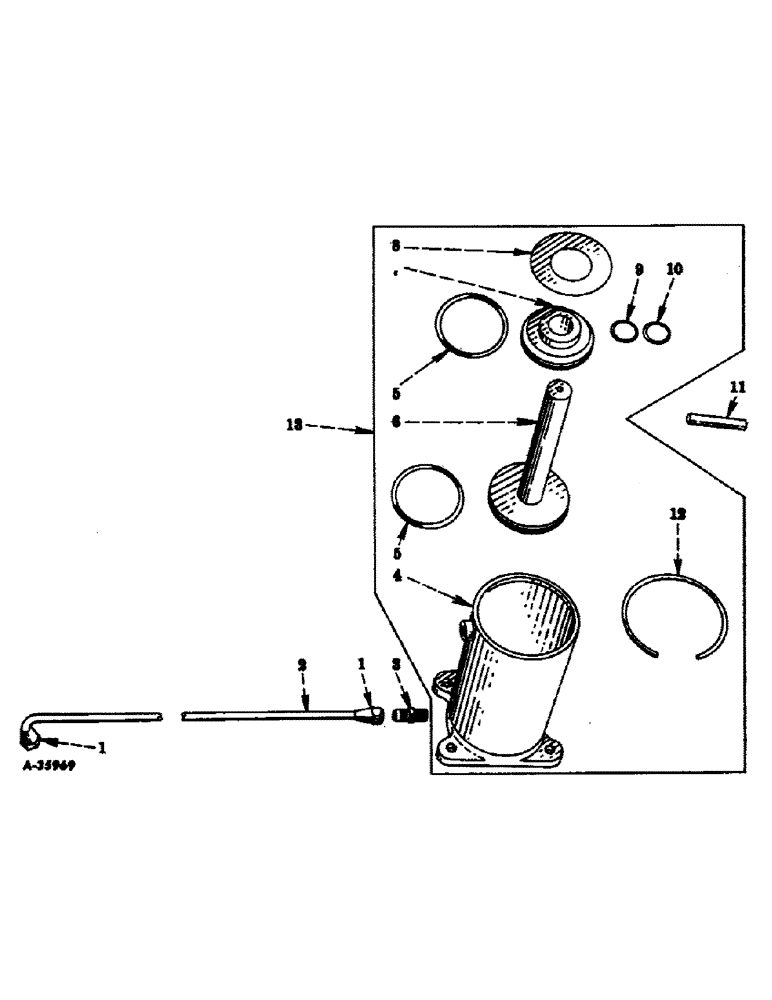

Запчасти Case IH 46 (81) - HYDRAULIC BALE DENSITY CONTROL, HYDRAULIC JACK

1

NLS

NO LONGER SERVICED

tube (On pressure tube)

2шт.

2

662561R11

TUBE, pressure, w/tube nuts

1шт.

3

110200

CONNECTOR, ELEC

ADAPTER, hydraulic jack

1шт.

4

BARREL, hydraulic jack (Welded assembly) (Order 659396R91 jack)

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18NC

4шт.

113916

SCREW

slotted-fil-hd., 5/16-18NC x 1-1/4"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

659557R1

RING

O-RING, piston and bearing

2шт.

6

659551R91

ROD, piston (Welded assembly)

1шт.

7

659555R1

BEARING, piston rod

1шт.

8

659554R1

PLATE

end

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

slotted-rd-hd., no. 10-24 x 1/2"

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

659558R1

O-RING,1.046" ID x 0.139" Width

bearing

1шт.

10

659556R1

WASHER

back-up

1шт.

11

17086R1

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

12

659559R1

RING, lock, hydraulic jack

1шт.

13

963236R91

JACK, hydraulic, assembly

1шт.
